3rd Party Models/Media Chat / [SOLVED] Importing character from 3ds max (question)

Author
Message
Peri
Game Guru Backer
14
Years of Service
User Offline
Joined: 6th Jan 2010
Location:
Profile
Posted: 6th Mar 2020 14:52
Link
Hi guys, for the first time I tried to import a character with animations from 3d max without fbx2gg cause from unknown reason it crash this time

But I discovered I missed something, the key frames not react in gg, I tried to fit the key frames, like in the default combat soldier

But it just play all the animation in loop

what should I do?

Thanks

The author of this post has marked a post as an answer.

Go to answer
PM Email
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 6th Mar 2020 15:08
Link
Did you use a copy of the default combat soldier's FPE file for your new animated character?
That should give you the same animation sequences and allow the script to work out of box.
RIP
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

New:
Intel(R) Core(TM) i5-8400 CPU @ 2.81GHz, 12GB RAM, Nvidia gtx1050ti 4gb, Windows 10 Home 64bit, Screen resolution 1920 x 1080. System Passmark 3774




PM Email
Peri
Game Guru Backer
14
Years of Service
User Offline
Joined: 6th Jan 2010
Location:
Profile
Posted: 6th Mar 2020 15:34
Link
Yes, I just changed the numbers of the key frames, maybe I should do something in the x exporting window of 3d max.
PM Email
Peri
Game Guru Backer
14
Years of Service
User Offline
Joined: 6th Jan 2010
Location:
Profile
Posted: 6th Mar 2020 17:19 Edited at: 6th Mar 2020 17:50
Link

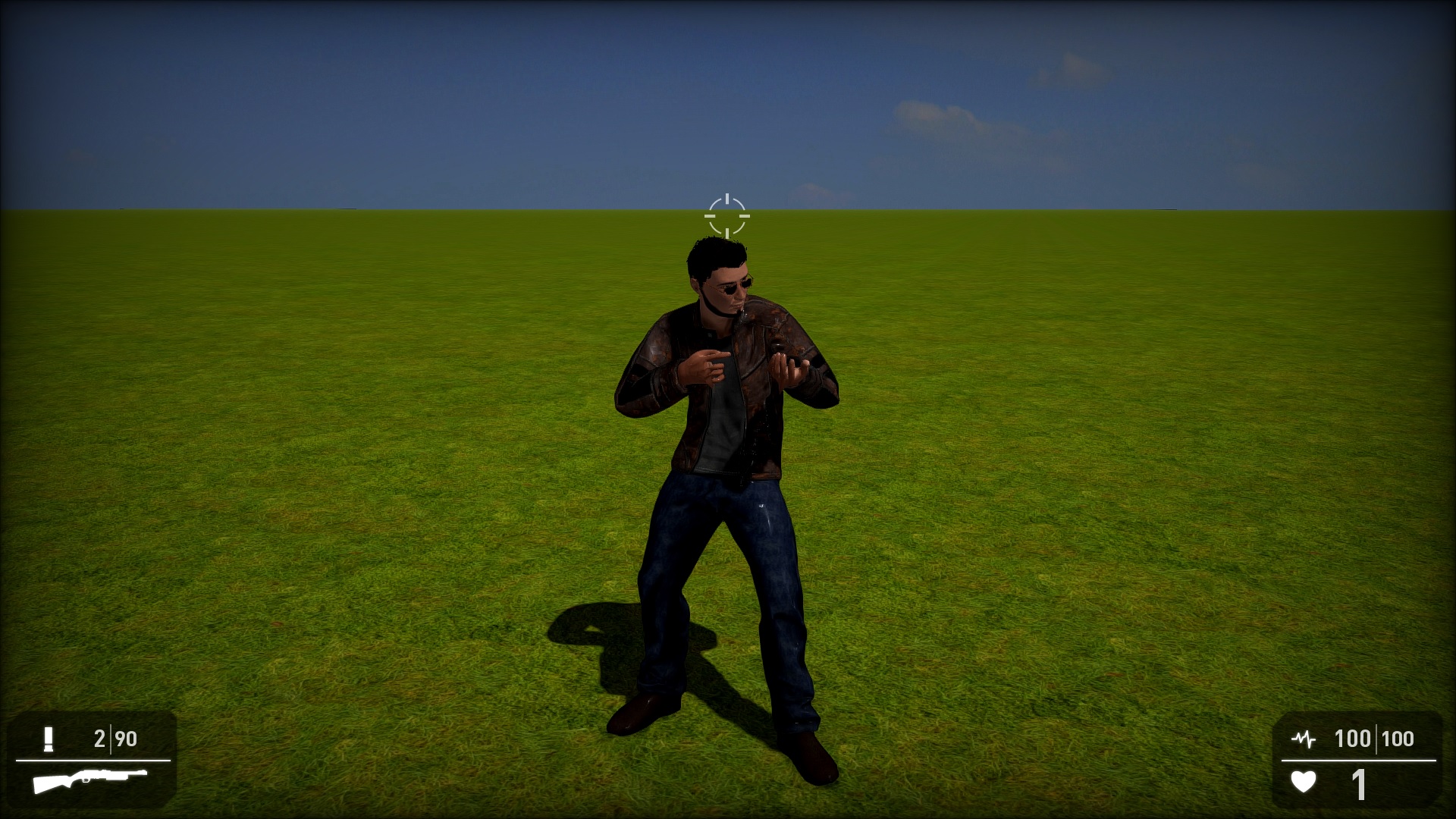

Ok looks like it works with the animation, now I need to check why I can't see gun in his hand, it should to be a shotgun in his hand

Attachments

Login to view attachments
PM Email
osiem80
5
Years of Service
User Offline
Joined: 24th Jan 2019
Location: Poland
Profile
Posted: 10th Mar 2020 00:27
Link
i was trying for weeks to import animated characters.
Did u use own animations 4 the character or the standart from gg ones?
PM
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 10th Mar 2020 06:13 Edited at: 10th Mar 2020 06:14
Link
To see the weapons you have to have a bone for them to attach to, this bone should be a child of the right hand and called FIRESPOT all-in capitals. It will also need to be rotated correctly or the gun will be at the wrong angle. Hint: that also includes the bones roll

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Primary Laptop:
i5, NV1050 4GB, 8GB memory, 1x 1TB HDD, Win10.
Secondary Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
Peri
Game Guru Backer
14
Years of Service
User Offline
Joined: 6th Jan 2010
Location:
Profile
Posted: 11th Mar 2020 19:51
Link
@osiem80 for gg animations try my video


for mixamo animations soon I will make a video.

@Belidos thanks, do you mean its about the name of the bone? if I will add a bone to the hand and call it FIRESPOT it will work?

PM Email
osiem80
5
Years of Service
User Offline
Joined: 24th Jan 2019
Location: Poland
Profile
Posted: 11th Mar 2020 20:13
Link
My problem is custom animations, i cant get them work
PM
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 11th Mar 2020 22:43
Link
This post has been marked by the post author as the answer.
Quote: "@Belidos thanks, do you mean its about the name of the bone? if I will add a bone to the hand and call it FIRESPOT it will work?
"


Yes, weapons attach to the FIRESPOT bone, that's why it's not visible, and probably fires from the chest.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Primary Laptop:
i5, NV1050 4GB, 8GB memory, 1x 1TB HDD, Win10.
Secondary Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
Peri
Game Guru Backer
14
Years of Service
User Offline
Joined: 6th Jan 2010
Location:
Profile
Posted: 12th Mar 2020 11:49
Link
I see Thanks I give it a try
PM Email
Peri
Game Guru Backer
14
Years of Service
User Offline
Joined: 6th Jan 2010
Location:
Profile
Posted: 12th Mar 2020 11:53
Link
@osiem80 what 3d software do you use , do you use the keyframes of the animation from the the timeline of the character in the fpe file right? , pay attention you exporting the x file with animations in the 3d software.
PM Email
Peri
Game Guru Backer
14
Years of Service
User Offline
Joined: 6th Jan 2010
Location:
Profile
Posted: 13th Mar 2020 18:59 Edited at: 13th Mar 2020 19:00
Link

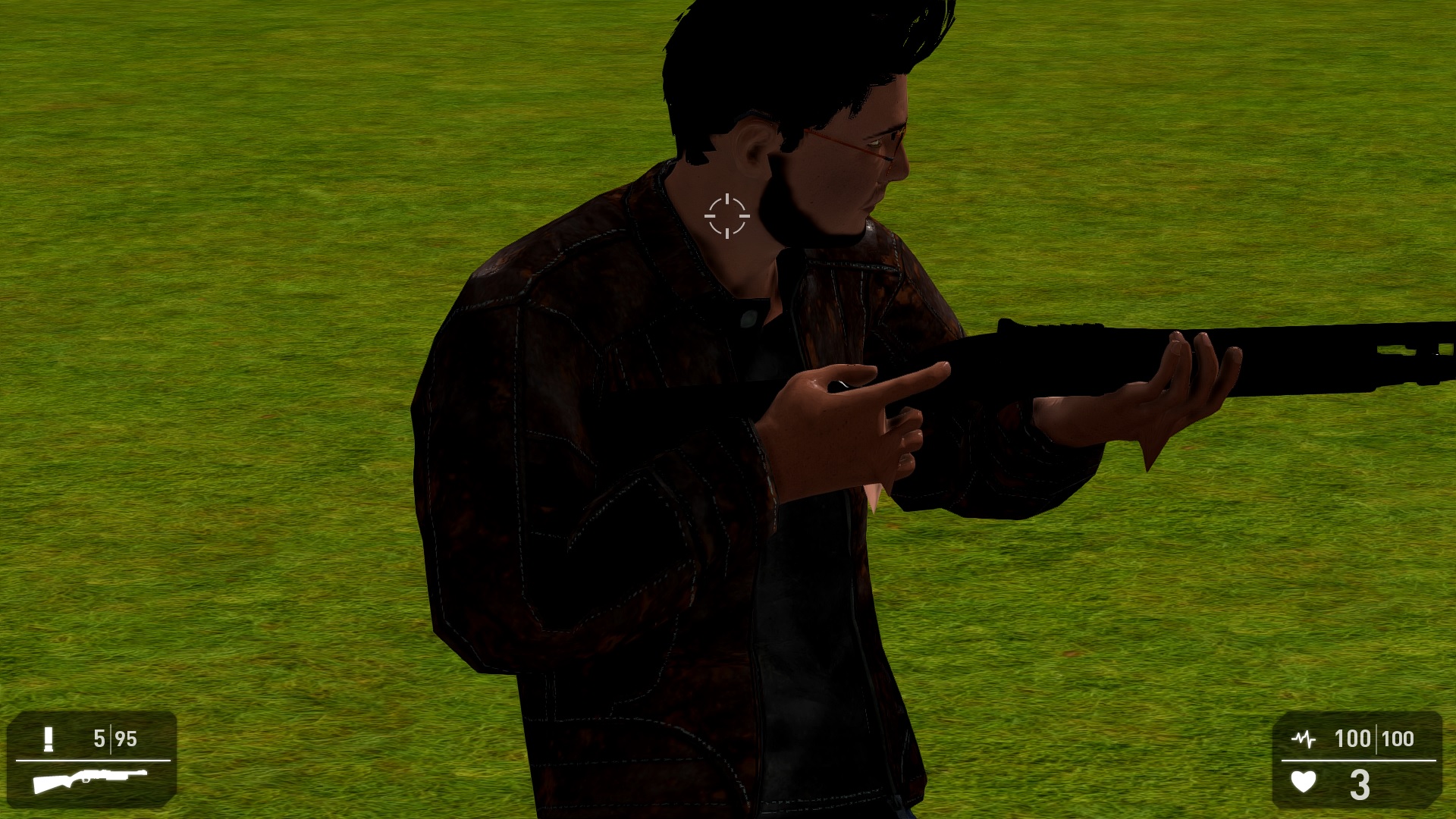

@Belidos thanks working great, now I need to find out why this spiky hands any ideas?

Attachments

Login to view attachments
PM Email
granada
Forum Support
22
Years of Service
User Offline
Joined: 27th Aug 2002
Location: United Kingdom
Profile
Posted: 13th Mar 2020 19:53
Link
Looks like you might have vertices assigned to the wrong bone or not weighted right

Dave
Windows 10 Pro 64 bit
GeForce RTX™ 2070 GAMING OC 8G
AMD FX (tm)-9590 Eight-core Processor
31.96 GB RAM
3840 x 2160 ,60 Hz
PM
Bored of the Rings
GameGuru Master
19
Years of Service
User Offline
Joined: 25th Feb 2005
Location: Middle Earth
Profile
Posted: 13th Mar 2020 20:53
Link
Yeah ya cant do much without the fire spot limb always add fire spot. Go for it
Professional Programmer: Languages- SAS (Statistical Analysis Software) , C++, C#, VB, SQL, PL-SQL, JavaScript, HTML, Three.js, Darkbasic Pro, Purebasic, others
Hardware: Dell Precision 490; AMD Radeon HD 7570; 12GB.
PM Website
Petr Surtr
4
Years of Service
User Offline
Joined: 9th Jan 2020
Location: Italy
Profile
Posted: 13th Mar 2020 21:43
Link
Hi folks, does anyone can tell me if it's possible to import fbx assets in gameguru without using fbx2gg, simply using model importer? In GGX the model importer will be improved?
I mean, will be possible to import only from the "pipeline" fuse_mixamo_gg(x) or even directly import assets purchased from sketchfab?
PM
Peri
Game Guru Backer
14
Years of Service
User Offline
Joined: 6th Jan 2010
Location:
Profile
Posted: 13th Mar 2020 22:02
Link
Strange thing, it happen only when I export the character directly for 3ds max to x format maybe its something in the x exporting window, when I export it to fbx and using fbx2gg it looks normal.

@Petr Surtr, if its not a character with animations you can easily import fbx models to gg with gg importer I am using it many times.
PM Email
osiem80
5
Years of Service
User Offline
Joined: 24th Jan 2019
Location: Poland
Profile
Posted: 14th Mar 2020 07:05
Link
https://forum.game-guru.com/thread/221090
PM
Petr Surtr
4
Years of Service
User Offline
Joined: 9th Jan 2020
Location: Italy
Profile
Posted: 14th Mar 2020 12:26
Link
@Peri
@Osiem80
Thank you very much!
PM
Peri
Game Guru Backer
14
Years of Service
User Offline
Joined: 6th Jan 2010
Location:
Profile
Posted: 16th Mar 2020 16:17
Link
@granada I think it may something with the export setting I doing some tests

Attachments

Login to view attachments
PM Email
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 16th Mar 2020 21:54
Link
I don't know about 3DSMax, but i've been playing with Blender and rigging today using the rigify add-on, and importing into gameguru in FBX format, and i was pleasantly surprised, my characters and their rigs were importing into GameGuru perfectly in FBX format, i had less issues than i ever had with .X format, i didn't even have an issue with the FIRESPOT, which i almost always do with .X

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Primary Laptop:
i5, NV1050 4GB, 8GB memory, 1x 1TB HDD, Win10.
Secondary Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
Peri
Game Guru Backer
14
Years of Service
User Offline
Joined: 6th Jan 2010
Location:
Profile
Posted: 16th Mar 2020 22:12
Link
@Belidos nice gg importer bring the character in with the animations and fire spot?

I just fixed my problem of the spike hands by importing the model into frag motion and export again

looks like a bug in gg with 3ds max exporting
PM Email
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 17th Mar 2020 02:14
Link

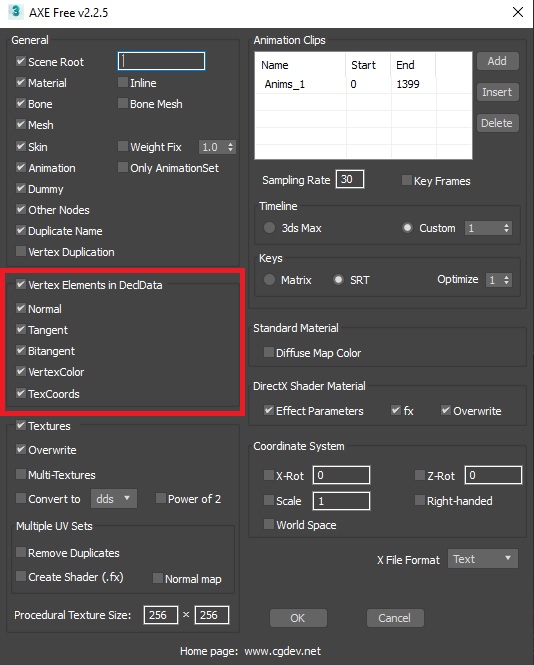

@Peri Turn off declData
Use Max matrix for Keys and Use Key frames for animation stuff.
RIP
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

New:
Intel(R) Core(TM) i5-8400 CPU @ 2.81GHz, 12GB RAM, Nvidia gtx1050ti 4gb, Windows 10 Home 64bit, Screen resolution 1920 x 1080. System Passmark 3774




PM Email
3com
10
Years of Service
User Offline
Joined: 18th May 2014
Location: Catalonia
Profile
Posted: 17th Mar 2020 05:48
Link
If use Bond1's kW X-porter to export as X file, but is too hard to get Bond1's web site (if any)

https://sourceforge.net/projects/kwxport/

Laptop: Lenovo - Intel(R) Celeron(R) CPU 1005M @ 1.90GHz

OS: Windows 10 (64) - Ram: 4 gb - Hd: 283 gb - Video card: Intel(R) HD Graphics
cpu mark: 10396.6
2d graphics mark: 947.9
3d graphics mark: 8310.9
memory mark 2584.8
Disk mark: 1146.3
Passmark rating: 3662.4

PM
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 17th Mar 2020 06:13 Edited at: 17th Mar 2020 06:14
Link
No, when I say import I simply mean the process of getting it into gameguru, I don't use the built in importer for FBX in gameguru, it seems pointless to use because you have to edit the FPE anyway to add the anims so you might as well add the whole thing manually. To be honest the importer had never been quite right, it's always worked better adding a model manually whether in FBX or X.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Primary Laptop:
i5, NV1050 4GB, 8GB memory, 1x 1TB HDD, Win10.
Secondary Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
