imothep85
18
Years of Service
User Offline
Joined: 27th Mar 2006
Location: Belgium
Profile
Posted: 27th Jun 2018 10:12
Link
So now i spent two weeks trying everything, from 3dcoat to 3ds max, from 3ds max to gg.
nothing work.
In 3dcoat everything works well, textures and auto uvw (even if seams are ugly), i export to 3ds max and i get the exact same result CLEAN (no seams visibles)

so i re-export form 3ds max to GG tried ALL the fbx formats from 2009 to 2016
here you can see my last test i do with game guru, in FACT importing FBX with pbr or not, it's not working at all i can make a video, but its another waste of time, and i have other things to do.

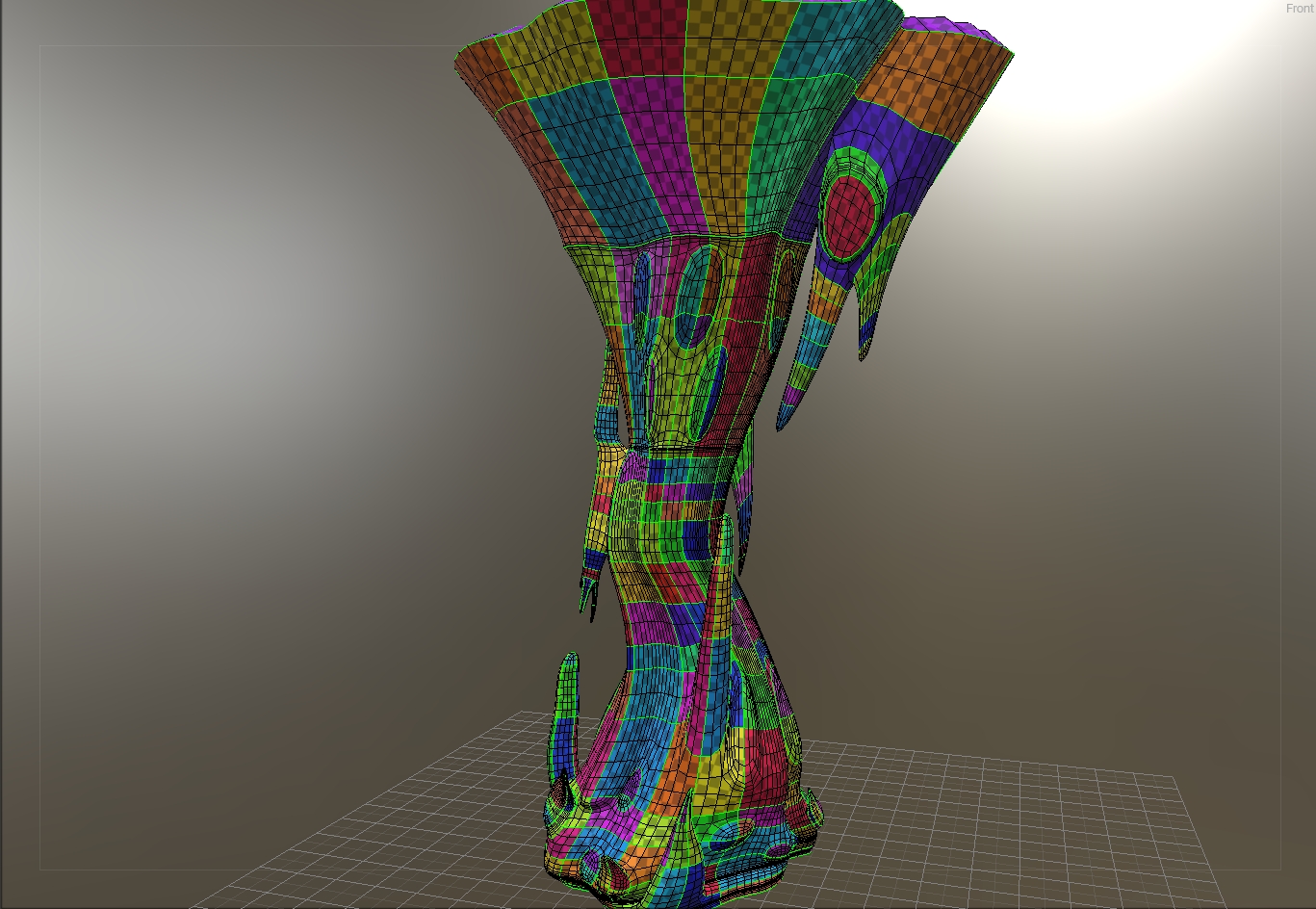

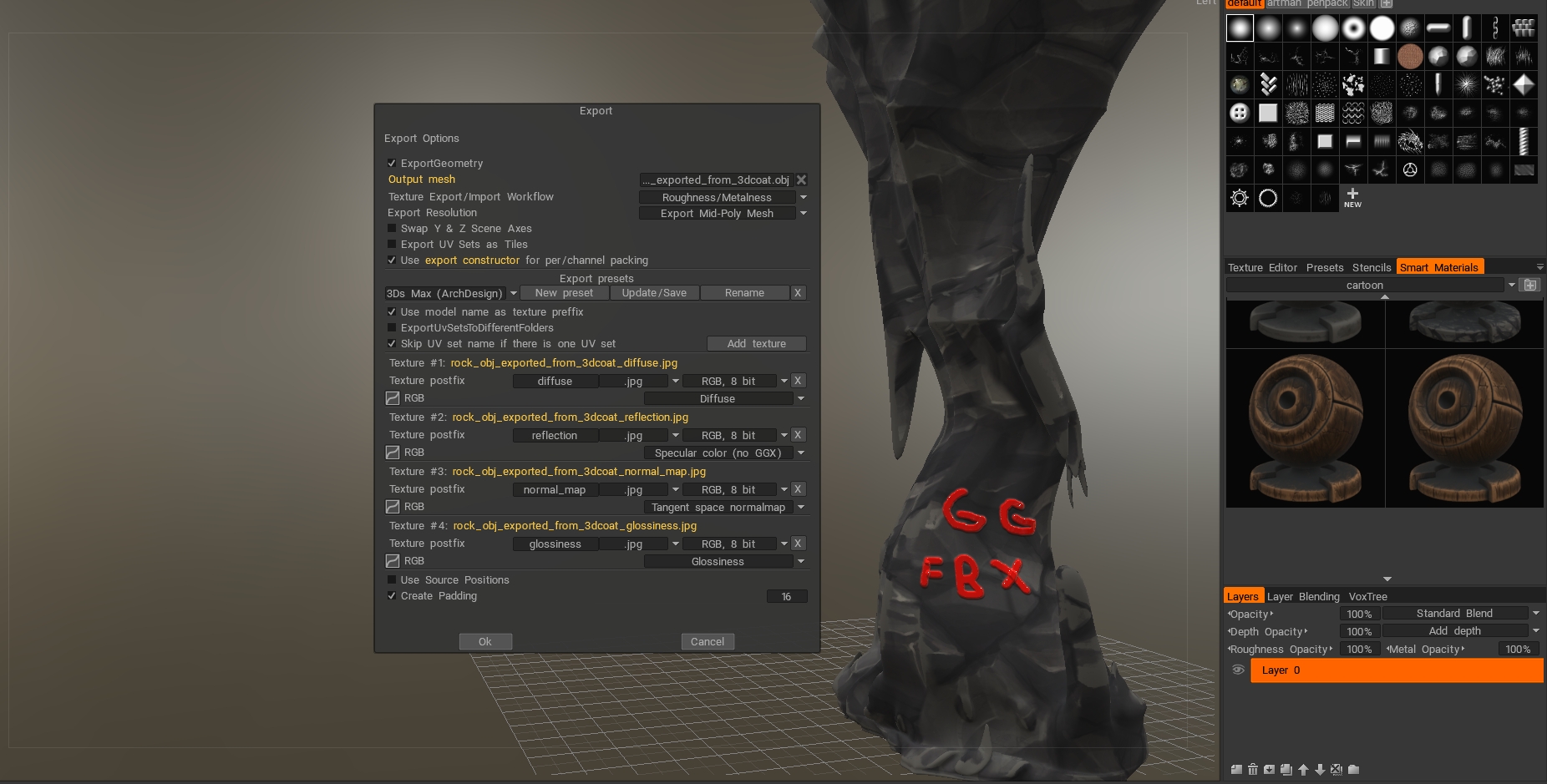

here you can see my object inside 3d coat, YES i also tried every export format and texturing options like dds.

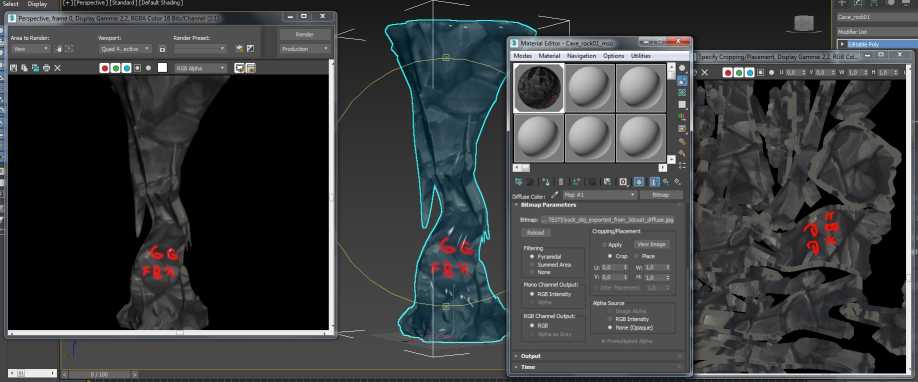

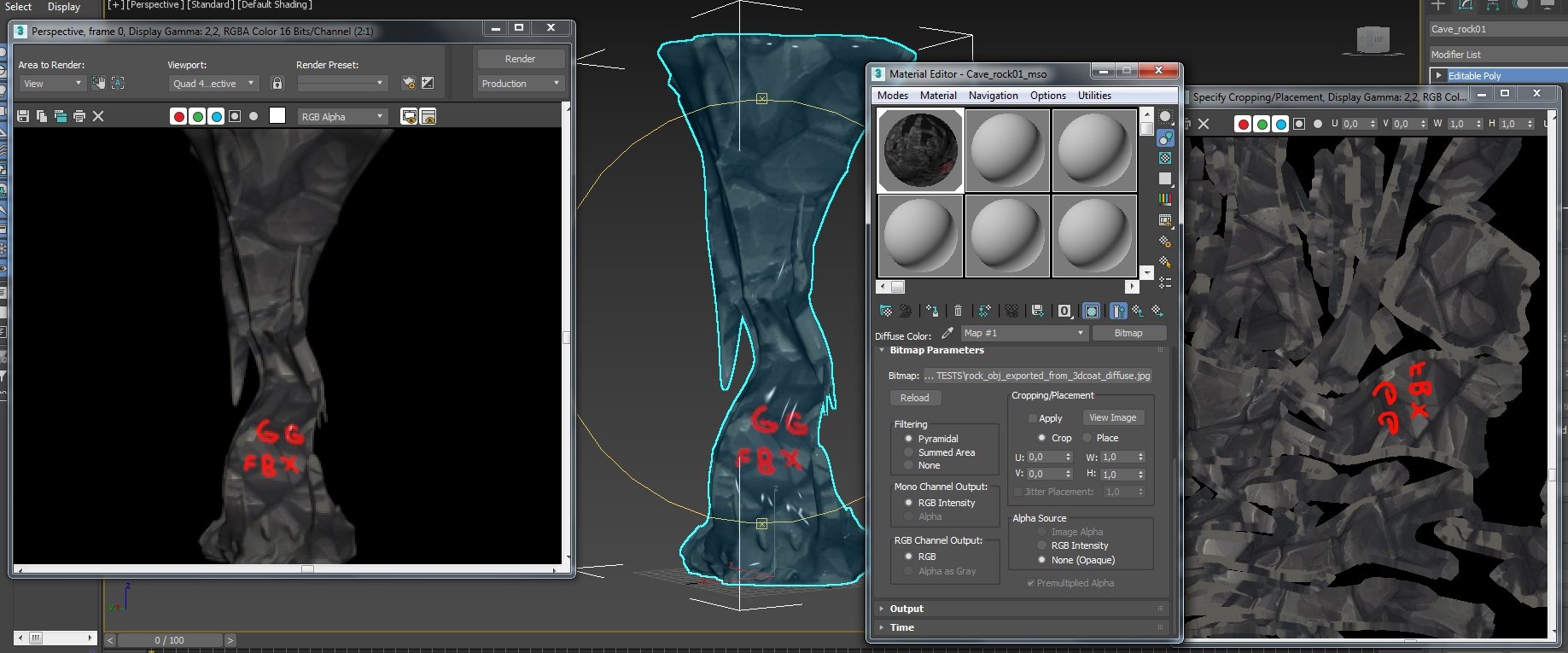

two you can se my result in 3ds max with my setup for texture

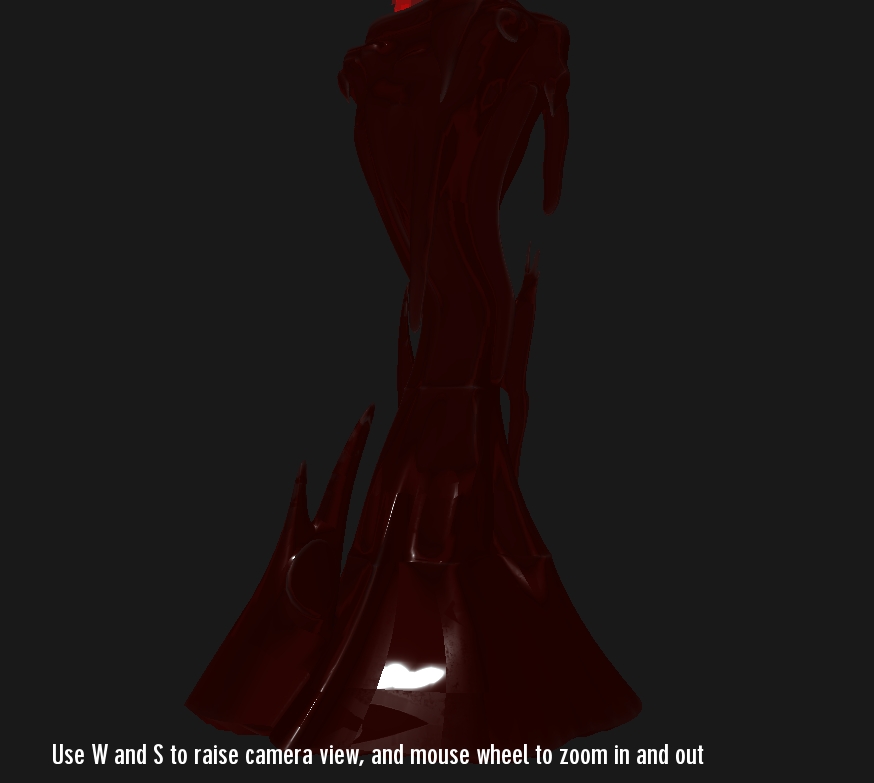

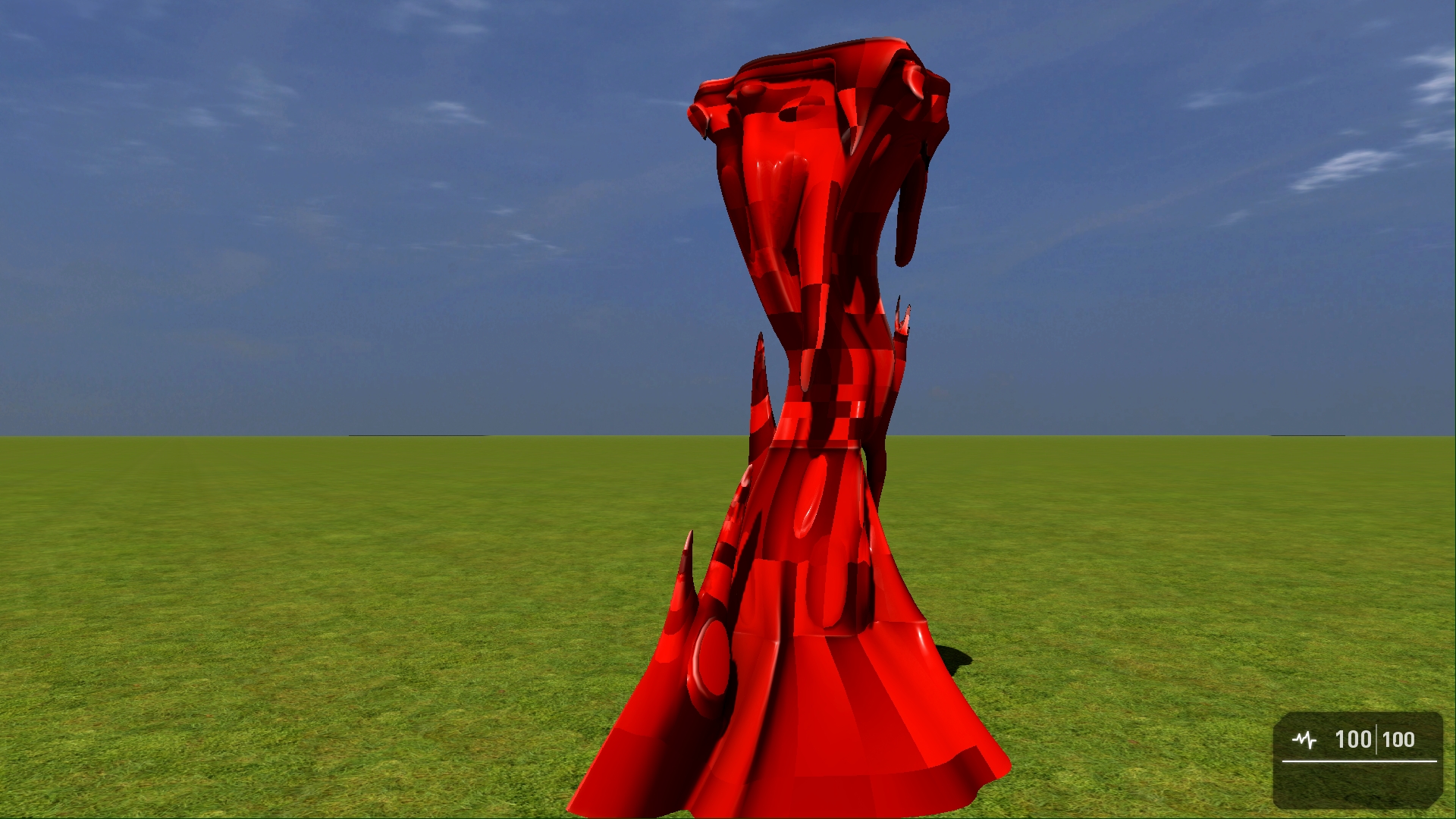

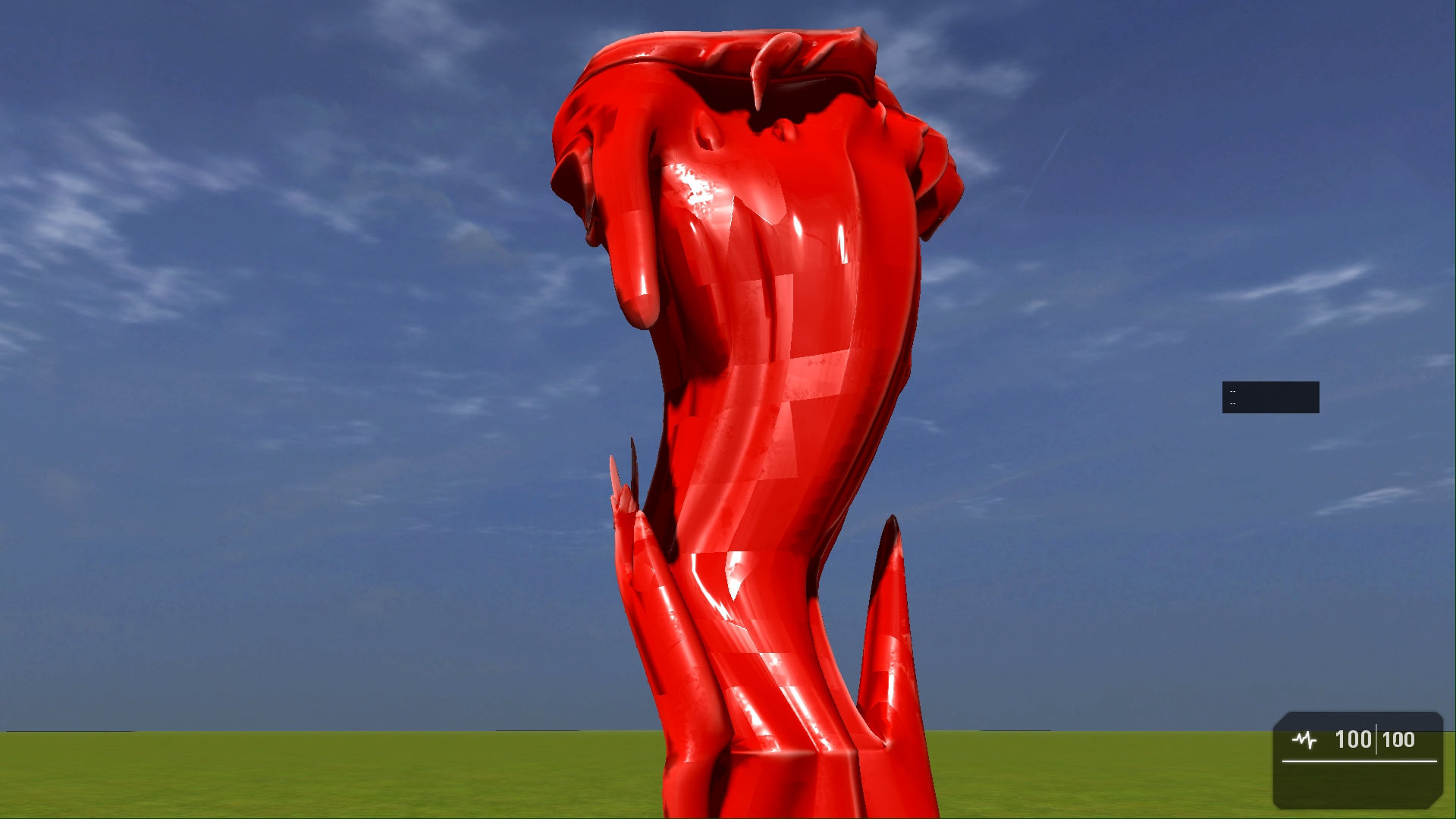

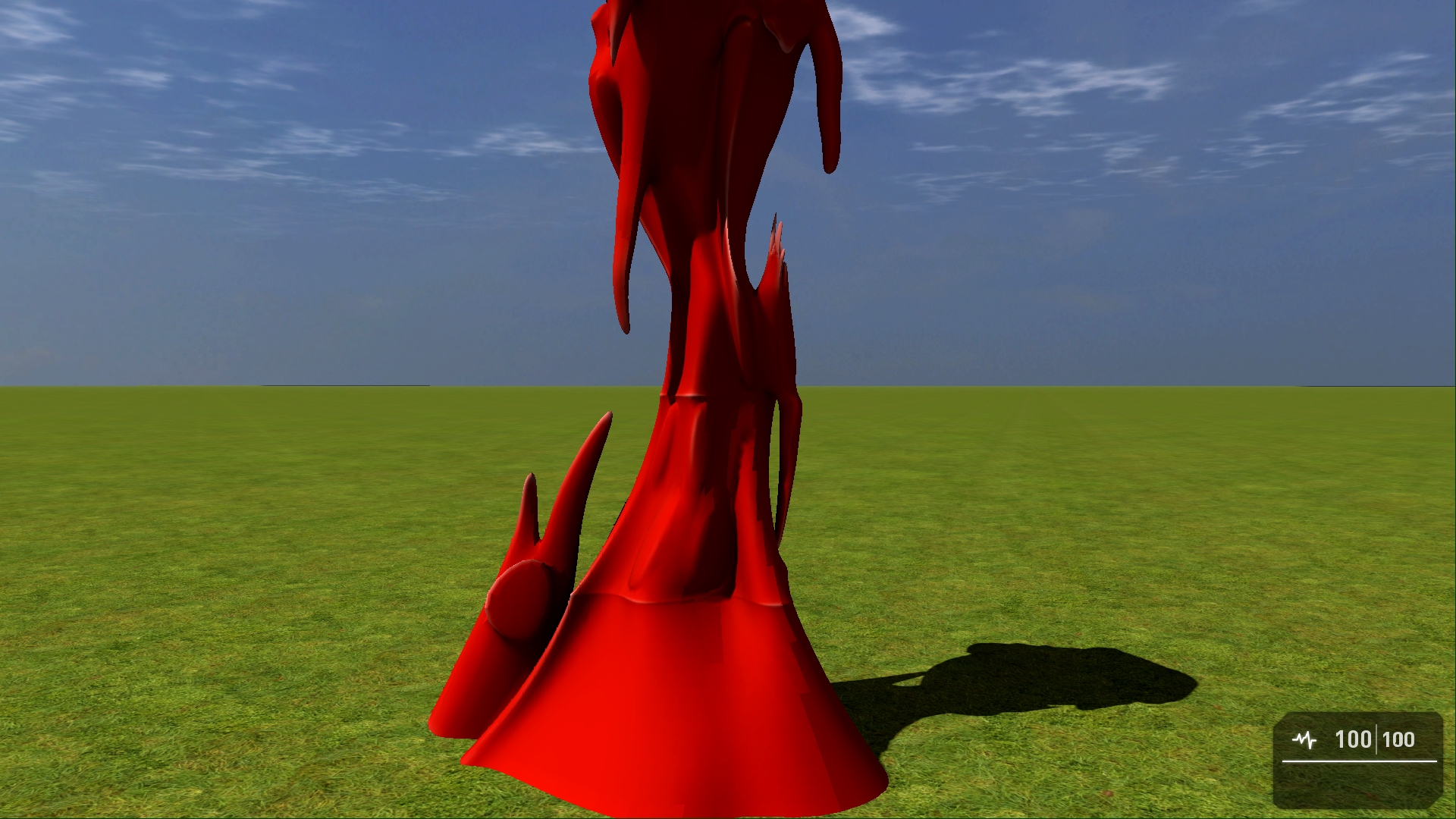

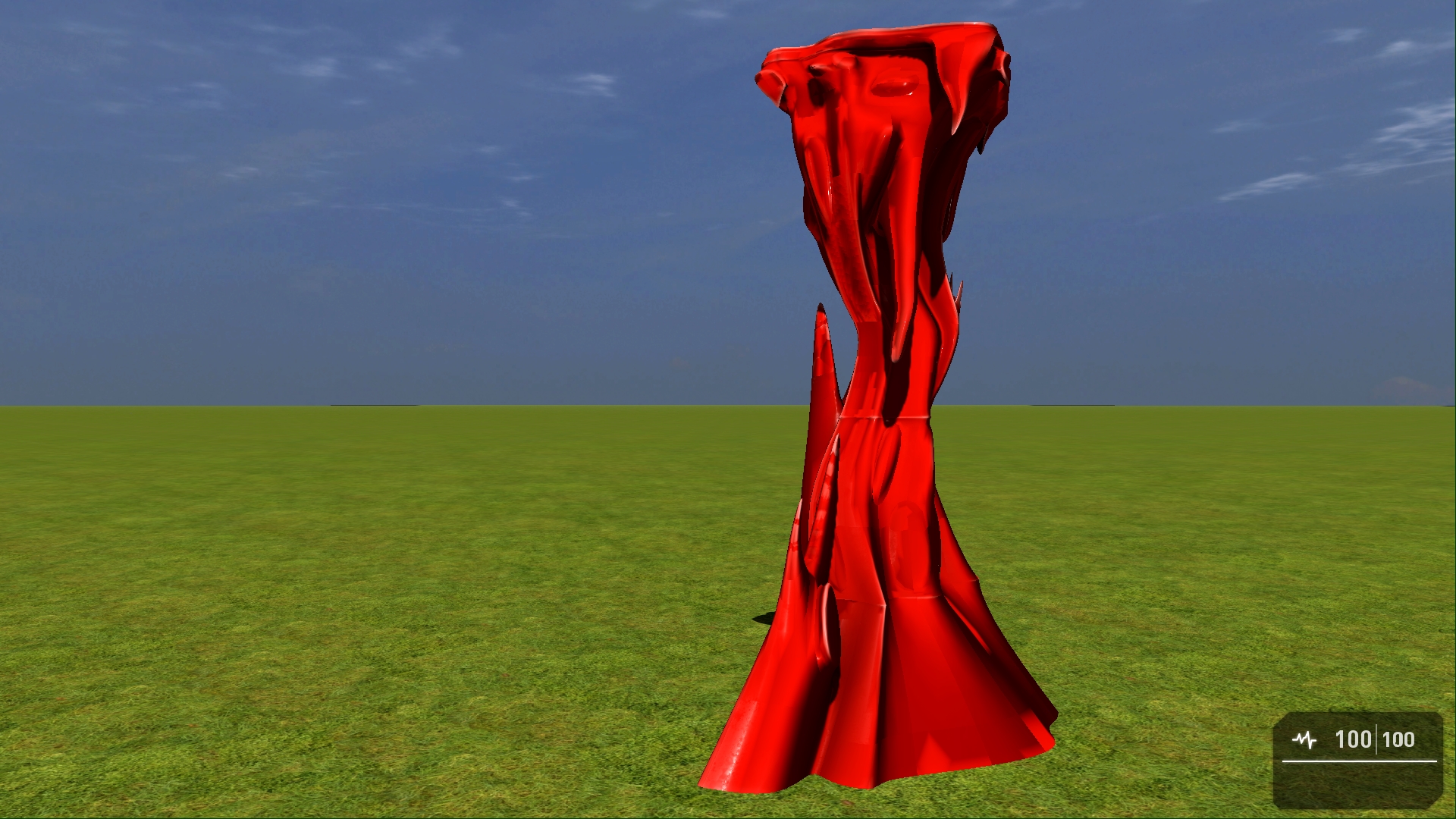

and then the result of importing the model in GG and the final result !

Attachments

Login to view attachments
PM Email Website
synchromesh
Forum Support
10
Years of Service
User Offline
Joined: 24th Jan 2014
Location:
Profile
Posted: 27th Jun 2018 10:32
Link
Please stick to one of the other threads you have going and stop creating more to avoid them being deleted ..
Moved to 3rd party models and media
The only person ever to get all his work done by "Friday" was Robinson Crusoe..
PM
granada
Forum Support
21
Years of Service
User Offline
Joined: 27th Aug 2002
Location: United Kingdom
Profile
Posted: 27th Jun 2018 10:47
Link
You need to let people look at the model to be able to help you

Dave
Windows 10 Pro 64 bit
GeForce GTX 1050 Ti
AMD FX (tm)-9590 Eight-core Processor
31.96 GB RAM
1920x1080,60 Hz
PM
imothep85
18
Years of Service
User Offline
Joined: 27th Mar 2006
Location: Belgium
Profile
Posted: 27th Jun 2018 11:37
Link
i did it i sended the files to pirate mike and i got a terrible result
this is the result https://forum.game-guru.com/attachment/19599
PM Email Website
Pirate Myke
Forum Support
13
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 27th Jun 2018 12:06
Link
The obj you sent me has a smooth normal map from 3d coat. as I explained in the email back to you, that there needs to be some definition in it for it to show details.

Your normal map from 3d coat.


Your Color map


The normal I made for you using the color texture thru a photo normal program


The original .obj file sent


Result I got in GG


It is the way your normal map is being generated in 3d coat. It is to smooth with out details.
3d coat is not baking the original mesh to make the normal map proper.
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

PM Email
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 27th Jun 2018 12:34
Link
Ding ding we have a winner, i knew someone else would get it. Also, with regards to the UV map, it's not very good, it's a bit distorted and scrunched up into one corner, you would need a fairly high resolution texture to get a decent fidelity on screen, shapes like this need to be manually unwrapped by marking seams, and evenly distributed across the texture properly.
[img]belidos3d.swgrp.co.uk/wp-content/uploads/2016/03/blogo.png[/img]
Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
Pirate Myke
Forum Support
13
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 27th Jun 2018 17:16 Edited at: 27th Jun 2018 17:16
Link
I did another test cube in 3d coat and exported it out and brought it into 3ds max.
Converted the textures to .dds.
Had to add the bump texture to the normal, because again the normal was smooth.
Exported one object as X and One as FBX 2011 version.

Here is the video showing the results.



As you can see the one marked F has a better normal display. Still has to adjust the texture for Game Guru a bit.
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

PM Email
imothep85
18
Years of Service
User Offline
Joined: 27th Mar 2006
Location: Belgium
Profile
Posted: 28th Jun 2018 09:26
Link
Pirate Myke it is working with simples objects, try with more complex objects
if its working you need to do an HD 1080p video where you show what setting you put on 3dcoat an then what fbx export setting you use for GG.
PM Email Website
Pirate Myke
Forum Support
13
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 28th Jun 2018 13:27
Link
I will not learn 3d coat any more. You need to watch there video , just like I have. I am not a circus monkey just here for your entertainment.

It is not the programs, It is you that cant get it working.
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

PM Email
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 28th Jun 2018 14:14
Link
Quote: " I am not a circus monkey just here for your entertainment."


Give that guy post of the week!
[img]belidos3d.swgrp.co.uk/wp-content/uploads/2016/03/blogo.png[/img]
Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
Bored of the Rings
GameGuru Master
19
Years of Service
User Offline
Joined: 25th Feb 2005
Location: Middle Earth
Profile
Posted: 28th Jun 2018 14:33
Link
Blimey, some basic manners wouldn't go amiss ..... @Imothep850 I think you meant ...

Quote: "Pirate Myke it is working with simples objects, [please] try with more complex objects
if its working you , please can do an HD 1080p video showing what setting you put on 3dcoat an then what fbx export setting you use for GG - pretty please with sugar on top "


and even then I'd have to think about it twice ha
Professional Programmer: Languages- SAS (Statistical Analysis Software) , C++, C#, VB, SQL, PL-SQL, JavaScript, HTML, Three.js, Darkbasic Pro (still love this language), Purebasic, others
Hardware: Dell Precision 490; AMD Radeon HD 7570; 12GB.
PM Website
imothep85
18
Years of Service
User Offline
Joined: 27th Mar 2006
Location: Belgium
Profile
Posted: 28th Jun 2018 15:29 Edited at: 28th Jun 2018 15:37
Link
i mean it is working with basic objects, i tested again today with my rock, now textures are working fine from 3dcoat to 3ds max and then GG but i still have the seams problem, last thing to fix !
i get the textures almost right, with reflections, roughness, normal, diffuse, ( not tested with ao ) only the seams problem persist!
under 3dcoat everything is clean, no seams visibles, exported to 3ds max i get the same result, everything is super clean, no seams visibles, rendered also very close to the model, no seams but when i try under GG textures are working like in 3ds max and 3dcoat, but the seams are all visible.

i dont want to be impolite with you pirate mike, i never said it was an order to do it, (the video in 1080p), i was asking if it was possible to record a video where users can see what setup you use.
PM Email Website
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 28th Jun 2018 15:57 Edited at: 28th Jun 2018 16:07
Link
Game engines render differently to modelling programs, a seam will always be more prominent in a game engine than in modelling software, but there are some ways of making them less obvious. For example, when you unwrap the UV leave space between the UV islands to allow for padding (about 12 to 16 pixels should do it), when you texture a model it adds padding to the texture to help blend the seems better, if you do't leave enough space that padding will make the seam more prominent, also try not to leave areas between UV's that are transparent, fill any unused space with a solid colour. Also, MipMapping a texture can cause colour bleed on the edges of a texture, try not to use mipmapping unless you need it (Note: an advantage of using .DDS is that they handle mip maps better and you don't get so much bleed).
[img]belidos3d.swgrp.co.uk/wp-content/uploads/2016/03/blogo.png[/img]
Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Profile
Posted: 28th Jun 2018 16:42
Link
further to what everyone is saying I used 3DCoat for quite a while and found it not very GG friendly, I mainly use Quixel Suite 2 and the colour to use in that suite for 'auto seam hiding' is pure black of which I thought would be a problem in GG but its not, so look at the small print on your texturing software see if it has a 'seam helper' also as Belidos states you can use little tricks to hide your seams cylinders are the worst you will always get one seam unless you do a bit of trickery like I did for this....




if you look carefully all I have done is rotated the texture on the outside by 90 degrees and hidden the seam under the ring patterns now unless I had told you that you would not have known.

so when building complex models take in consideration of where your seam will be, contrary to popular belief making assets is not easy making them look good is damn hard, I always think ahead when making models.
Welcome to the real world!
Main PC - Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
Test PC - Windows 10 Pro x64 - G4400 @3.3GHz - 16GB DDR3 RAM - GeForce GTX 950 2GB - 500GB SSD
Laptop - Helios 300 Predator - i7 7700HQ - 32GB - Nvidia GTX1060 6GB - 525GB M2 - 500 SSD - 17.3" IPS LED Panel - Windows 10 Pro x64
PM Email Website
imothep85
18
Years of Service
User Offline
Joined: 27th Mar 2006
Location: Belgium
Profile
Posted: 28th Jun 2018 17:36 Edited at: 28th Jun 2018 17:58
Link
thanks for your help GraPhiX i tried and i did this, exported to 3Ds max converted to fbx and imported the textures+object fbx everything is almost exactly the same as 3Dcoat & 3Ds max, the LAST problem i have is always the visible seams.

in 3d coat i created clean uvw then i added a texture smart material and exported to 3ds max and converted to fbx and re-imported to GG.
in the FP file i added: preservetangents_1 and i got a terrible result (picture 2) if i remove the preservetangents_1 from the fpe i get another result ( picture3 )

so inside 3ds coat i tested with padding 16 ( because my texture is 2048x2048 ), and 4, and 32 too but nothing changes...

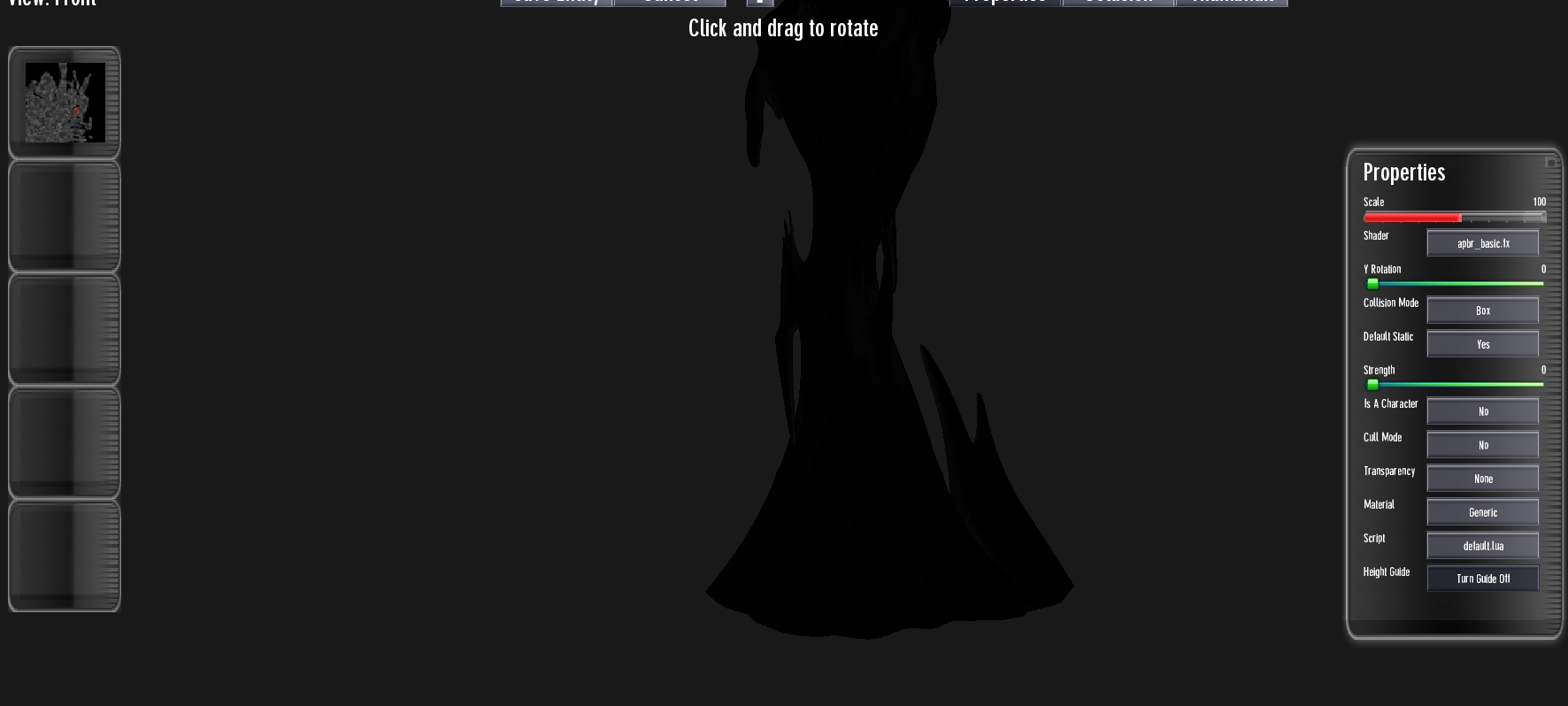

in the import editor i can already see the seams (last picture)

Attachments

Login to view attachments
PM Email Website
granada
Forum Support
21
Years of Service
User Offline
Joined: 27th Aug 2002
Location: United Kingdom
Profile
Posted: 28th Jun 2018 22:52
Link
You will always have seam problems with a model like that

Dave
Windows 10 Pro 64 bit
GeForce GTX 1050 Ti
AMD FX (tm)-9590 Eight-core Processor
31.96 GB RAM
1920x1080,60 Hz
PM
Ertlov
GameGuru BOTB Developer
17
Years of Service
User Offline
Joined: 18th Jan 2007
Location: Australia
Profile
Posted: 29th Jun 2018 00:24 Edited at: 29th Jun 2018 00:27
Link
Those UVs make me cringe.

Edit:

Seriously, I can import supercomplex meshes, fuse characters with clothing and semitransparent sunglasses, freakking megascan from quixel - and all works.

Actually, really good.
"I am a road map, I will lead and you will follow, I will teach and you will learn, when you leave my sprint planning you will be weapons, focused and full of JIRA tickets, Hot Rod rocket development gods of precision and strength, terrorizing across the repository and hunting for github submits."
PM Email Website
GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Profile
Posted: 29th Jun 2018 12:03
Link
@imothep85 can you send me that model as .OBJ via PM I want to unwrap it in UUPRO3D to see how it turns out
Welcome to the real world!
Main PC - Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
Test PC - Windows 10 Pro x64 - G4400 @3.3GHz - 16GB DDR3 RAM - GeForce GTX 950 2GB - 500GB SSD
Laptop - Helios 300 Predator - i7 7700HQ - 32GB - Nvidia GTX1060 6GB - 525GB M2 - 500 SSD - 17.3" IPS LED Panel - Windows 10 Pro x64
PM Email Website
imothep85
18
Years of Service
User Offline
Joined: 27th Mar 2006
Location: Belgium
Profile
Posted: 29th Jun 2018 12:56
Link
sended !
PM Email Website
Wolf
Forum Support
16
Years of Service
User Offline
Joined: 8th Nov 2007
Location: Luxemburg
Profile
Posted: 29th Jun 2018 15:57
Link
I think I said this before but: The built in importer does not work particularly well, you are better off doing it manually.
I attached a blank .fpe file.

If you insist on using the importer its likely that you get undesirable results. You can also look at some models inside GG that use PBR textures to see how they are different from 3D coat and adjust your work. (if you want to use PBR.)



-Wolf
- Shavra : Renaissance -

Attachments

Login to view attachments
PM Email Website Skype
Pirate Myke
Forum Support
13
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 29th Jun 2018 16:29 Edited at: 29th Jun 2018 16:29
Link
I have been listing the FBX file in the FPE file under the mesh section and it works fine so far.
I have not tried an animated one yet.

But some other good new is that multi textured objects with a pbr texture set are rendering correctly inside of Game Guru.
This only works with dynamic lighting so far. The detail map is only working on the first map listed in the mesh.
I have tried it with 2 textures so far. But I am working another test and incorporating this in it as well for regular static objects.









Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

PM Email
GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Profile
Posted: 29th Jun 2018 16:51
Link
that's good to know thanks Myke, I might try some of my old models that are multi textured see what they look like
Welcome to the real world!
Main PC - Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
Test PC - Windows 10 Pro x64 - G4400 @3.3GHz - 16GB DDR3 RAM - GeForce GTX 950 2GB - 500GB SSD
Laptop - Helios 300 Predator - i7 7700HQ - 32GB - Nvidia GTX1060 6GB - 525GB M2 - 500 SSD - 17.3" IPS LED Panel - Windows 10 Pro x64
PM Email Website
Pirate Myke
Forum Support
13
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 2nd Jul 2018 19:29 Edited at: 2nd Jul 2018 19:32
Link
3dCoat to 3dMax To FBX 2011 To Game Guru
Multi textured object with 32000 polygons, 6 textures, All PBR set with the apbr_basic.fx shader used.
All meshes were assigned in the FPE files, No textures listed, and shader Listed.

After 7 days of learning 3dCoat, 6 versions of trying not to over load my boat anchor, and 47 machine lock ups later, here is what can be done in 3dCoat and brought in by FBX into Game Guru. Importer not needed.
Here are the pieces in 3dCoat:







Here they are together F for FBX and X for X file version in Game Guru:












Here is what the mesh looks like in 3dMax:


The X file in Assimp Viewer.
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

PM Email
Back to top

Login to post a reply

Server time is: 2024-04-23 20:05:44
Your offset time is: 2024-04-23 20:05:44
