3rd Party Models/Media Chat / AE goes underground (AKA: AE tries to learn PBR)

Author
Message
Avenging Eagle
14
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Posted: 16th Apr 2018 20:38 Edited at: 16th Apr 2018 20:46
Not sure I'm quite ready for a full-on return to Game Guru yet as many features still seem to be broken in development. Instead, I've been indulging in a bit of modelling for some possible in-game assets. And now that DX11 is (sort of) here, it seemed like a good opportunity to teach myself texturing for PBR. I do not own Substance Designer or Marmoset Ballbag Toolbag, so I'm doing this manually using Paint Shop Pro 5 (which was released in 1998), xNormal (which is free), and Sketchfab (which I created a free account on so I can use it as a PBR viewer).

I wanted something that involved a mixture of shiny and tarnished metals, concretes, plastics, painted surfaces, and ceramics.

So, I've decided to model some London Underground assets.

Here's my progress so far:

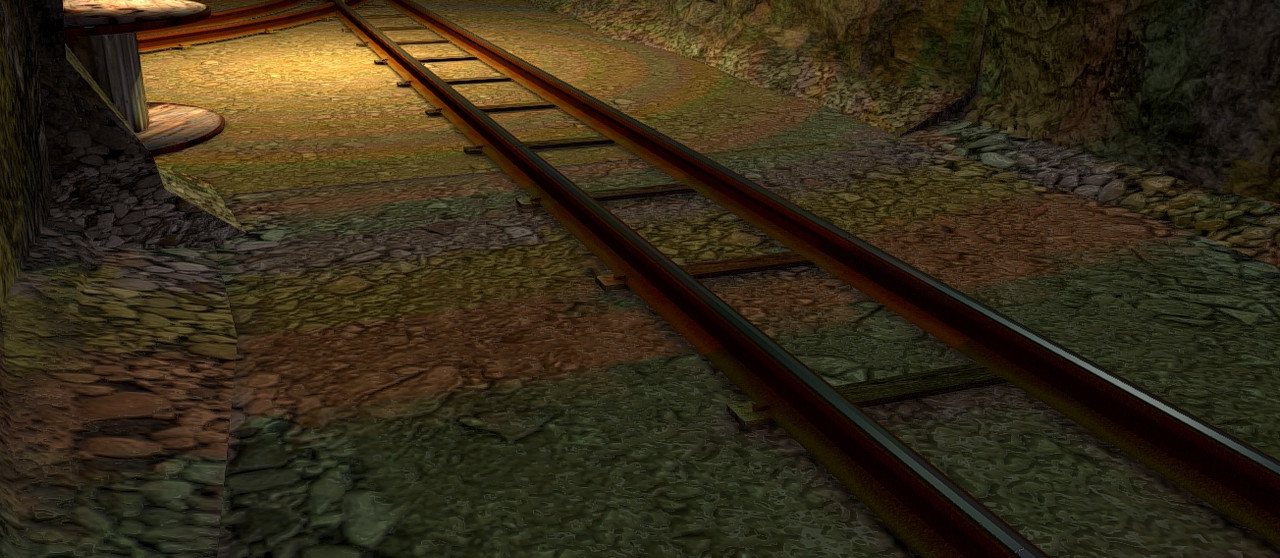

Rail Section
The idea is to create something modular and low-poly. No idea if this concept will work in Game Guru, or whether you will see the 'stitches'.



Platform Section
My day job is working for a sight loss charity so I got stupidly excited to model some accurate tactile paving slabs for Game Guru. Very sad I know...

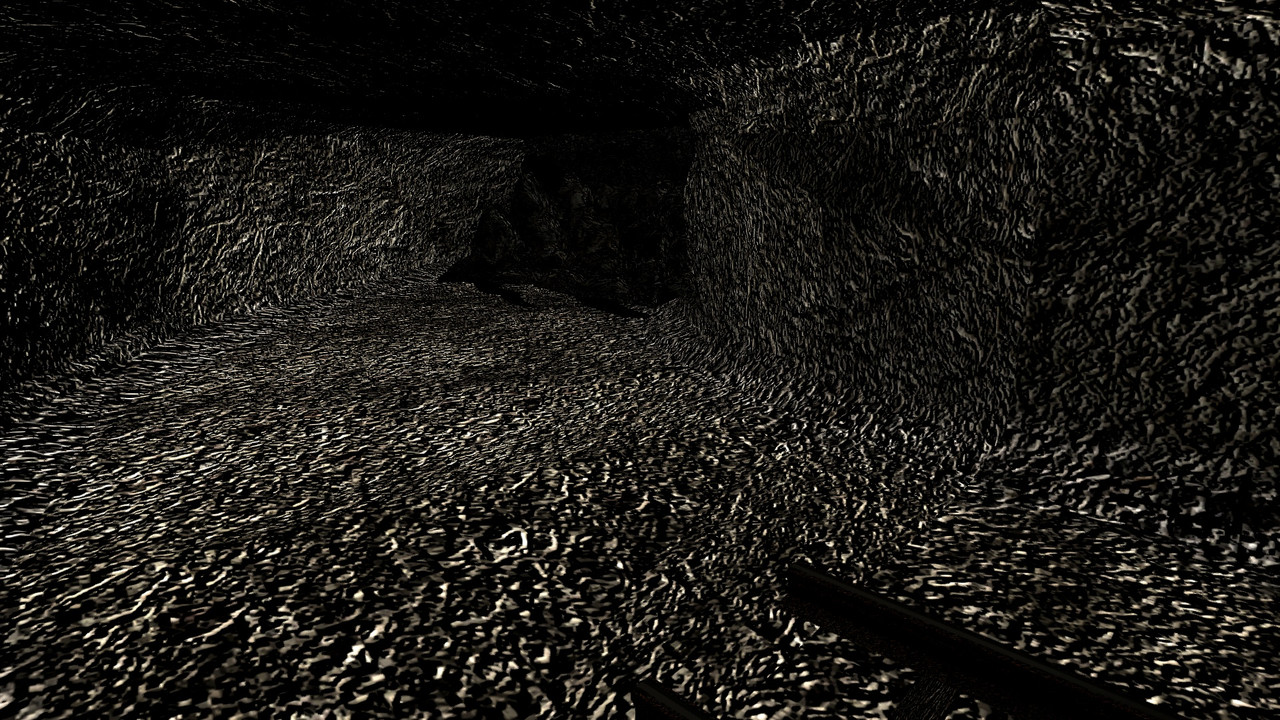

Tunnel Sections
This element is the only one with 4096x4096 textures so far, and the only reason for the high res is because one texture set spans three different sections of tunnel (blank tiles, entrance left and entrance right). Each tunnel, track and platform section is 2m long.



Roundel
TfL (Transport for London) have some incredibly detailed and helpful PDFs on their website that give details on not only station design and layout, but also on materials, lighting design, brand colours, fonts, and sign placement. It's basically a step-by-step manual on how to design a tube station and I couldn't have got this far without them! Sadly though, they own the copyright to both the quintessential Johnston 100 typeface and the iconic roundel design. I will have to approach them to license these, which you can do through their website. I have no idea if this will be free or not (I suspect not).



Roof panels
For this station, I'm replicating the Central London Railway style, most commonly associated with stations on the Central Line, such as Oxford Circus and Lancaster Gate. It may be possible to adapt the pack and provide additional variations to mimic other popular station styles.



I'm working on this on and off but I hope there will be more to follow!

AE
granada
GameGuru TGC Backer
17
Years of Service
User Offline
Joined: 27th Aug 2002
Location: United Kingdom
Posted: 16th Apr 2018 22:14
And a very nice job you are making of it,just goes to show what you can do with old tools .very nice

Dave
Windows 10 Pro 64 bit
GeForce GTX 1050 Ti
AMD FX (tm)-9590 Eight-core Processor
31.96 GB RAM
1920x1080,60 Hz
PM
Pirate Myke
Forum Support
9
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Posted: 16th Apr 2018 23:08
Welcome back. Great start so far.
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

Errant AI
Forum Support
13
Years of Service
User Offline
Joined: 24th Aug 2006
Location: [REDACTED]
Posted: 17th Apr 2018 04:02
Quote: " I do not own Substance Designer or Marmoset Ballbag Toolbag, so I'm doing this manually using Paint Shop Pro 5 (which was released in 1998), xNormal (which is free), and Sketchfab (which I created a free account on so I can use it as a PBR viewer). "


You should be fine. For now at least. I too am using old tools (Ps CS 2) and a cheap PBR viewer (p3d.in). Materials look a bit worse in GG but that's to be expected, at this stage. Better to stumble forward than cling to the past.
Gigabyte P67A-UD4-B3, Intel Core i7 2600K (passmark 8555), 16GB Corsair DDR3, EVGA GTX 970 SC (passmark 8637), Win10 Pro 64-bit, Primary monitor @ 1920x1080, secondary monitor @ 1280x1024
TazMan
GameGuru TGC Backer
9
Years of Service
User Offline
Joined: 20th Jan 2011
Location: Worldwide Web
Posted: 17th Apr 2018 10:05
This is some great work, something I started working on a couple of weeks ago between other jobs but yours is quite a bit cleaner, I love the naming 'Bamber Street', I was wondering what to name mine.


Andrew...
HP Pavilion Laptop - AMD A8-4555M APU with Radeon(tm) HD Graphics - 1.6GHz, 8GB Memory, Windows 10 Home, 64-bit Operating System.

I've got something to say - It's better to burn out than fade away.
Avenging Eagle
14
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Posted: 6th Oct 2018 19:40 Edited at: 6th Oct 2018 19:42
Help Point
I had great fun this afternoon making what I consider to be a very accurate rendition of a help point, which are found throughout the underground and particularly at platform level. I'm particularly happy with the way the fire alarm came out, especially considering I texturing it 'by hand' and didn't just use a photograph.



I also spent some time earlier in the week exporting the assets from my first batch and getting them into Game Guru. They look great but you can see the joins between each tunnel and rail section. If I were to make a level out of them, I'd be tempted to assemble the station in a 3D package first and weld the sections together there, before importing the whole lot into Game Guru.



And all while the lightmapping in Game Guru is broken, I can't do any atmospheric renders like I want to.

AE
Wolf
Forum Support
12
Years of Service
User Offline
Joined: 8th Nov 2007
Location: Luxemburg
Posted: 8th Oct 2018 14:46
Quote: "And all while the lightmapping in Game Guru is broken, I can't do any atmospheric renders like I want to."




Good progress otherwise Glad to find another paint shop user
Bod
GameGuru TGC Backer
5
Years of Service
User Offline
Joined: 21st Dec 2014
Location: Preston Lancashire
Posted: 8th Oct 2018 16:24
Quote: "And all while the lightmapping in Game Guru is broken, I can't do any atmospheric renders like I want to."


Lightmapper is working.
Avenging Eagle
14
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Posted: 14th Oct 2018 23:38 Edited at: 14th Oct 2018 23:38
Quote: "Lightmapper is working."




...









...is it though? You and I must have very different definitions of "working".

AE
Bod
GameGuru TGC Backer
5
Years of Service
User Offline
Joined: 21st Dec 2014
Location: Preston Lancashire
Posted: 15th Oct 2018 10:46 Edited at: 15th Oct 2018 12:35
Works fine for me, I did have to increase the static light range values in DX11 compared to DX9 for my WIP project, Bolt Action Gaming mentioned in a post that static lights are 3 times weaker than dynamic.
I quickly knocked up the scene below with one static light in the hearth, colour 62b0ff, range 600, lightmappingsizeentity=1024, ambience 9 , contrast 16, brightness 24, it is inside a one piece fully enclosed room model so there is no light coming from anywhere else, it looks like it works to me.

Attachments

Login to view attachments
Avenging Eagle
14
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Posted: 15th Oct 2018 18:47 Edited at: 15th Oct 2018 18:48

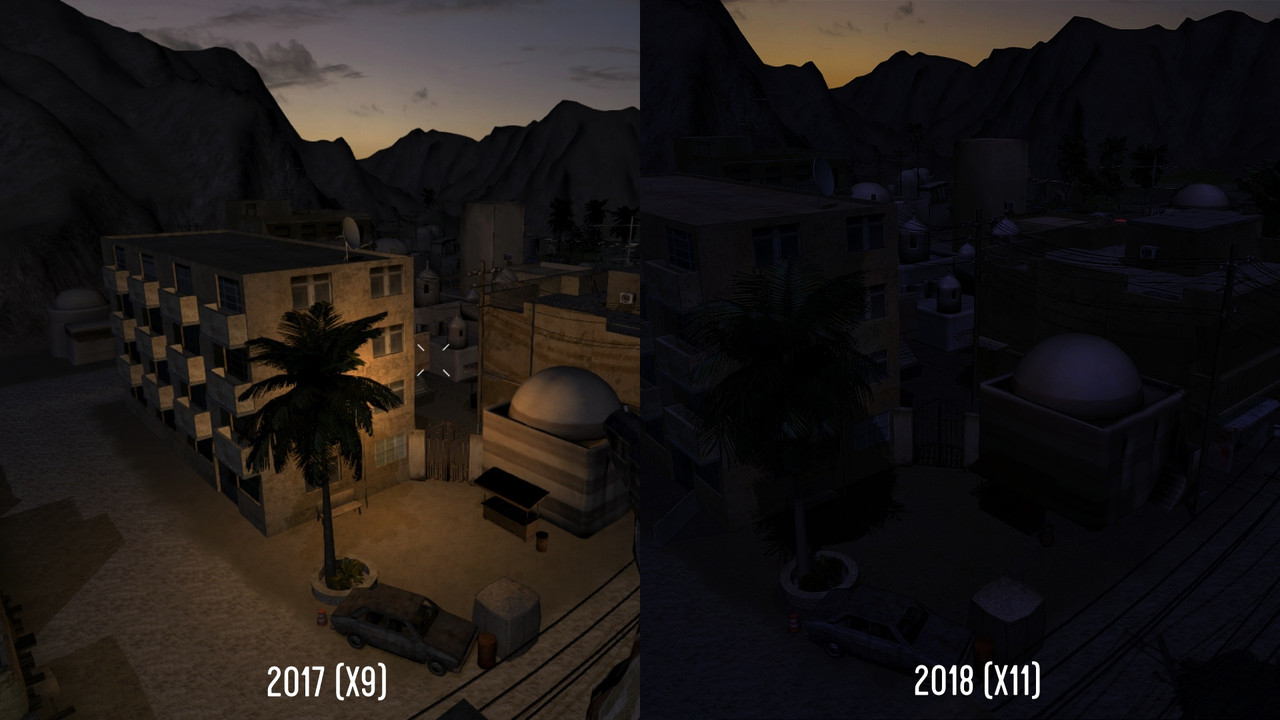

Nice image But I bet your surface level sliders are all quite high. Now try lighting an exterior scene at night with streetlights and you'll find that as soon as you lower the surface sliders to create a dark, faint, moonlight (instead of a sun), your static lightmaps will be crushed into insignificance, no matter how many static lights you duplicate into the same point. I even tried using a mixture of dynamic and static lights but to no avail

Wouldn't be a problem if we could control the sun intensity and colour separately.

AE
Bod
GameGuru TGC Backer
5
Years of Service
User Offline
Joined: 21st Dec 2014
Location: Preston Lancashire
Posted: 15th Oct 2018 19:44
The first one is with Surface Sun Factor 18 and Surface level 11, I never touched the surface red, green and blue they are all 100 but in the second one they are all reduced to 40 and the lightmapping is substantially faded, both lights are static and range 400, the other settings are the same as I mentioned before, have you posted on GitHub ?

Attachments

Login to view attachments
Avenging Eagle
14
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Posted: 16th Oct 2018 14:39
I have not posted on GitHub, I'm not signed up to it. May do that though...

AE
Avenging Eagle
14
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Posted: 24th Oct 2018 00:29 Edited at: 24th Oct 2018 00:34
Bin
...I mean, there's not much to say...it's just a bin.
In all seriousness though, this object presented some interesting modelling and texturing challenges regarding how to create realistic trash that will (hopefully) be visible inside the semi-transparent plastic bin bag. The easiest option, and what I might have done a few years ago for FPSC, would be to have a nondescript 'trash texture' on a solid mesh in the bottom of the bag. Or do it all using the bag texture itself. Instead, I opted for the more complicated option of actually making an assortment of low poly trash models including cups, paper, and packaging to sit in the bottom of the bin.



The cost of the extra polygons isn't too high, and it's all textured from one atlas (along with _metal, _gloss, and _normal maps). Each item of trash represented a different material, from the shiny metal of the can, to the waxy cardboard of the drinks cup, to the transparent plastic of the bottle. I enjoyed coming up with faux brand names for all the products, and designing a fake newspaper front page.



The model is shown here with its full 2048 x 2048 maps but it won't need to be this high res in Game Guru so I'll resize the maps before importing. Maybe if I release this pack on the store, I could include the full res versions too.

EDIT: Looking at it again, I think I might dirty up the bag texture itself a bit. Still looks a bit too clean...

AE
OldFlak
GameGuru TGC Backer
4
Years of Service
User Offline
Joined: 27th Jan 2015
Location: Tasmania Australia
Posted: 24th Oct 2018 05:50
Nice bin there.

I have been avoiding transparency lately, could get to work in X9. But in X11 even if I get to work, it always end up getting trashed (lol - pun not intended) by the light map process. Just can't get blender to keep the transparent mesh parts in the right place.

So yeah, great job AE

Reliquia....
aka OldFlak
Intel(R) Core(TM) i3-4160 @ 3,60GHz. 8GB Ram. NVidia GeForce GTX 750. Acer 24" Monitors x 2 @ 1920 x 1080. Windows 10 Pro 64-bit.
PM
Avenging Eagle
14
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Posted: 27th Oct 2018 17:27 Edited at: 27th Oct 2018 17:28

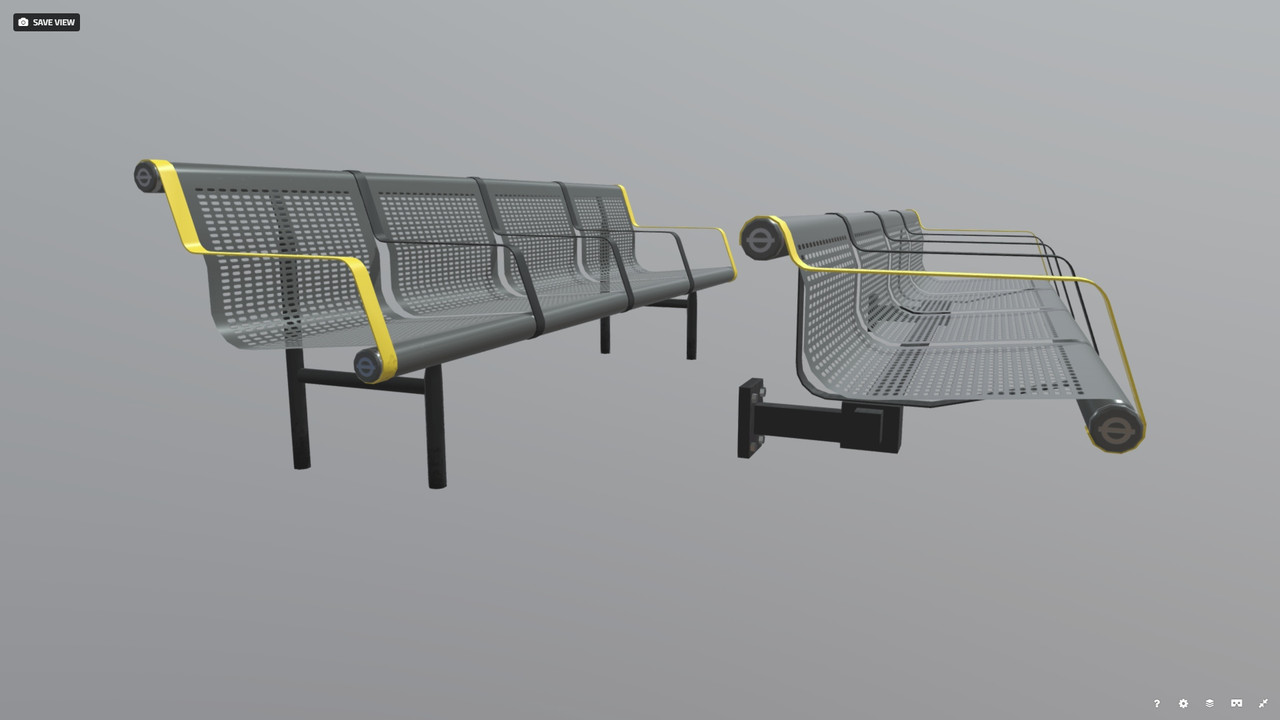

Bench (2 x Variations)
One of the objects I've been looking forward to modelling most is the metal benches found at many London Underground platforms. The combination of curving painted metal seats and armrests, chrome accents, and lots of holes provided some interesting modelling and texturing challenges for me. The free-standing bench is slightly higher-poly than I would like (currently 1700) but I just learned how to do LODs so I may be able to provide more optimised versions too.



The bench comes in two variations. I was initially only going to model the free standing one but I could see whilst modelling that I was going to have a lot of space left on the UV map and, since the two variations share many of the same components, I was able to squeeze them all onto the one map. With both benches sharing the same texture, I have effectively created two benches for the price of one, which will give developers a little more choice when they come to designing their own stations.



Stay tuned for more progress!

AE
granada
GameGuru TGC Backer
17
Years of Service
User Offline
Joined: 27th Aug 2002
Location: United Kingdom
Posted: 28th Oct 2018 02:46
Nice models Avenging Eagle,they look real

Dave
Windows 10 Pro 64 bit
GeForce GTX 1050 Ti
AMD FX (tm)-9590 Eight-core Processor
31.96 GB RAM
1920x1080,60 Hz
PM
Avenging Eagle
14
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Posted: 9th Jan 2019 22:43
Office
On several of my reference images, I noticed many of the platforms at underground stations have these small rectangular rooms at each end. Don't know whether these are tiny offices, broom cupboards, or doors to service passages, but I felt adding them would lend an extra layer of authenticity and break up the geometry a bit. So, I modelled a rectangle with a door inset in it. Not exactly the world's most complicated model, but it does its job well.



I'm pleased with how the PBR textures turned out on this one. The door and tiles both have the appropriate level of shininess, and I also made some slight changes to the tiles on all the tunnel sections to dirty them up a bit. No underground station is completely sterile and clean after all.



This week also saw me finally get those benches from the last update into GG, with the added benefit of LOD meshes. Several members of the forum helped point me in the right direction when I was struggling, so thanks to them! Here's what we've got in GG so far.



I'm still weighing up whether to model more platform details like signage, or move onto other parts of the station. Rest assured though, when I have something new, I'll be back with an update

AE
Belidos
3D Media Maker
4
Years of Service
Recently Online
Joined: 23rd Nov 2015
Location: Hertfordshire
Posted: 10th Jan 2019 08:36 Edited at: 10th Jan 2019 08:39
It depends which platform you are talking about, most of them are just cubby holes where the breakers for the lights etc are, and various cleaning supplies are kept, others are entrances into the service areas that run parallel to the tracks.

Quote: "with the added benefit of LOD meshes"


I've never been convinced that there are benefits to LOD, on the one hand you have less draw calls until you get close to the entity, but on the other hand, a model with 2 stages of LOD is essentially 3 models in one, so would take up considerably more memory on loading, i suppose it's a balance between loading times and fps.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.

Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.

Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
GraPhiX
Forum Support
14
Years of Service
User Offline
Joined: 15th Feb 2005
Playing: Fixing stuff ;)
Posted: 10th Jan 2019 09:17
WOW AE this is really good work well done
Welcome to the real world!
Main PC - Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
Test PC - Windows 10 Pro x64 - G4400 @3.3GHz - 16GB DDR3 RAM - GeForce GTX 950 2GB - 500GB SSD
Laptop - Helios 300 Predator - i7 7700HQ - 32GB - Nvidia GTX1060 6GB - 525GB M2 - 500 SSD - 17.3" IPS LED Panel - Windows 10 Pro x64
Various Tutorials by me
Avenging Eagle
14
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Posted: 13th Jan 2019 21:14 Edited at: 13th Jan 2019 21:15

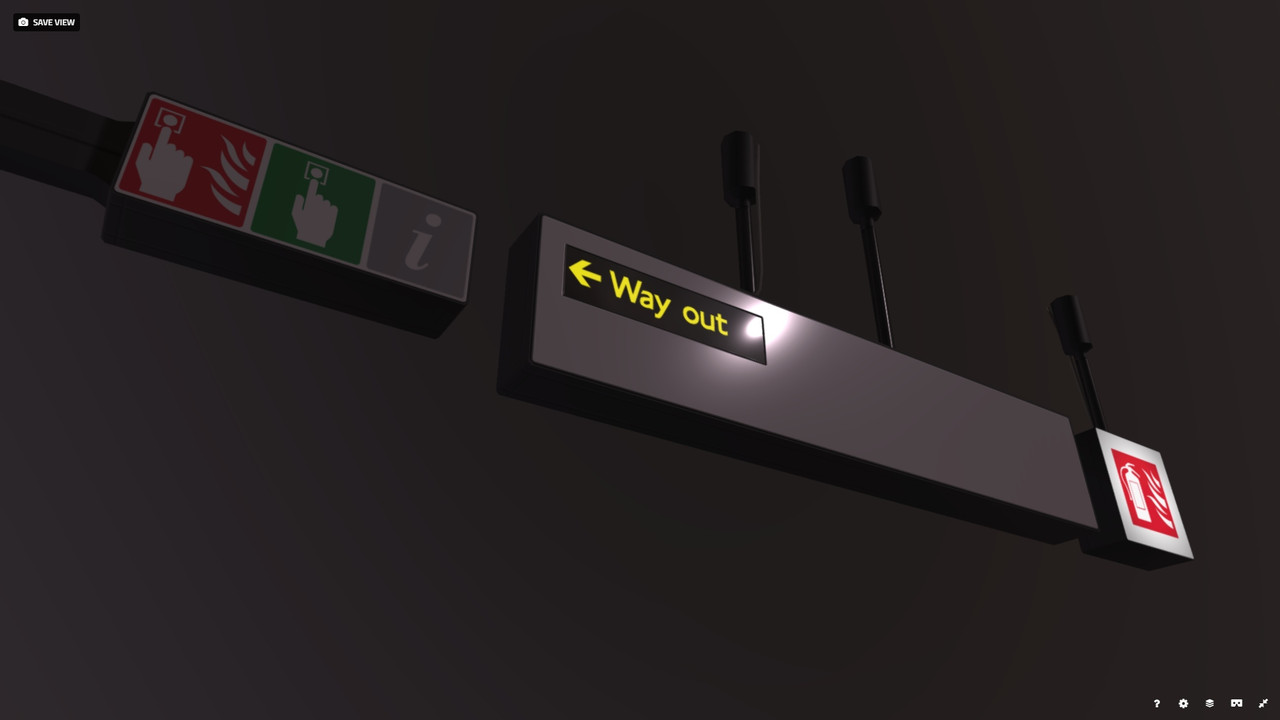

Signage #1
This weekend, I started creating some smaller decorative elements like posters, and signage. Anyone who saw my other thread will know I tried to make a model with multiple materials but it ended up being Game Guru'd in the kneecaps (to use Wolf's phrase!) so I ended up reverting to a simpler method which should still allow relatively easy customisation. The signs were fun to make, and gave me another opportunity to study documentation from TfL on how to lay them out correctly. I squeezed all 3 signs onto a single 1024 texture without losing much detail too.



Two of the signs feature _emissive maps, which were a bit challenging to get right in Game Guru because most other threads and documentation seem to suggest _illumination is the correct suffix for illumination maps. It can safely say, it is NOT!



And here's how these 4 new models look in Game Guru. My little test level is starting to get a bit cluttered so I may rebuild it from scratch with a longer platform to give me room to expand.



I'm actually in London tomorrow with my camera so hopefully I'll get the opportunity to take some reference stills. There's one or two elements I'm struggling to find decent pictures of that I'm dying to model.

AE
granada
GameGuru TGC Backer
17
Years of Service
User Offline
Joined: 27th Aug 2002
Location: United Kingdom
Posted: 13th Jan 2019 22:31
Great looking models,maybe a little clean looking for London
Quote: "because most other threads and documentation seem to suggest _illumination is the correct suffix for illumination maps. It can safely say, it is NOT!"


What is

Dave
Windows 10 Pro 64 bit
GeForce GTX 1050 Ti
AMD FX (tm)-9590 Eight-core Processor
31.96 GB RAM
1920x1080,60 Hz
PM
Pirate Myke
Forum Support
9
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Posted: 13th Jan 2019 23:09
For dnsi textures, _i is the extension.
For pbr textures _illumination is the extension. _emmisive can be used on everything but weapons and characters. I have not tried that extension.

Illuminated objects will show as dynamic obects when lightmapped.
Use f11 function to enter pbr debug mode, keys 1 thru 0

Make sure your illumination texture has an alpha channel.
Select what you want to be illuminated and level it pure white in the alpha channel. Select inverse and press the delete key.
Save file as _i or _illumination as .dds with dxt1 compression.

Use abpr_illumination shader for pbr
Entry_basic for dnsi
RIP
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

New:
Intel(R) Core(TM) i5-8400 CPU @ 2.81GHz, 12GB RAM, Nvidia gtx660, Windows 10 Home 64bit, Screen resolution 1920 x 1080. System Passmark 3774




granada
GameGuru TGC Backer
17
Years of Service
User Offline
Joined: 27th Aug 2002
Location: United Kingdom
Posted: 13th Jan 2019 23:55
Thanks for that,I think I will print that one out

Dave
Windows 10 Pro 64 bit
GeForce GTX 1050 Ti
AMD FX (tm)-9590 Eight-core Processor
31.96 GB RAM
1920x1080,60 Hz
PM
OldFlak
GameGuru TGC Backer
4
Years of Service
User Offline
Joined: 27th Jan 2015
Location: Tasmania Australia
Posted: 14th Jan 2019 21:12
I use _illumination since it is what Lee set as the standard for textures away back, never heard of _emissive till this thread.

I find PBR illumination to be flat - seams more like it just changes the color to a brighter shade rather than actually glowing, unless you turn Bloom way up, which of course has the two-fold result of washing out the sky, and draining FPS big time.

I have experimented using both abpr_basic and apbr_illumination but no difference.

Pirate Myke, when I read your reply above I thought aha that's what I have been missing, promptly fired up photoshop after the cricket, and can safely say I have no idea what you are suggesting - lol.
To test, I added an alpha channel, saved as dxt1 no alpha - no difference just flat brighter color - also tried dxt1 with 1 bit alpha, same result.

Would be nice to have some kind of official locked down method of textures for GG.
As with transparency, and like here with illumination, there are numerous conflicting posts as to what we should be doing, but nothing concrete as to what is the correct way for GG to handle these things properly.

Reliquia....
aka OldFlak
i7-4790 @ 3.2GHz. 8GB Ram. NVidia GeForce GTX 750. M1: Samsung 31.5" @1920x1080 M2: Acer 24" @ 1920 x 1080. M3: Acer 24" @ 1920 x 1080. OS: Windows 10 Pro 64-bit Insider.
PM
Avenging Eagle
14
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Posted: 14th Jan 2019 22:09
Quote: "Make sure your illumination texture has an alpha channel"


That'll be what I missed, I didn't realise you needed an alpha channel. I also didn't realise DXT 1 would be the correct compression method. Because I make all my textures as .png in an old version of Paint Shop Pro, I'm very familiar with creating alpha channels based on luminance (white = opaque, greys = semi transparent, black = transparent). But Paint Shop Pro can't save as .dds, and I'm still very much a novice when it comes to creating alpha channels in Photoshop, or saving pre-existing alpha channels in a .png file into a .dds. Thanks for the info though!

On balance, I prefer the _emissive method because it's more like what I'm used to in 3D animation and doesn't require me to make an alpha channel (it literally doesn't work if you DO have an alpha channel).

AE
Pirate Myke
Forum Support
9
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Posted: 14th Jan 2019 22:25
For Photoshop Only:
Select what you want to be illuminated and paint it pure white.
Select inverse and paint pure black.
Magic wand select the white.
Hold shift key and press Add mask.
Right click on the mask part in the layers and press apply mask.

Save file as _i or _illumination as .dds with dxt1 argb 4 bpp 1 bit alpha compression.

That should work for you now.
RIP
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

New:
Intel(R) Core(TM) i5-8400 CPU @ 2.81GHz, 12GB RAM, Nvidia gtx660, Windows 10 Home 64bit, Screen resolution 1920 x 1080. System Passmark 3774




OldFlak
GameGuru TGC Backer
4
Years of Service
User Offline
Joined: 27th Jan 2015
Location: Tasmania Australia
Posted: 15th Jan 2019 11:16 Edited at: 15th Jan 2019 11:58
Thanks Myke will give that a go

Edit: So if I am doing this correctly - which I doubt lol - we end up with a transparent map with the bits we want illuminated being white?

Reliquia....
aka OldFlak
i7-4790 @ 3.2GHz. 8GB Ram. NVidia GeForce GTX 750. M1: Samsung 31.5" @1920x1080 M2: Acer 24" @ 1920 x 1080. M3: Acer 24" @ 1920 x 1080. OS: Windows 10 Pro 64-bit Insider.
PM
OldFlak
GameGuru TGC Backer
4
Years of Service
User Offline
Joined: 27th Jan 2015
Location: Tasmania Australia
Posted: 15th Jan 2019 11:25
Quote: "But Paint Shop Pro can't save as .dds"

Are there not any plugs for it? Graphics cards are optimized for .dds and likewise GG handles them better than png.

Gimp is opensource and has plugs for .dds - might be an option.

Reliquia....
aka OldFlak
i7-4790 @ 3.2GHz. 8GB Ram. NVidia GeForce GTX 750. M1: Samsung 31.5" @1920x1080 M2: Acer 24" @ 1920 x 1080. M3: Acer 24" @ 1920 x 1080. OS: Windows 10 Pro 64-bit Insider.
PM
Belidos
3D Media Maker
4
Years of Service
Recently Online
Joined: 23rd Nov 2015
Location: Hertfordshire
Posted: 15th Jan 2019 11:43
https://download.nvidia.com/developer/NVTextureSuite/Paint_Shop_Pro_Steps.pdf

links in instructions

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.

Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.

Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
Avenging Eagle
14
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Posted: 15th Jan 2019 20:11
Thanks for all your help, guys. Sadly, Belidos, my version of Paint Shop Pro (5) is so old (1998) that the Nvidia plugin just seems to break it. It's OK though, I've had Nvidia plugins working in Photoshop for ages and I'm happy to do the conversions to dds in Photoshop.

PirateMyke, many thanks for the tutorial, it works for me, but naturally a 1-bit alpha channel is either black or white, transparent or opaque. That's why I personally prefer the _emissive workflow because it can cope with all the semi-glowing bits.
