Here's one method to read in screen resolution [from file-optional] and centre sprites on screen

Author

Message

Bored of the Rings

GameGuru Master

19

Years of Service

User Offline

Joined: 25th Feb 2005

Location: Middle Earth

Profile

Posted: 15th Oct 2017 10:55 Edited at: 21st Oct 2017 08:11

Link

If you want to use your screen resolution to centre sprites right smack bang in the middle of your screen, you can do it this way by reading in your screen coords from a text file, although this is optional. Or you can simply set x,y screen coord variables. I haven't added any code yet to check if files exist before loading in sprites, text file etc. Will do that later.

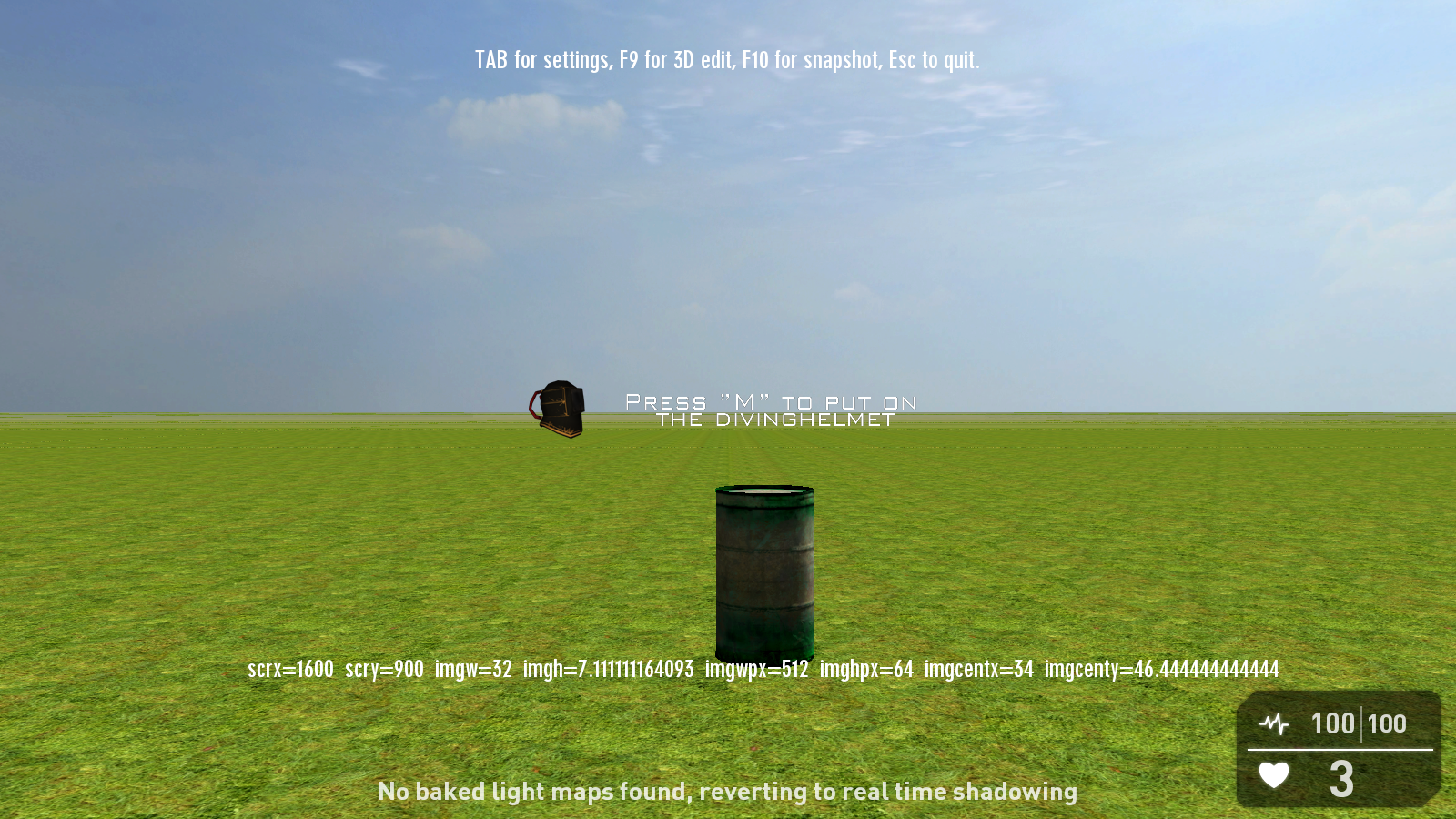

in this example, I used the usual dynamic barrel entity to attach the script (you could load in the screen resolution text file from the global.lua if you wanted). Then, using the divehelmet HUD image file from FPSC, which is 512 x 64 in pixel size. Did some math to center the sprite and voila...
I personally, don't like working in percentages (even though I'm a statistical programmer ha)......but prefer working in pixels.....

state = {}

function getscreenres_init(e)
	state[e] = 0
	readin=0 ;
	readfromfile = 1;
	if readfromfile == 1 then
		-- Opens a file in append mode
		file = io.open("resolution.txt", "r");
		-- sets the default input file as test.lua
		io.input(file)
		scrx=io.read()
		scry=io.read()
		readin = 1
		io.close(file)
	else
		scrx=1600
		scry=900
	end
end

function getscreenres_main(e)
	if state[e] == 0 then
	 myImage = LoadImage("gamecore\\thescarythinker\\helmets\\pickedupdive.tga",1)
	 imagewidth = GetImageWidth ( myImage ) -- get percentage width of image
	 imageheight = GetImageHeight ( myImage ) -- get percentage height of image
	 imgwpix = math.floor((imagewidth * scrx) / 100)
	 imghpix = math.floor((imageheight * scry) / 100)
	 imgcentx = (((scrx / 2) - (imgwpix / 2)) / scrx) * 100
	 imgcenty = (((scry / 2) - (imghpix / 2)) / scry) * 100
	 divepick = CreateSprite(myImage)
	 SetSpritePosition(divepick,imgcentx,imgcenty)
	 state[e] = 10 -- any value for now
	end

PromptLocal (e,'scrx=' .. scrx .. '  scry=' .. scry .. '  imgw=' .. imagewidth .. '  imgh=' .. imageheight .. '  imgwpx=' .. imgwpix .. '  imghpx=' .. imghpix .. '  imgcentx=' .. imgcentx)

end

--optional
function getscreenres_exit(e)
end

+ Code Snippet


state = {}

function getscreenres_init(e)
	state[e] = 0
	readin=0 ;
	readfromfile = 1;
	if readfromfile == 1 then
		-- Opens a file in append mode
		file = io.open("resolution.txt", "r");
		-- sets the default input file as test.lua
		io.input(file)
		scrx=io.read()
		scry=io.read()
		readin = 1
		io.close(file)
	else
		scrx=1600
		scry=900
	end
end

function getscreenres_main(e)
	if state[e] == 0 then
	 myImage = LoadImage("gamecore\\thescarythinker\\helmets\\pickedupdive.tga",1)
	 imagewidth = GetImageWidth ( myImage ) -- get percentage width of image
	 imageheight = GetImageHeight ( myImage ) -- get percentage height of image
	 imgwpix = math.floor((imagewidth * scrx) / 100)
	 imghpix = math.floor((imageheight * scry) / 100)
	 imgcentx = (((scrx / 2) - (imgwpix / 2)) / scrx) * 100
	 imgcenty = (((scry / 2) - (imghpix / 2)) / scry) * 100
	 divepick = CreateSprite(myImage)
	 SetSpritePosition(divepick,imgcentx,imgcenty)
	 state[e] = 10 -- any value for now
	end

	PromptLocal (e,'scrx=' .. scrx .. '  scry=' .. scry .. '  imgw=' .. imagewidth .. '  imgh=' .. imageheight .. '  imgwpx=' .. imgwpix .. '  imghpx=' .. imghpix .. '  imgcentx=' .. imgcentx)

end

--optional
function getscreenres_exit(e)
end

Professional Programmer: Languages- SAS (Statistical Analysis Software) , C++, C#, VB, SQL, PL-SQL, JavaScript, HTML, Three.js, Darkbasic Pro (still love this language), Purebasic, others
Hardware: Dell Precision 490; AMD Radeon HD 7570; 12GB.
FPSC to GameGuru Tools: AutoWelder/SegAutoWelder, Entity+Weapon Welder, FPEtoBAT

Attachments

Login to view attachments

PM Website

AmenMoses

GameGuru Master

8

Years of Service

User Offline

Joined: 20th Feb 2016

Location: Portsmouth, England

Profile

Posted: 15th Oct 2017 12:30

Link

What's wrong with GetDeviceWidth & GetDeviceHeight?

Been there, done that, got all the T-Shirts!

PM

Bored of the Rings

GameGuru Master

19

Years of Service

User Offline

Joined: 25th Feb 2005

Location: Middle Earth

Profile

Posted: 21st Oct 2017 07:57 Edited at: 21st Oct 2017 08:10

Link

ah yes absolutely nothing wrong using those 2 commands also. The code was to demonstrate how (if your a LUA / scripting beginner), how to load in values from a file (hence why I put optional in the title). It is more practical/efficient to use the GetDeviceWidth & GetDeviceHeight commands.
The focus was really to show how to center sprites on screen.

Anyway, I hope any beginners, or anyone who is not sure of how to use the LUA io commands, gets some benefit from the code.

Actually the code was originally a conversion of an old FPI script, but you can put the code that is in _main in the _init section and remove the condition i.e. "if state[e]==...." and the "end" statement after the line "state[e] = 10" (remove that too if you want). See lua code below:

+ Code Snippet


state = {}

function centrespriteupd_init(e)
	state[e] = 0

	scrx=GetDeviceWidth()
	scry=GetDeviceHeight()

	myImage = LoadImage("gamecore\\huds\\DungeonItems\\headc.png",1)
	imagewidth = GetImageWidth ( myImage )  -- get percentage width of image
	imageheight = GetImageHeight ( myImage )  -- get percentage height of image
	imgwpix = math.floor((imagewidth * scrx) / 100)
	imghpix = math.floor((imageheight * scry) / 100)
	imgcentx = (((scrx / 2) - (imgwpix / 2)) / scrx) * 100
	imgcenty = (((scry / 2) - (imghpix / 2)) / scry) * 100
	divepick = CreateSprite(myImage)
	SetSpritePosition(divepick,imgcentx,imgcenty)
end

function centrespriteupd_main(e)
	PromptLocal (e,'scrx=' .. scrx .. '  scry=' .. scry .. '  imgw=' .. imagewidth .. '  imgh=' .. imageheight .. '  imgwpx=' .. imgwpix .. '  imghpx=' .. imghpix .. '  imgcentx=' .. imgcentx .. '  imgcenty=' .. imgcenty)
end

Professional Programmer: Languages- SAS (Statistical Analysis Software) , C++, C#, VB, SQL, PL-SQL, JavaScript, HTML, Three.js, Darkbasic Pro (still love this language), Purebasic, others
Hardware: Dell Precision 490; AMD Radeon HD 7570; 12GB.
FPSC to GameGuru Tools: AutoWelder/SegAutoWelder, Entity+Weapon Welder, FPEtoBAT

PM Website
