Hello,

I try to import models from 3ds max to Game Guru.

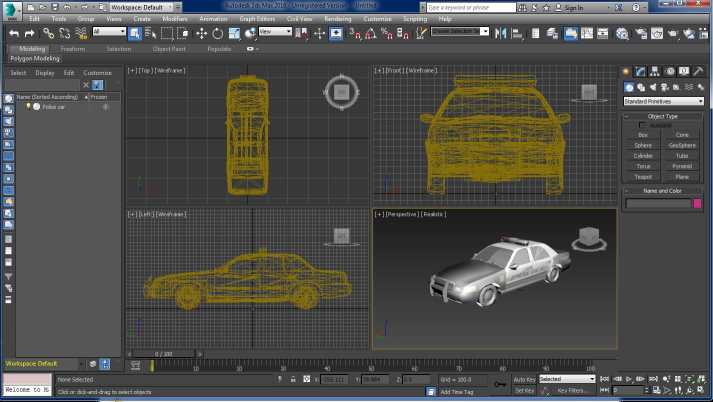

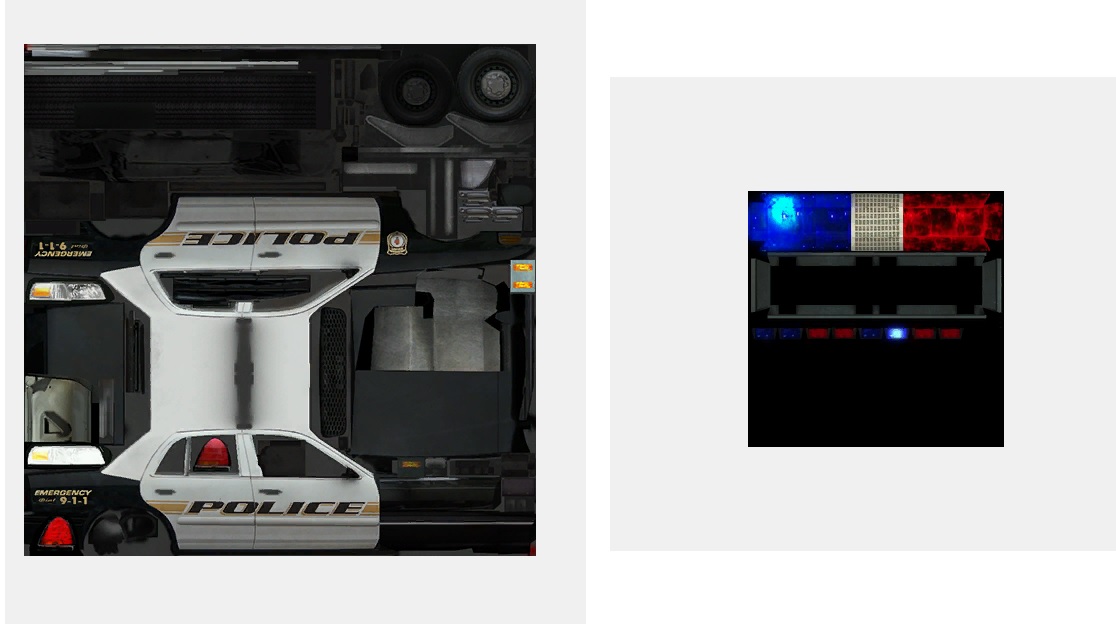

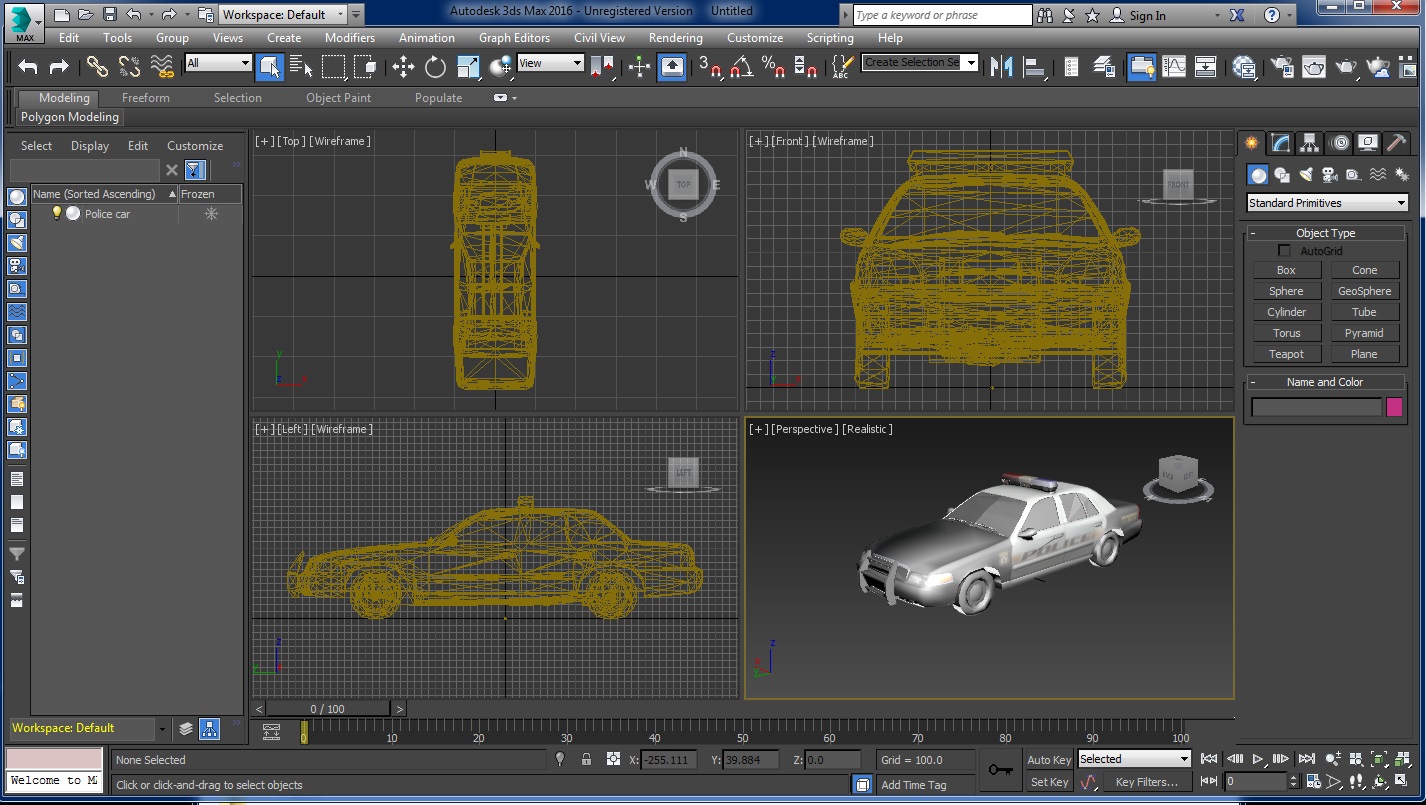

I wonder what should I do when I have a model that has more than one single texture map. For example, I downloaded a police car model that has more than one texture map: one for the car body, one for the siren, one for the glass. I want to import this model to Game Guru, and to my understanding I have to convert the textures to 3 separate files: _d, _n, _s.

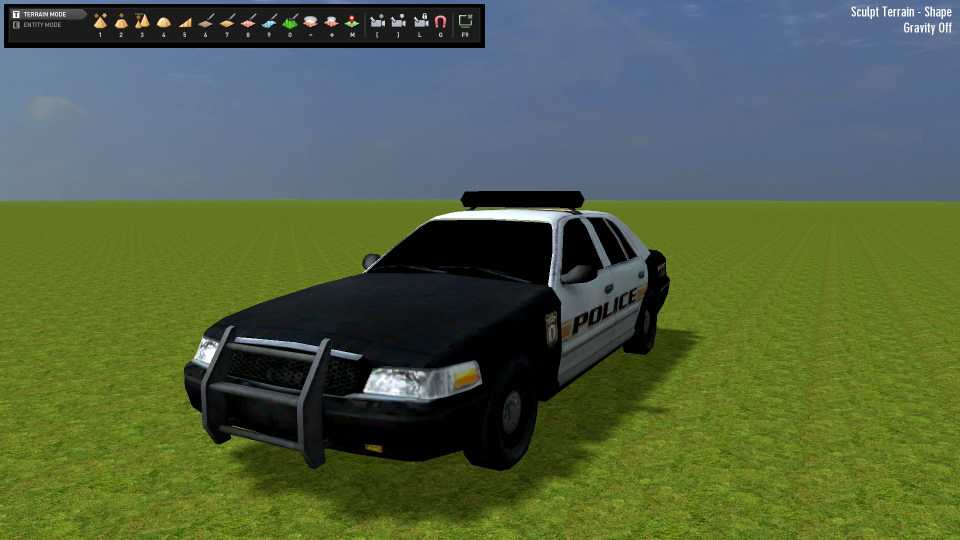

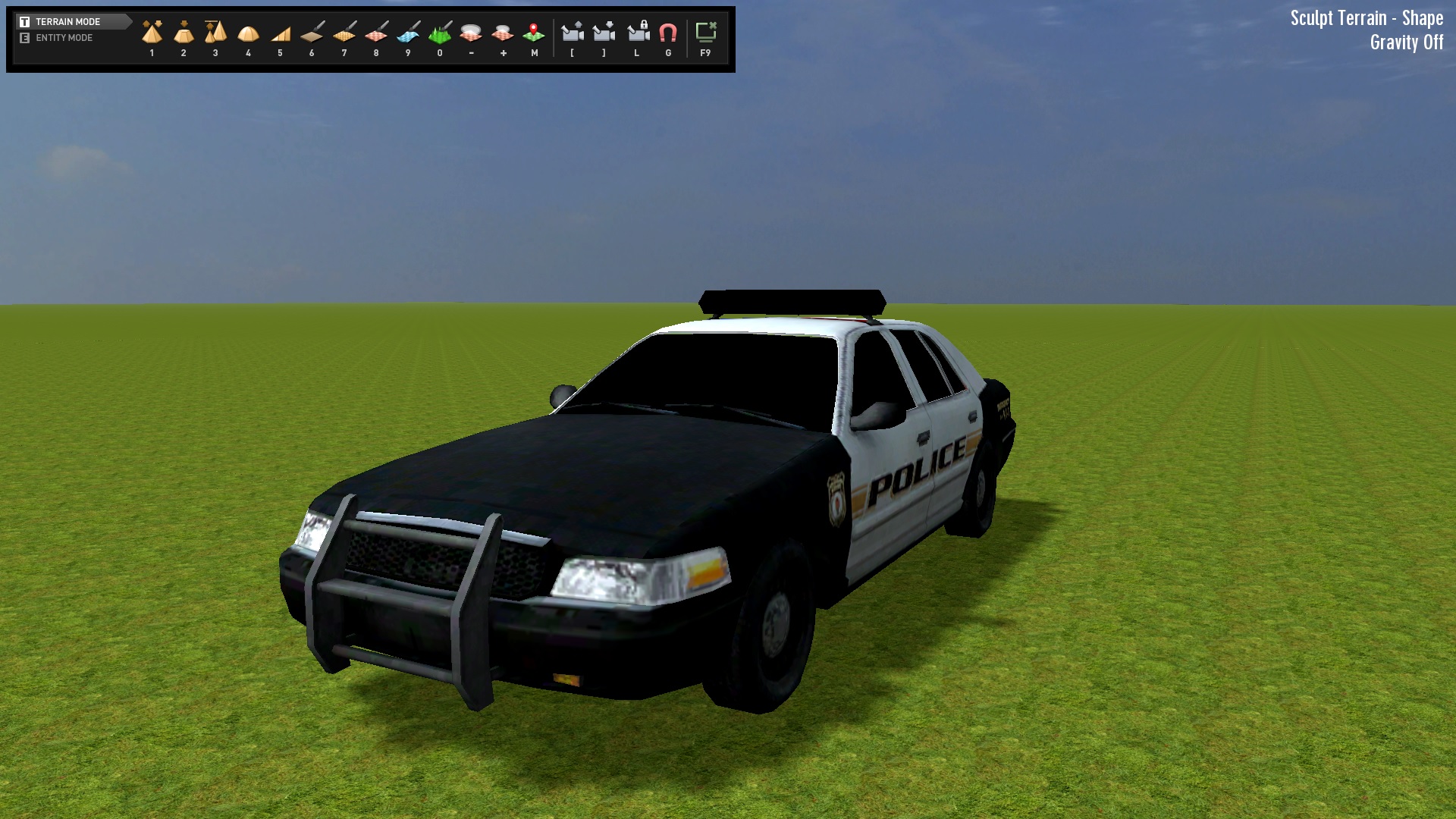

I converted only the body texture to _d, _n, _s and I attached a picture of how it looks in the game scene (the siren is black). How can I add the texture of the siren to the model, even though it comes as a separate texture file?

Thanks in advance!

Check that the path(s) in the .X file is correct. I usually do a search on texturefilename and check the paths and if necessary do a search/replace globally. Maybe also convert your TGA files to DDS (although this isn't normally a problem) and ensure the textured= in the FPE file is blank. Delete the old bin/dbo files and then rerun GG and select your model again. In the past, some of the models I exported from 3DS max also came out black so doing the above normally resolves this issue.

Usually this have too much to do with that issue, meanly with multi-texture items.
When you download item, usually it comes with their own paths, IE: E:\my police car\textures\my police car.png. So you've to reassign textures in max, point to yours paths.

3com

Thanks guys

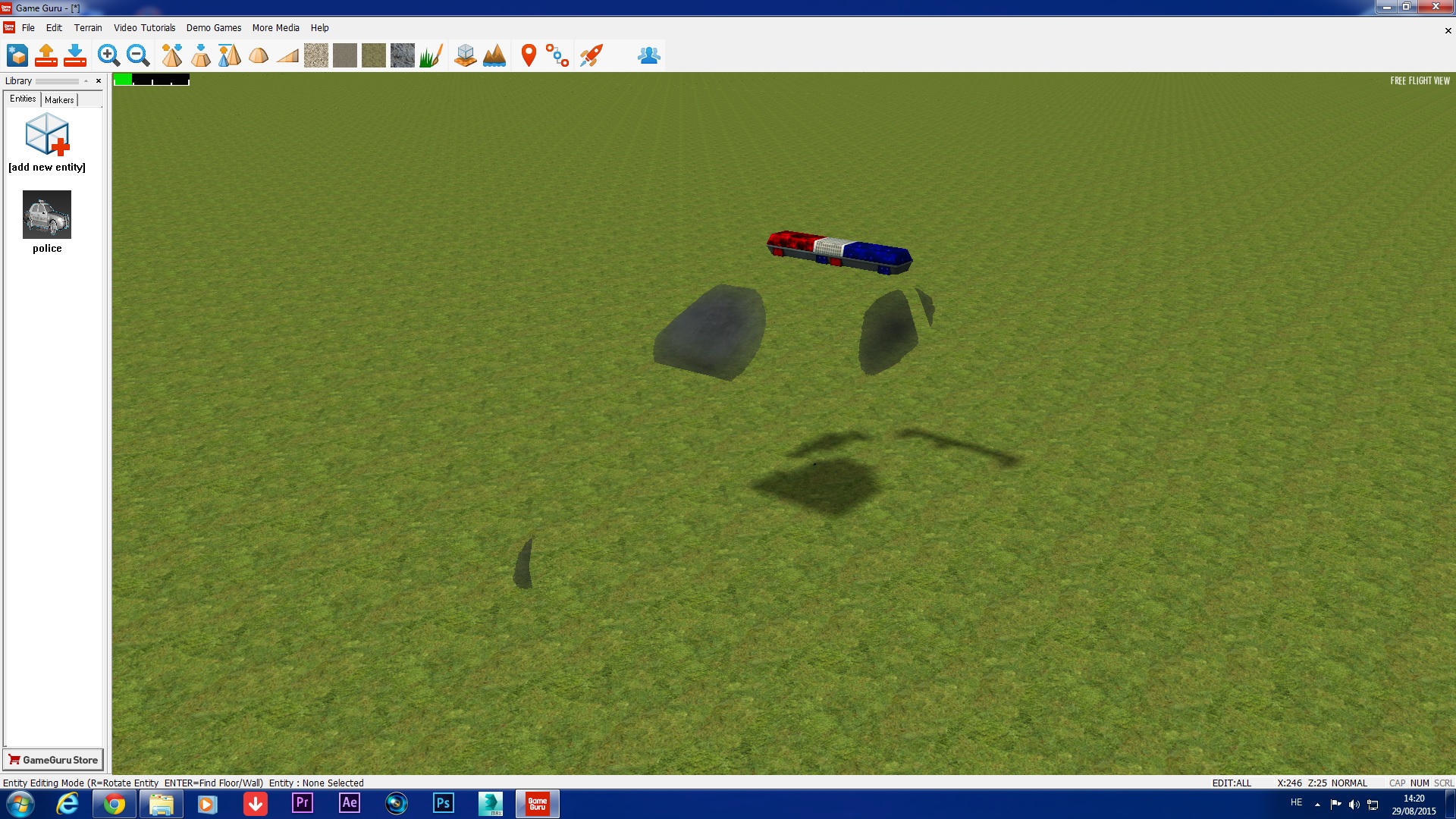

looks like its works but with this issue any idea?

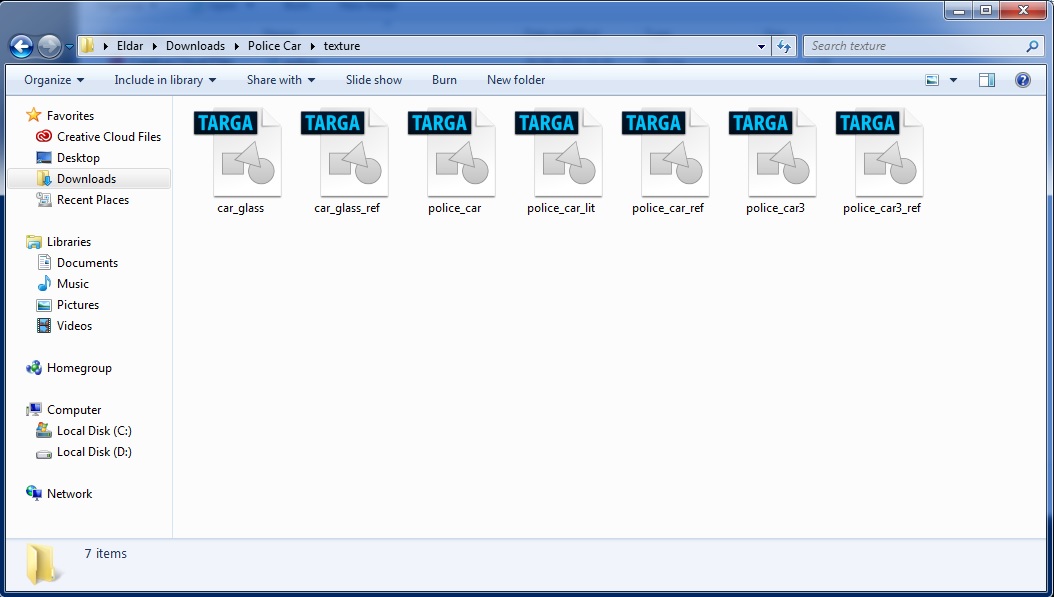

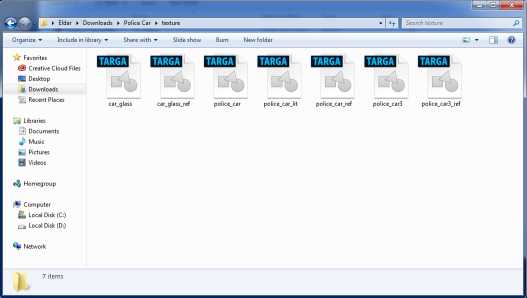

before the first post I took only the body texture and I converted to dds now I used the original tga files with the right path

and its looks like this.

use dxt1 compression for the .dds texture, unless making glass in it, then dxt 5 with and alpha mask for the glass.

Hi

I solve it with 2 other models I just used the original folder of the model with the tga textures

and I converted the obj file in 3d max to X files, and I added to the folder fpe code and in the line of the

texture I left it empty line and in the game guru its works perfect.

thanks.
