Product Chat / Do Heightmpas work now in gameguru?

Author
Message
Duchenkuke
GameGuru VBOTB Developer
8
Years of Service
User Offline
Joined: 7th Jun 2016
Location: Germany
Profile
Posted: 19th Jul 2020 15:53 Edited at: 19th Jul 2020 16:18
Link
According to this guide from belidos they did not work a year ago.

Did that change now? I guess not?..

https://steamcommunity.com/sharedfiles/filedetails/?id=1382429965

I think we desperately need heightmap support!
It would add a lot if done properly

https://sites.google.com/view/dkproductions/startseite
PM Email Website
Nerf Rhett Games
4
Years of Service
User Offline
Joined: 27th Jan 2020
Location: Mainland United States
Profile
Posted: 19th Jul 2020 17:01
Link
I agree 100%. Heightmaps would surely make entities a lot more realistic. I’m crossing my fingers for heightmap texture support in at least MAX.

-NR
Specs:
Building a new PC at the moment, so coming soon...

Some of the games I've made with GameGuru:


Websites:
Nerf Rhett Games: nerf-rhett-games.mozello.com
Outlaw Software: outlawsoftware.mozello.com
PM Email Website
Belidos
3D Media Maker
9
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 19th Jul 2020 17:57
Link
there is a way to get height maps working in gameguru by altering a shader, but i haven't a clue how, i think it was cybernesence who told me about it ages ago. But, no, as far as i'm aware by default height maps do not work.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Primary Laptop:
i5, NV1050 4GB, 8GB memory, 1x 1TB HDD, Win10.
Secondary Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 20th Jul 2020 02:00 Edited at: 20th Jul 2020 02:22
Link
I did stumble on a way that really makes the normals pop way better. It appears that the cobbles_N.dds normal file in the ebebank/texturesource folder, held the clue.
Dont know why, but it seems to make them look better.
By putting the height map info in the normal map alpha channel you can enhance the normals rendered in Game Guru.


The purple is the height map of the alpha channel. the higher the alpha value, the lower the normal will look. I know it sounds backwards, but I believe this is because of the way GG renders the normals:
Normal direction +X -Y +Z

Some results:


There is also this shader from cybernescence.
https://forum.game-guru.com/thread/219935
RIP
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

New:
Intel(R) Core(TM) i5-8400 CPU @ 2.81GHz, 12GB RAM, Nvidia gtx1050ti 4gb, Windows 10 Home 64bit, Screen resolution 1920 x 1080. System Passmark 3774




PM Email
Duchenkuke
GameGuru VBOTB Developer
8
Years of Service
User Offline
Joined: 7th Jun 2016
Location: Germany
Profile
Posted: 20th Jul 2020 14:28
Link
Thanks for the answers! Will check it out myke!

https://sites.google.com/view/dkproductions/startseite
PM Email Website
3com
10
Years of Service
User Offline
Joined: 18th May 2014
Location: Catalonia
Profile
Posted: 20th Jul 2020 17:39
Link
I have tried both systems in one, and this is what I've got:

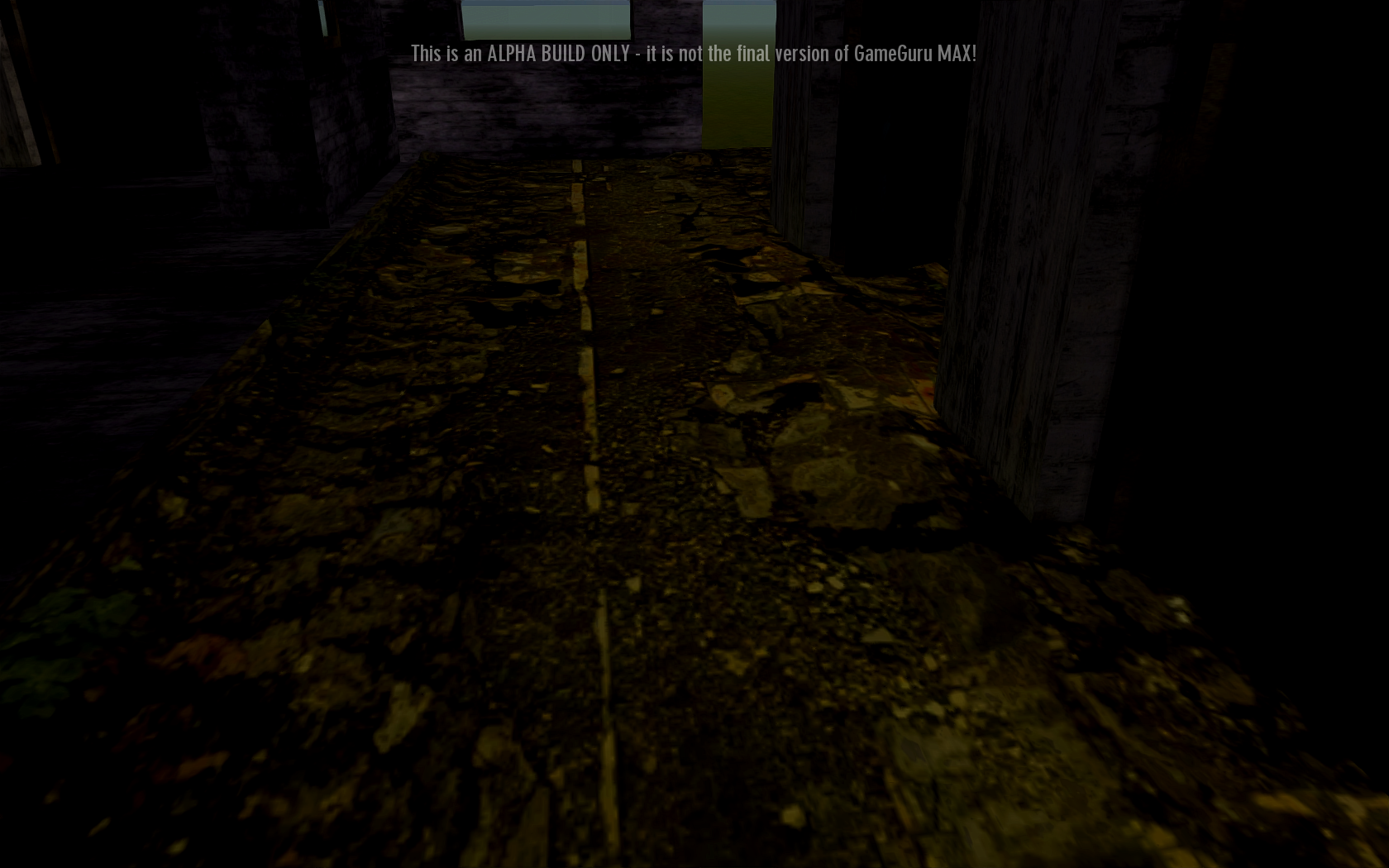

In GG

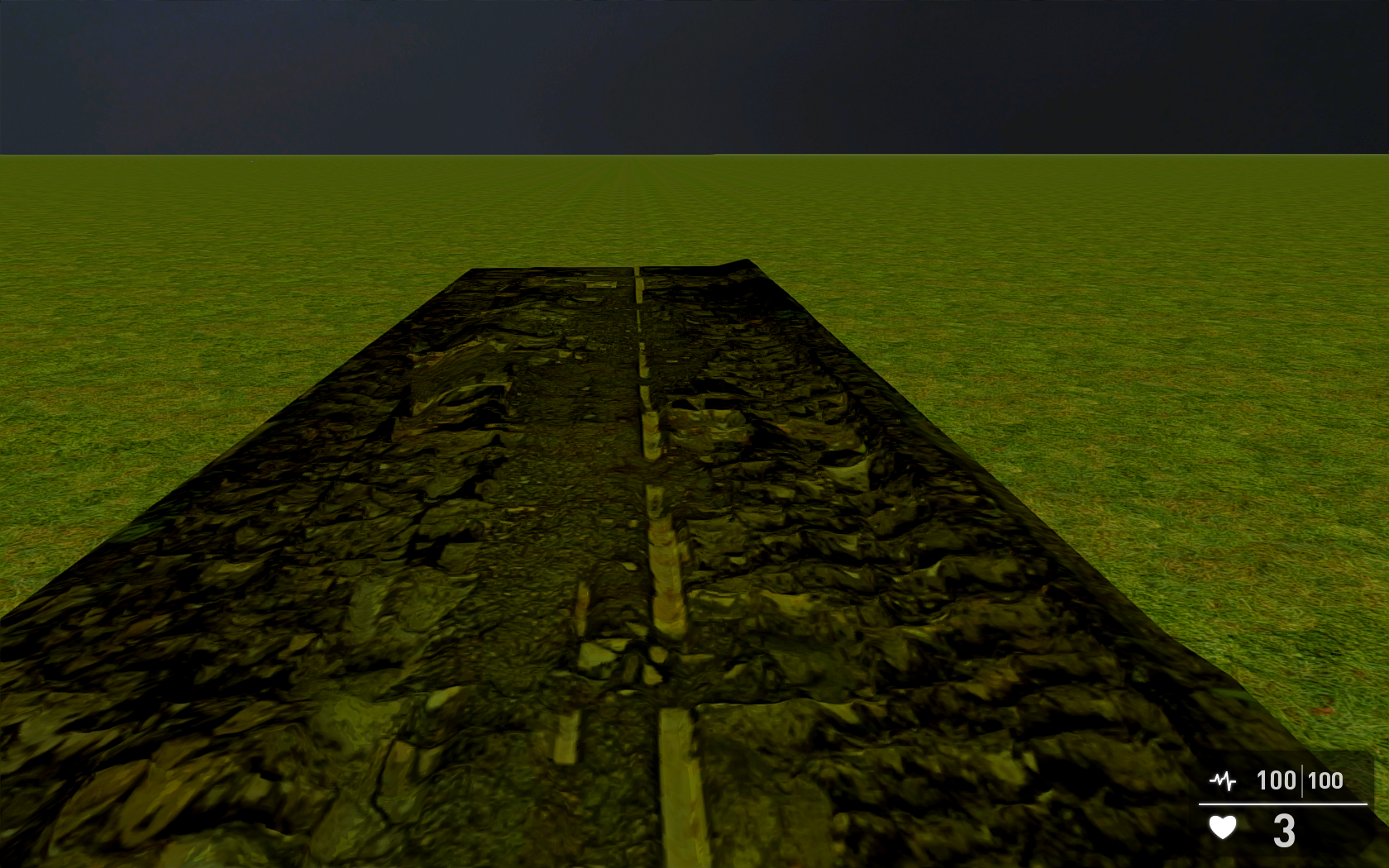

In GGMax


Laptop: Lenovo - Intel(R) Celeron(R) CPU 1005M @ 1.90GHz

OS: Windows 10 (64) - Ram: 4 gb - Hd: 283 gb - Video card: Intel(R) HD Graphics
cpu mark: 10396.6
2d graphics mark: 947.9
3d graphics mark: 8310.9
memory mark 2584.8
Disk mark: 1146.3
Passmark rating: 3662.4

PM
Duchenkuke
GameGuru VBOTB Developer
8
Years of Service
User Offline
Joined: 7th Jun 2016
Location: Germany
Profile
Posted: 20th Jul 2020 20:08
Link
okay cool, so it works..

how do you create a heightmap ?

https://sites.google.com/view/dkproductions/startseite
PM Email Website
Duchenkuke
GameGuru VBOTB Developer
8
Years of Service
User Offline
Joined: 7th Jun 2016
Location: Germany
Profile
Posted: 20th Jul 2020 20:21
Link
@3com how did you do that?

https://sites.google.com/view/dkproductions/startseite
PM Email Website
3com
10
Years of Service
User Offline
Joined: 18th May 2014
Location: Catalonia
Profile
Posted: 20th Jul 2020 20:48
Link
Quote: "how do you create a heightmap ?"

http://www.boundingboxsoftware.com/materialize/getkey.php

Quote: "3com how did you do that?"


Just follow Mike's steps.

Quote: "1- By putting the height map info in the normal map alpha channel you can enhance the normals rendered in Game Guru.
2- There is also this shader from cybernescence."


I've applied the shader to the entity via fpe file, is useful you read the shader link than myke provided above.


Laptop: Lenovo - Intel(R) Celeron(R) CPU 1005M @ 1.90GHz

OS: Windows 10 (64) - Ram: 4 gb - Hd: 283 gb - Video card: Intel(R) HD Graphics
cpu mark: 10396.6
2d graphics mark: 947.9
3d graphics mark: 8310.9
memory mark 2584.8
Disk mark: 1146.3
Passmark rating: 3662.4

PM
Wolf
Forum Support
17
Years of Service
User Offline
Joined: 8th Nov 2007
Location: Luxemburg
Profile
Posted: 20th Jul 2020 20:50
Link
You can create heightmaps manually using black and white filters alongside blurring and some manual edits.

Also not heightmapping at all but you can get a rather pronounced effect with strong normal maps. However auto generated ones will not work for this and look terrible. I generally advise anyone using GG to use very faint, subtle normalmaps for the best look.

Anyway: this was the effect I mentioned:

- A C Y T H I A N -
PM Email Website Skype
Duchenkuke
GameGuru VBOTB Developer
8
Years of Service
User Offline
Joined: 7th Jun 2016
Location: Germany
Profile
Posted: 20th Jul 2020 20:53
Link
Okay so.. Wolf, please tell me more about it. That looks very good!

https://sites.google.com/view/dkproductions/startseite
PM Email Website
Duchenkuke
GameGuru VBOTB Developer
8
Years of Service
User Offline
Joined: 7th Jun 2016
Location: Germany
Profile
Posted: 20th Jul 2020 20:57
Link
@3com

I now created a heightmap with the tool you sent. (thanks by the way

What do I do now?

https://sites.google.com/view/dkproductions/startseite
PM Email Website
Duchenkuke
GameGuru VBOTB Developer
8
Years of Service
User Offline
Joined: 7th Jun 2016
Location: Germany
Profile
Posted: 20th Jul 2020 21:06 Edited at: 20th Jul 2020 23:17
Link
no matter what I do, it doesnt work.

Even cybernescence's heightmapped models he posted in his thread don't show the effect...
Something is wrong! And I have no idea what it is.



The shader has been added to the effectbank/reloaded folder, I did everything that needed to be done but it still does not work..

https://sites.google.com/view/dkproductions/startseite

Attachments

Login to view attachments
PM Email Website
3com
10
Years of Service
User Offline
Joined: 18th May 2014
Location: Catalonia
Profile
Posted: 20th Jul 2020 22:04
Link
BTW the way I did is not the goal Mikel pointed out, but 2 different ways to achieve it. Anyway, as Ciber pointed out you need the height map, to work fine, via shader.

The other option implied to put the height map info in the normal map alpha channel.
Do you do so?

And I just play with the 2 options in one as I pointed above, just as the sake of try, to see what happens then, and the final result is good.
Laptop: Lenovo - Intel(R) Celeron(R) CPU 1005M @ 1.90GHz

OS: Windows 10 (64) - Ram: 4 gb - Hd: 283 gb - Video card: Intel(R) HD Graphics
cpu mark: 10396.6
2d graphics mark: 947.9
3d graphics mark: 8310.9
memory mark 2584.8
Disk mark: 1146.3
Passmark rating: 3662.4

PM
Duchenkuke
GameGuru VBOTB Developer
8
Years of Service
User Offline
Joined: 7th Jun 2016
Location: Germany
Profile
Posted: 20th Jul 2020 22:09 Edited at: 20th Jul 2020 22:52
Link
In cyber's thread about Heightmaps he posted some assets that have everything they need for the heightmap effect.
But it doesnt show in gameguru!
What am I doing wrong ??
Quote: "
The other option implied to put the height map info in the normal map alpha channel.
Do you do so?"


i have no idea how to do that.

I did it that way and it looked terrible ( no heightmap effect too)

1: open normal map
2: make normal map half transparent
3: add heightmap texture to the normal map
4:save as .dds or .png - none of them worked.


EDIT: I loaded the shaders again now, and this time i deleted the .blob files - it works now!

Now I will test more and send the results soon!

https://sites.google.com/view/dkproductions/startseite
PM Email Website
3com
10
Years of Service
User Offline
Joined: 18th May 2014
Location: Catalonia
Profile
Posted: 20th Jul 2020 23:17
Link
Quote: "i have no idea how to do that. "

https://www.youtube.com/watch?v=Hsq1hVQQLHM

The file is not the same, but the process is the same.
Laptop: Lenovo - Intel(R) Celeron(R) CPU 1005M @ 1.90GHz

OS: Windows 10 (64) - Ram: 4 gb - Hd: 283 gb - Video card: Intel(R) HD Graphics
cpu mark: 10396.6
2d graphics mark: 947.9
3d graphics mark: 8310.9
memory mark 2584.8
Disk mark: 1146.3
Passmark rating: 3662.4

PM
Duchenkuke
GameGuru VBOTB Developer
8
Years of Service
User Offline
Joined: 7th Jun 2016
Location: Germany
Profile
Posted: 20th Jul 2020 23:20
Link

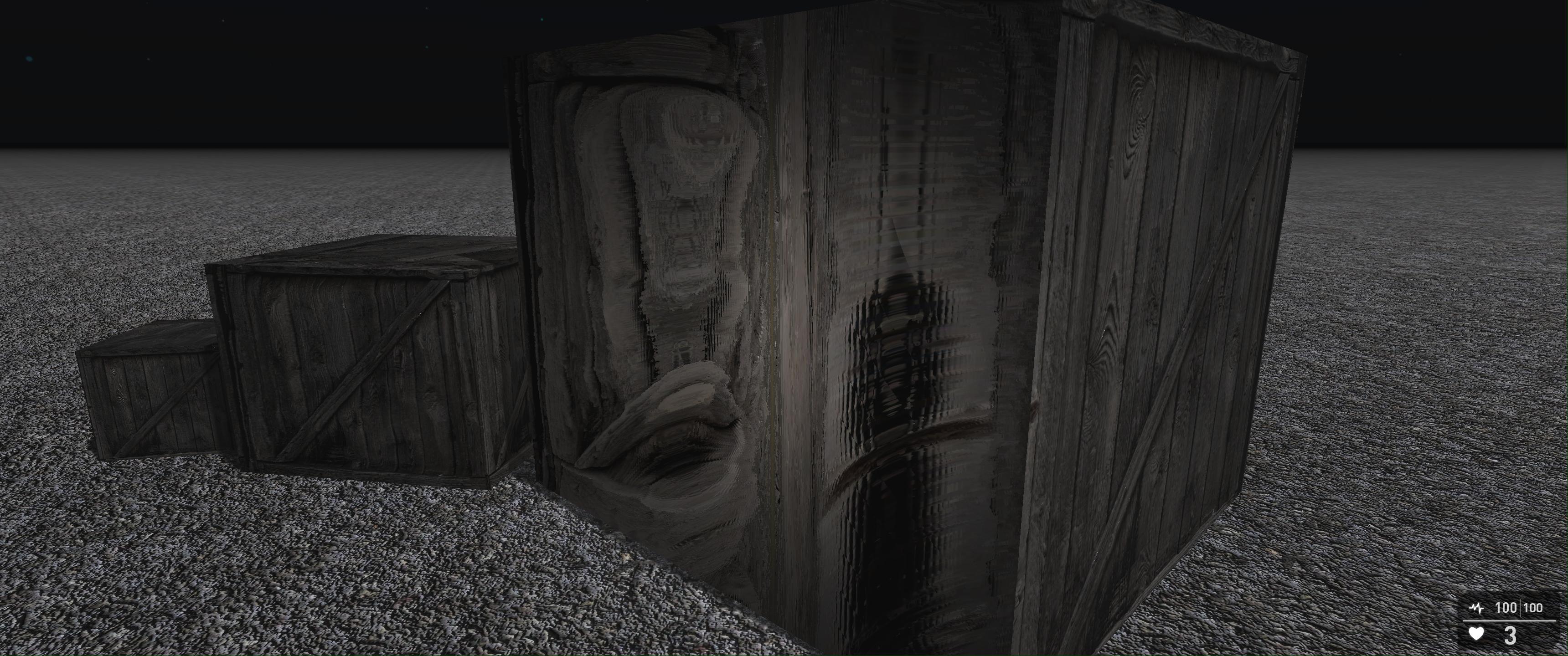

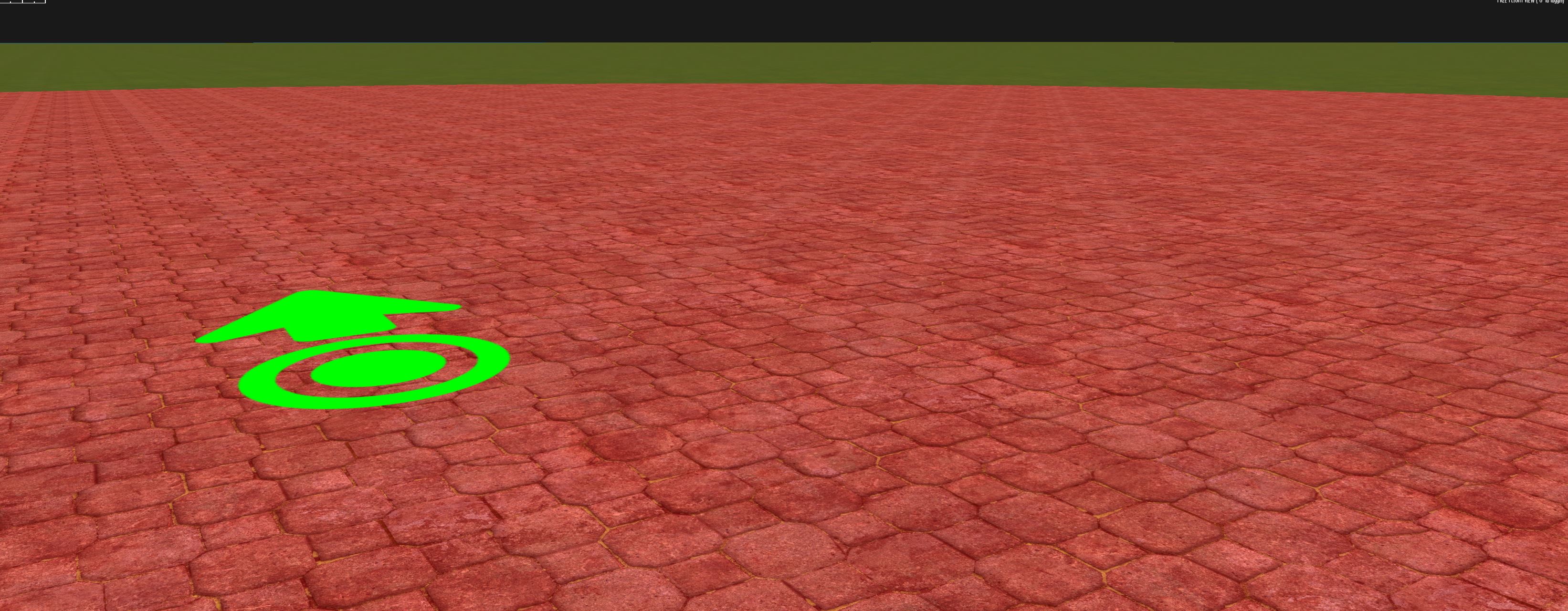

This is now the result. Has issues obviously and is no actual solution.
This is the way how cybernescence did it with cobble floors - seems that it doesnt work for all types of entities.

@pirate myke

Can you please tell me exactly step by step how you did your texture?
I have read it many times now but I don't know how to actually do it.

https://sites.google.com/view/dkproductions/startseite
PM Email Website
Duchenkuke
GameGuru VBOTB Developer
8
Years of Service
User Offline
Joined: 7th Jun 2016
Location: Germany
Profile
Posted: 24th Jul 2020 11:01 Edited at: 24th Jul 2020 15:20
Link
Maybe one day it will be added alongside better looking normal maps.

https://sites.google.com/view/dkproductions/startseite
PM Email Website
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 25th Jul 2020 04:19 Edited at: 25th Jul 2020 06:10
Link
@Duchenkuke:
First thing I need to ask is if you backed up your apbr_core file and replace it with the one supplied in the thread?
Also a rebuild of the shaders would be needed.

Restart Game Guru and try the test files from Cyber first to be sure those work.

Files I used for the below pictures are attached below.

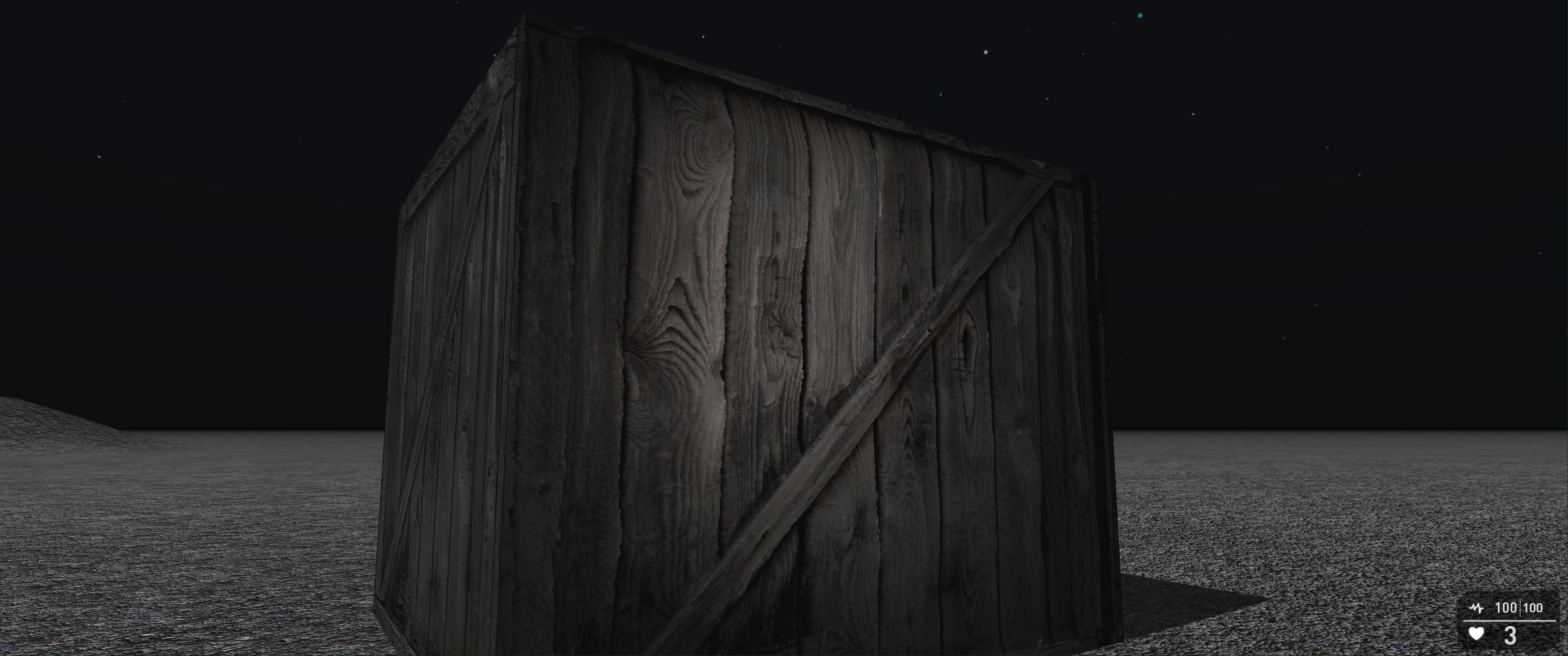

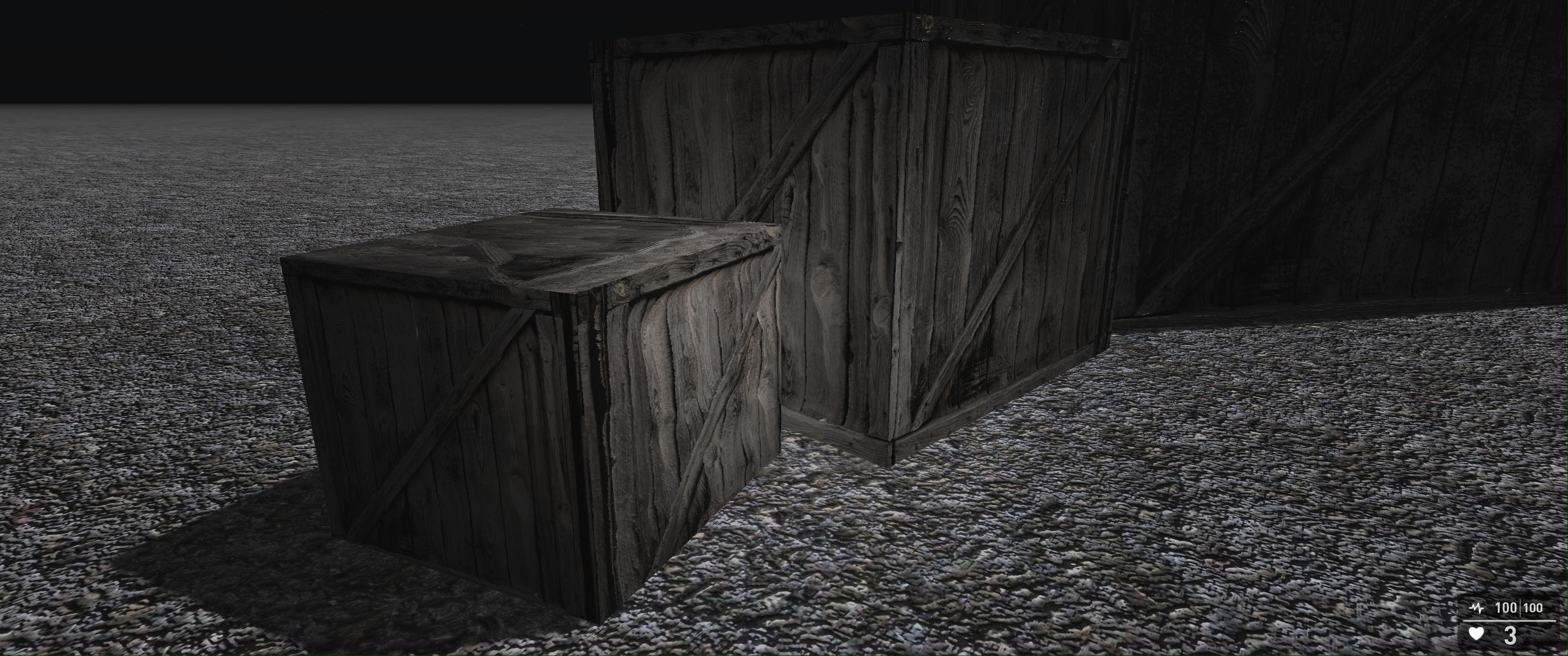

Object on the left is real geometry, object on the right is a plane cube.

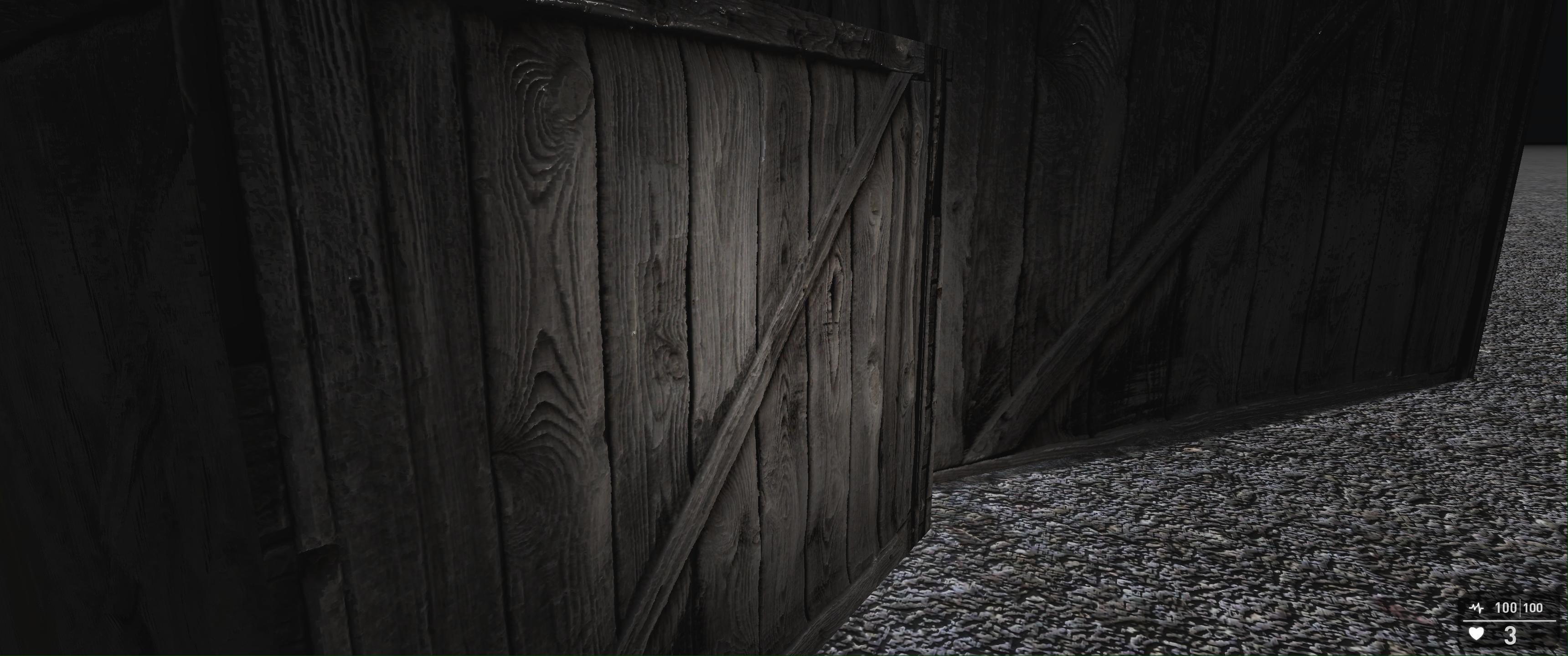

Object on the right is real geometry, object on the left is a plane cube.

Checked out the open source program, Awesome Bump. it generates the normal the way you need upon export. Applied the textures to the basic cube again. https://github.com/kmkolasinski/AwesomeBump
RIP
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

New:
Intel(R) Core(TM) i5-8400 CPU @ 2.81GHz, 12GB RAM, Nvidia gtx1050ti 4gb, Windows 10 Home 64bit, Screen resolution 1920 x 1080. System Passmark 3774




Attachments

Login to view attachments
PM Email
Duchenkuke
GameGuru VBOTB Developer
8
Years of Service
User Offline
Joined: 7th Jun 2016
Location: Germany
Profile
Posted: 25th Jul 2020 08:50
Link
Thanks myke! Yea I did everything thats needed, cyber's entities work. Now i will check out the software.

https://sites.google.com/view/dkproductions/startseite
PM Email Website
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 25th Jul 2020 14:50
Link
Excellent.
Your welcome.
RIP
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

New:
Intel(R) Core(TM) i5-8400 CPU @ 2.81GHz, 12GB RAM, Nvidia gtx1050ti 4gb, Windows 10 Home 64bit, Screen resolution 1920 x 1080. System Passmark 3774




PM Email
GoDevils
10
Years of Service
User Offline
Joined: 24th Sep 2014
Location: Arizona USA
Profile
Posted: 11th Aug 2020 23:12
Link
@ 3com

Thanks much for the Bounding Box Software tip.
www.boundingboxsoftware.com

Materialize looks like an awesome texture prep application.

Thanks again
"THERE IS NO SPOON"

AMD 6300 6 core 3.5 ghz, Windows 10, 8GB ram, GTX 1060 2GB ram
PM Email
3com
10
Years of Service
User Offline
Joined: 18th May 2014
Location: Catalonia
Profile
Posted: 12th Aug 2020 11:11
Link
@ GoDevils
Glad to help.
Laptop: Lenovo - Intel(R) Celeron(R) CPU 1005M @ 1.90GHz

OS: Windows 10 (64) - Ram: 4 gb - Hd: 283 gb - Video card: Intel(R) HD Graphics
cpu mark: 10396.6
2d graphics mark: 947.9
3d graphics mark: 8310.9
memory mark 2584.8
Disk mark: 1146.3
Passmark rating: 3662.4

PM
Back to top

Login to post a reply

Server time is: 2024-11-23 15:13:24
Your offset time is: 2024-11-23 15:13:24
