I'm working on my first multi-textured model in PBR; it's a poster inside a box with a perspex front. The reasoning behind breaking it up into two materials (one for the poster, one for the box) is so that others can simply paste their own poster image in to the _color and create their own.

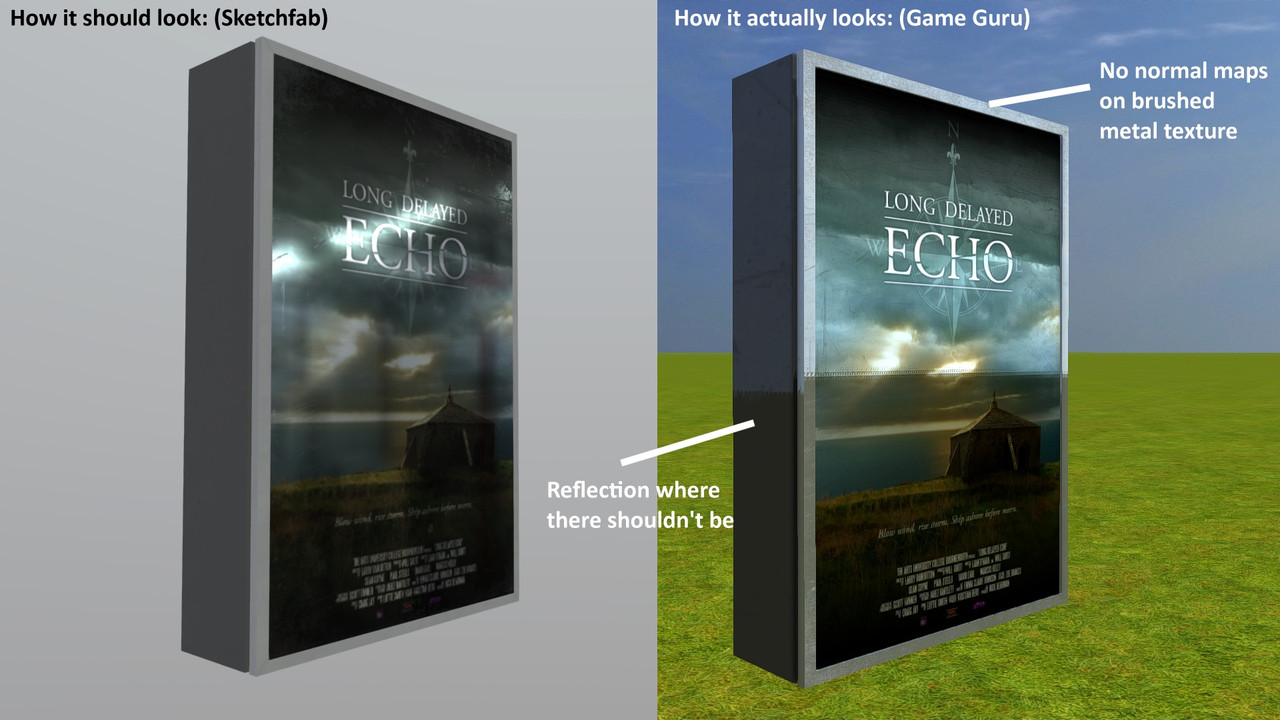

Getting Game Guru to recognise two materials was fine, and I left "textured =" blank in the fpe., it even registers the two _color textures and displays them fine. But it's currently using the _gloss and _metalness maps from the poster material for the entire model, ignoring the _gloss and _metalness maps that exist for the box material. It's also totally ignoring the _normal map of the box material too, which sound give the edges of the box a brushed metal effect.

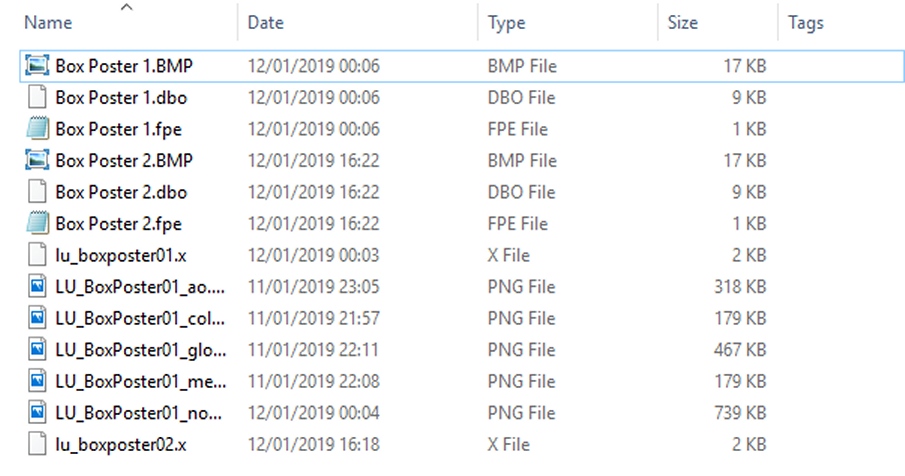

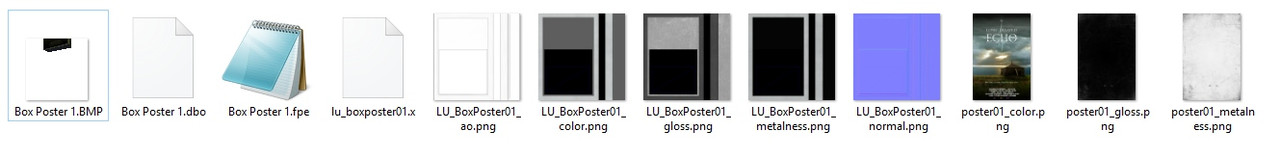

For the avoidance of doubt, here are all the files I'm using.



Am I doing something wrong? Or is it Game Guru?

EDIT: The shader currently used is apbr_basic.fx - could it be that?

AE
PM Email
Belidos
3D Media Maker
9
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 12th Jan 2019 10:28
Link
Yep i reported this months ago, for multitexture it uses all the color files, but only the one set of additional textures, even the normal maps.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
Avenging Eagle
19
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Profile
Posted: 12th Jan 2019 11:54
Link
This makes me sad.

Thanks for flagging though, Belidos.

AE
PM Email
GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Profile
Posted: 12th Jan 2019 12:31
Link
Just make then 2 separate entities for the moment to get around it
Welcome to the real world!
Main PC - Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
Test PC - Windows 10 Pro x64 - G4400 @3.3GHz - 16GB DDR3 RAM - GeForce GTX 950 2GB - 500GB SSD
Laptop - Helios 300 Predator - i7 7700HQ - 32GB - Nvidia GTX1060 6GB - 525GB M2 - 500 SSD - 17.3" IPS LED Panel - Windows 10 Pro x64
Various Tutorials by me
PM Email Website
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 12th Jan 2019 13:47
Link
Have you tried listing your textures like this in the fpe file?
RIP
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

New:
Intel(R) Core(TM) i5-8400 CPU @ 2.81GHz, 12GB RAM, Nvidia gtx660, Windows 10 Home 64bit, Screen resolution 1920 x 1080. System Passmark 3774




PM Email
Belidos
3D Media Maker
9
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 12th Jan 2019 14:53
Link
None of that made any sense to me, no idea where you would find all the material numbers and names etc. And to be quite frank we shouldnt have to mess around that much to get an entity to show the right textures.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 12th Jan 2019 15:20 Edited at: 12th Jan 2019 15:23
Link
If you take and import a multi textured object into the importer. Once you define all your textures, and save it out. You will see these listings in it.

I think it was to get the media to write to standalone, before the .FPP function was introduced.

Not much has really been said about either of these functions, so they remain a GG mystery without a lot of trial and error.

Now if you make your own models and export texture out with your model, Game Guru reads 90% of the textures from the model itself now. This seems to work to a point, until you start Light mapping your level. Then it is very broken often Hiding your entities completely in baked lighting mode.
RIP
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

New:
Intel(R) Core(TM) i5-8400 CPU @ 2.81GHz, 12GB RAM, Nvidia gtx660, Windows 10 Home 64bit, Screen resolution 1920 x 1080. System Passmark 3774




PM Email
Avenging Eagle
19
Years of Service
User Offline
Joined: 2nd Oct 2005
Location: UK
Profile
Posted: 12th Jan 2019 16:58 Edited at: 12th Jan 2019 16:59
Link
Quote: "Just make then 2 separate entities for the moment to get around it"

That's a compromise I'm not prepared to make, in this case. Besides, no one wants to spend ages messing around perfectly lining up posters with boxes.

Pirate Myke, has the above method you mentioned worked for you? Because I tried it and it didn't work for me, although I didn't know what or how to define the different materials.

What's really weirding me out now is that, despite deleting the poster textures and their _metalness and _gloss maps, the models still show not only show the _color poster textures, but are still using the poster _metalness and _gloss maps.



I literally deleted them from the folder!



I assume that means they are cached somewhere? FPSC used to have a cleaner to delete cached files and .dbo's - does GG have one too?

AE
PM Email
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 12th Jan 2019 17:26 Edited at: 12th Jan 2019 21:49
Link
You can use the same one. But I don't recommend it any more by the batch method. A lot of the DLC only comes in DBO format now and wiping that out would mean a re download of your purchased DLC that would be affected.

I still make atlas sheets as I have the desire to lightmap 90% of the time. I will give this a test again as I thought the textures were picked up from the model first, then looks at the FPE file references.

Can you email me the X file to one of them to myke1net@hotmail.com



Tested with an FBX file with 3 textures in it.











Metalness - black is dialectric, White is metal

Gloss - Black is shiney, white is rough

Roughness - Black is Rough, White is shiny Not used in GG

Displacement (height) - White is height, black is lows. Nit fully implemented in GG

Normal direction +X -Y +Z
RIP
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

New:
Intel(R) Core(TM) i5-8400 CPU @ 2.81GHz, 12GB RAM, Nvidia gtx660, Windows 10 Home 64bit, Screen resolution 1920 x 1080. System Passmark 3774




PM Email
