3rd Party Models/Media Chat / [SOLVED] Blender export to X file format

Author
Message
VjColt
User Banned
Posted: 28th Dec 2018 11:10

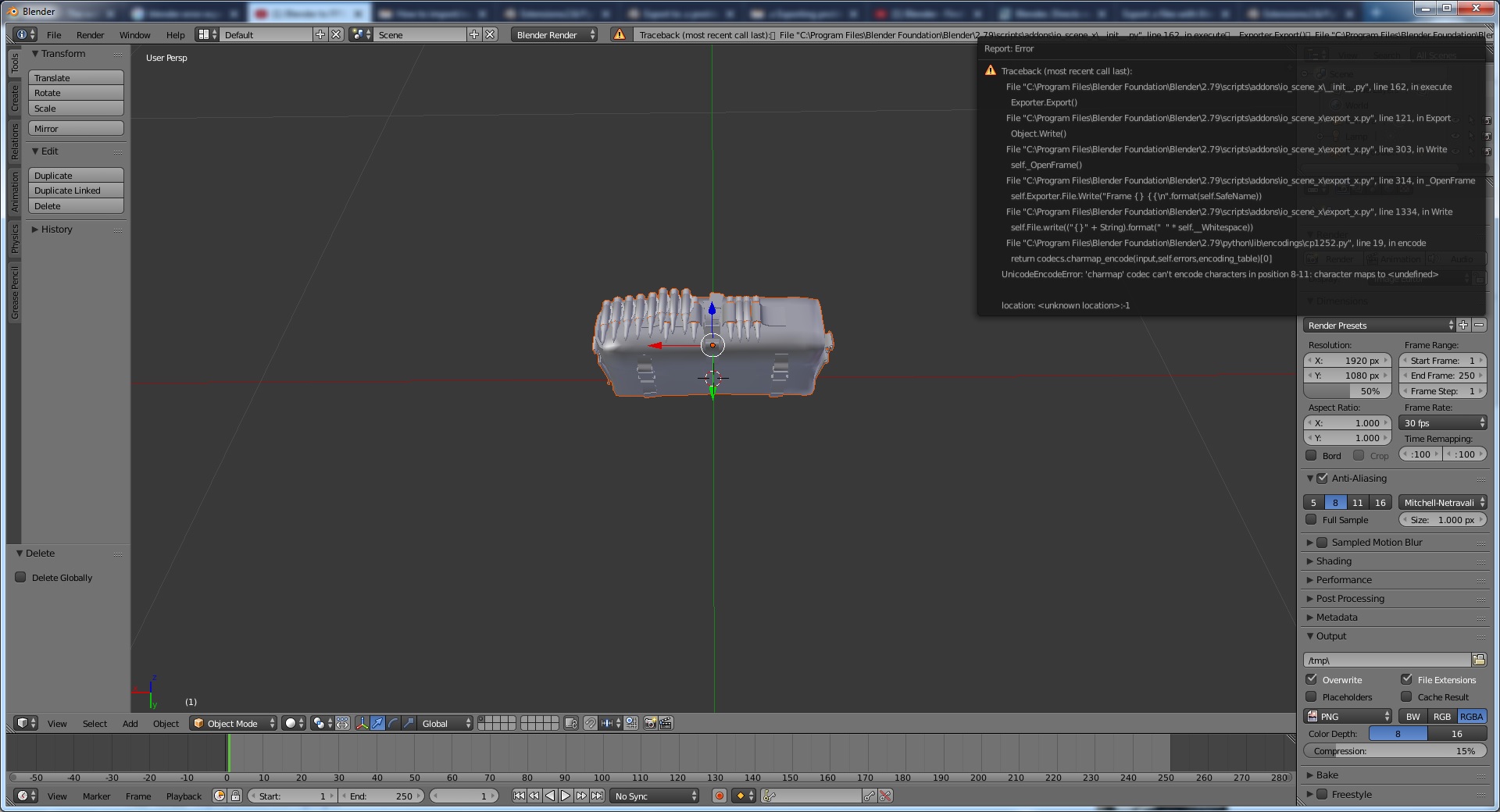

Its not gg qustion but i need help with this

The author of this post has marked a post as an answer.

Go to answer

Attachments

Login to view attachments
Belidos
3D Media Maker
9
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Posted: 28th Dec 2018 11:14 Edited at: 28th Dec 2018 11:15
What's the question? What are you trying to do? What have you done? What steps did you use?

It looks like an issue with your export add-on, but can't really help you without information.

If you email me the .blend file you are using i can take a look and see if there are any issues for you.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.

Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.

Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
VjColt
User Banned
Posted: 28th Dec 2018 11:21 Edited at: 28th Dec 2018 11:22
I use standart export to X addon in blender, but it doesnt work.
blender 2.79b
Here blend file:

Attachments

Login to view attachments
Belidos
3D Media Maker
9
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Posted: 28th Dec 2018 11:58
Great, i'll take a look. Could you also take a picture of your export settings and post it for me, so i can see if you've done anything wrong there?

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.

Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.

Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
Belidos
3D Media Maker
9
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Posted: 28th Dec 2018 12:12 Edited at: 28th Dec 2018 12:24
This post has been marked by the post author as the answer.
OK, found the issue, see the picture below, that line in the red circle, that's because you have parented the objects to an empty by the looks of it, the blender exporter doesn't like exporting empty objects ...



It's simple to fix, you can either make sure you ONLY select the actual object meshes (using Shift+Right Click each one) and not the empty, and it should export without error, or you can remove the empty object.

To remove the empty object just right click the line that's circled in the outliner in the picture above, and select delete, it should now look like the picture below...




Now you can make sure all of your objects are selected (either press A to highlight everything, or Shift+Right Click everything in the scene), and export as normal.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.

Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.

Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.

Attachments

Login to view attachments
synchromesh
Forum Support
10
Years of Service
User Offline
Joined: 24th Jan 2014
Location:
Posted: 28th Dec 2018 12:23
Moved to 3rd Party Models/Media chat
