3rd Party Models/Media Chat / Settings for DDS files

Author
Message
Rafael Memmel
6
Years of Service
User Offline
Joined: 29th Oct 2018
Location:
Posted: 1st Dec 2018 21:56
What is the correct configuration to save textures for terrain in dds?

Attachments

Login to view attachments
PM
Rafael Memmel
6
Years of Service
User Offline
Joined: 29th Oct 2018
Location:
Posted: 1st Dec 2018 21:57

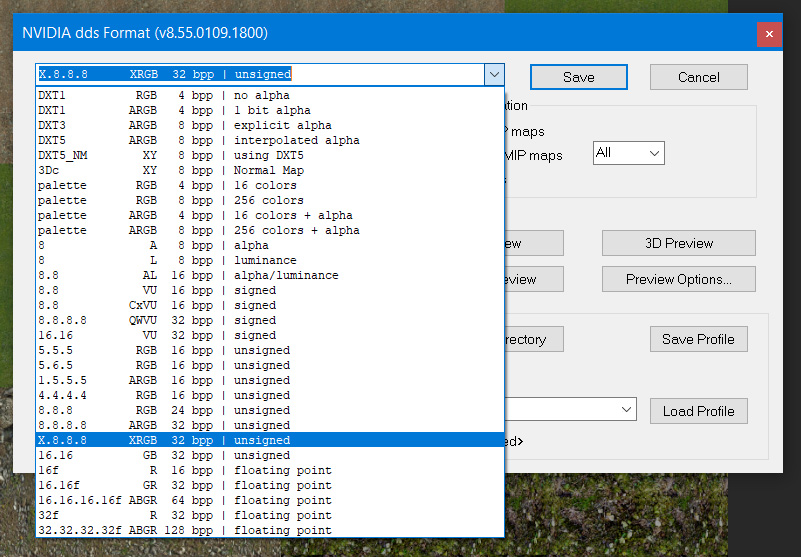

Herre the options...

Attachments

Login to view attachments
PM
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Posted: 2nd Dec 2018 00:46
For the terrain Diffuse texture use dxt5 compression or the 8.8.8.8 ARGB 32 bit unsigned.
The alpha channel in this map is used for the gloss in the texture.

For the Normal map use the 8.8.8.8 ARGB 32 bit unsigned option
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Posted: 2nd Dec 2018 14:56
I took the liberty to move this thread to a more suitable home
Welcome to the real world!
Main PC - Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
Test PC - Windows 10 Pro x64 - G4400 @3.3GHz - 16GB DDR3 RAM - GeForce GTX 950 2GB - 500GB SSD
Laptop - Helios 300 Predator - i7 7700HQ - 32GB - Nvidia GTX1060 6GB - 525GB M2 - 500 SSD - 17.3" IPS LED Panel - Windows 10 Pro x64
Various Tutorials by me
Rafael Memmel
6
Years of Service
User Offline
Joined: 29th Oct 2018
Location:
Posted: 5th Dec 2018 19:36
Thank you! Some video tutorial to open a texture with photoshop and edit it?
PM
OldFlak
GameGuru TGC Backer
9
Years of Service
User Offline
Joined: 27th Jan 2015
Location: Tasmania Australia
Posted: 5th Dec 2018 22:20 Edited at: 5th Dec 2018 22:21
Hi, to open\edit a file that is already in dds format or to save them out, you will need the nVidia Plugin.

On my system the nVidia tools work fine for saving out the various .dds maps, but tend to crash when trying to use the Normal tool, so when making normal maps by hand I use The Gimp which has similar tools out there.

Bare in mind that .dds is a lossy format, so the more times a .dds map is opened\re-saved the more detail it loses, so best to make the file in png and save as .dds map when you happy with it.

HTH

Reliquia....
aka OldFlak
Intel(R) Core(TM) i3-4160 @ 3,60GHz. 8GB Ram. NVidia GeForce GTX 750. Acer 24" Monitors x 2 @ 1920 x 1080. Windows 10 Pro 64-bit.
PM
