3rd Party Models/Media Chat / Texture size tests 4k down to 128kb

Author
Message
GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Posted: 2nd Sep 2018 15:48 Edited at: 2nd Sep 2018 16:01
Hi Guys

I have just done a test to see what differences texture sizes make to the look of an asset going from 4096x4096 down to 128x128, emissive textures start to wobble at 512 but what has surprised me is 128x128 looks ok for distant objects.

4096x4096 = 8Mb DDS
2048x2048 = 2Mb DDS
1024x1024 = 512Kb DDS
512x512 = 128Kb DDS
256x256 = 32.1Kb DDS
128x128 = 8.12Kb DDS

Normal Maps flake out below 1024, what I have not tried is a 1024 normal with 128kb texture

And just so you know the 'popping' effect is the default cubemap not the asset (I turned off the rotation)

Welcome to the real world!
Main PC - Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
Test PC - Windows 10 Pro x64 - G4400 @3.3GHz - 16GB DDR3 RAM - GeForce GTX 950 2GB - 500GB SSD
Laptop - Helios 300 Predator - i7 7700HQ - 32GB - Nvidia GTX1060 6GB - 525GB M2 - 500 SSD - 17.3" IPS LED Panel - Windows 10 Pro x64
Various Tutorials by me
granada
Forum Support
22
Years of Service
User Offline
Joined: 27th Aug 2002
Location: United Kingdom
Posted: 2nd Sep 2018 15:59
That's a good test with interesting results

Dave
Windows 10 Pro 64 bit
GeForce GTX 1050 Ti
AMD FX (tm)-9590 Eight-core Processor
31.96 GB RAM
1920x1080,60 Hz
PM
GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Posted: 2nd Sep 2018 16:07 Edited at: 2nd Sep 2018 16:09
thanks Dave

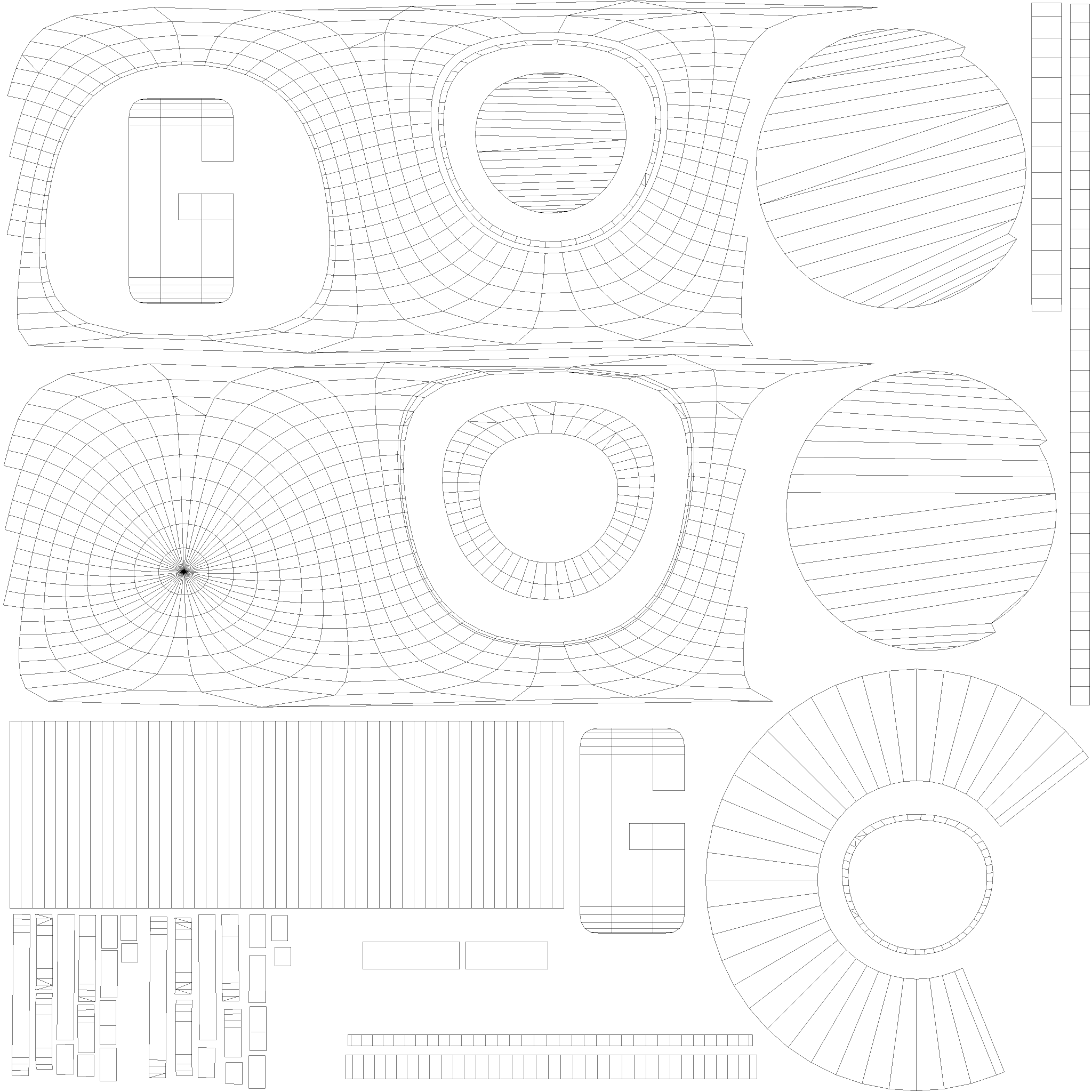

here is the UV map for the ORB, I have also added the 1024 normal map to the 128 texture set and it worked


Welcome to the real world!
Main PC - Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
Test PC - Windows 10 Pro x64 - G4400 @3.3GHz - 16GB DDR3 RAM - GeForce GTX 950 2GB - 500GB SSD
Laptop - Helios 300 Predator - i7 7700HQ - 32GB - Nvidia GTX1060 6GB - 525GB M2 - 500 SSD - 17.3" IPS LED Panel - Windows 10 Pro x64
Various Tutorials by me

Attachments

Login to view attachments
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Posted: 2nd Sep 2018 17:18 Edited at: 2nd Sep 2018 17:23
Nice. I thought I had posted this link before on texel density. But I am sure it's buried somewhere in the firums.

https://www.artstation.com/artwork/qbOqP
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Posted: 2nd Sep 2018 18:14
Awsome Myke thanks for the link
Welcome to the real world!
Main PC - Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
Test PC - Windows 10 Pro x64 - G4400 @3.3GHz - 16GB DDR3 RAM - GeForce GTX 950 2GB - 500GB SSD
Laptop - Helios 300 Predator - i7 7700HQ - 32GB - Nvidia GTX1060 6GB - 525GB M2 - 500 SSD - 17.3" IPS LED Panel - Windows 10 Pro x64
Various Tutorials by me
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Posted: 2nd Sep 2018 18:26
You are wlecome.
That is the problem with trying to make things for every situation you can come up with. Some might have them closer, some further. Some may scale the object totally destroying the texel density for that object on screen.

I supply large maps with my stuff, to give the users the option to scale the textures down for the situation they need it for.

When optimizing stuff for levels, it is nice to have the large maps to reduce down. Scaling up is normally a desaster.
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Posted: 2nd Sep 2018 18:45
Yes I think I will stick with 2048x2048, I think I will supply a zip with the maps in PNG too this will allow a user to resize maps without losing quality, DDS becomes very pixelated when you resize it.
Yes I agree do not scale up only scale down at 2 by 2 format. I will ponder on this more, PNG is acceptable for GG but the GPU better utilises DDS textures.
Welcome to the real world!
Main PC - Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
Test PC - Windows 10 Pro x64 - G4400 @3.3GHz - 16GB DDR3 RAM - GeForce GTX 950 2GB - 500GB SSD
Laptop - Helios 300 Predator - i7 7700HQ - 32GB - Nvidia GTX1060 6GB - 525GB M2 - 500 SSD - 17.3" IPS LED Panel - Windows 10 Pro x64
Various Tutorials by me
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Posted: 3rd Sep 2018 00:12

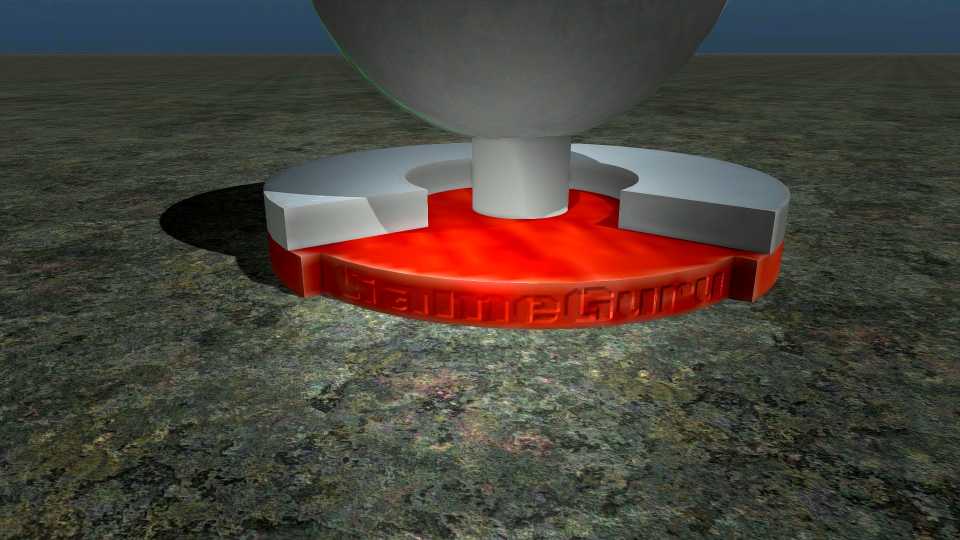

Here is some orbs I modified from the Quixel orb.
Chrome texture is 4K the other are 1K.
The skybox is 16bit pictures, thou I am not sure if GG is making A 16bit reflection cube map for it.

Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.
