Hi Guys

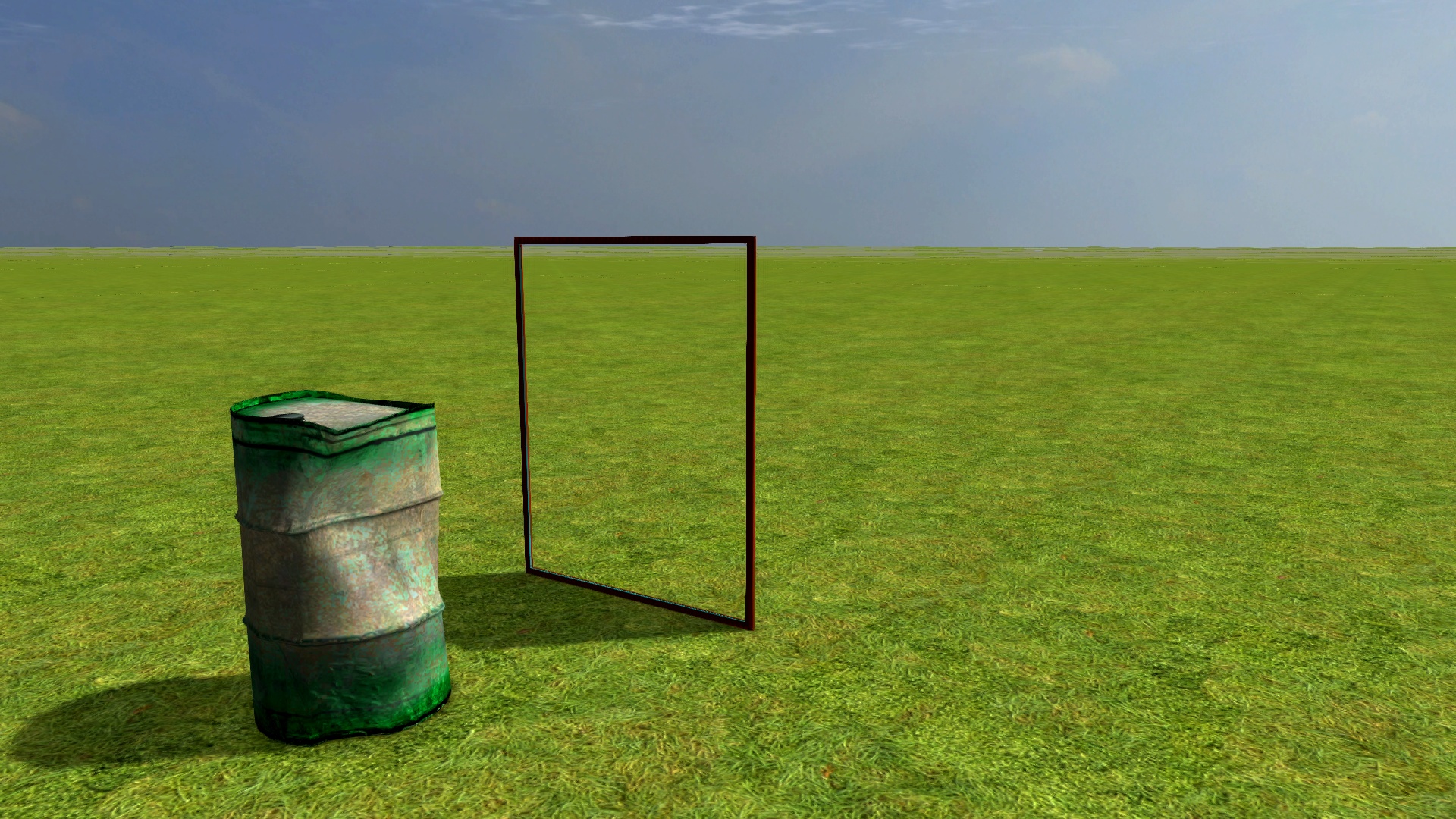

still plodding with UV maps lol onto glass now I have a problem I have worked out transparency to a degree but my windows are one sided, what am I missing also alpha below 200 does not seem to work, I am using paint.net for the DDS files is there a better approach?
Welcome to the real world!
Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD

Attachments

Login to view attachments
PM Email Website
Gtox
3D Media Maker
10
Years of Service
User Offline
Joined: 5th Jun 2014
Location: South Africa
Profile
Posted: 13th Sep 2017 16:47
Link
Is the glass itself (not the frame) a plane?
i5 2500k 3GB GTX1060 8GB RAM Windows 10
PM Email
GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Profile
Posted: 13th Sep 2017 16:48 Edited at: 13th Sep 2017 17:00
Link
Quote: "Is the glass itself (not the frame) a plane?"
yes its only 1mm thick, mmm going to increase it to 2mm see if that helps
Welcome to the real world!
Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
PM Email Website
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 13th Sep 2017 17:07
Link
Sounds like it's a single face, gg only textures one side of a face, there is a setting in the fpe that forces it to render both sides but i can never remember what it is.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Profile
Posted: 13th Sep 2017 17:37
Link

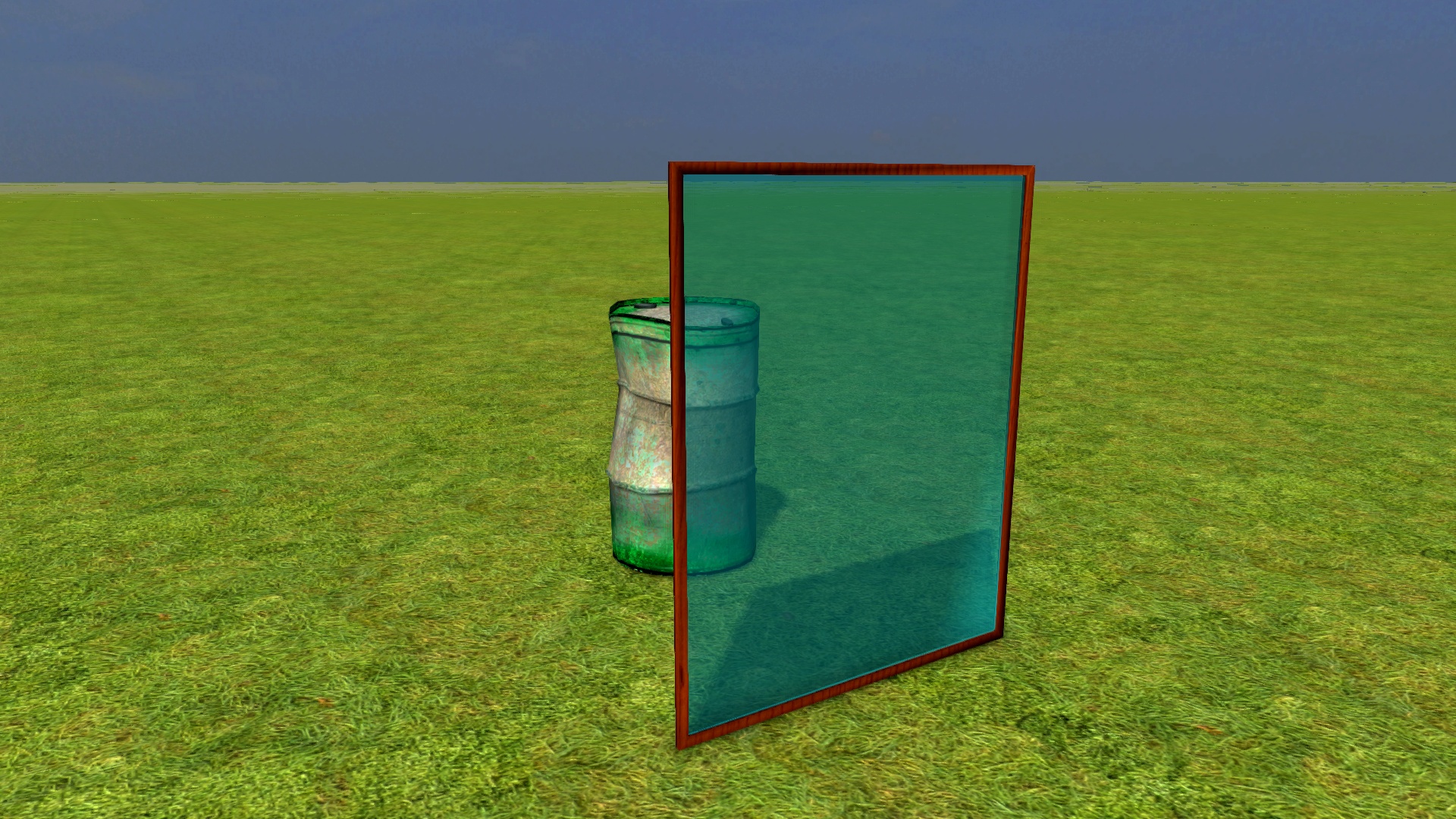

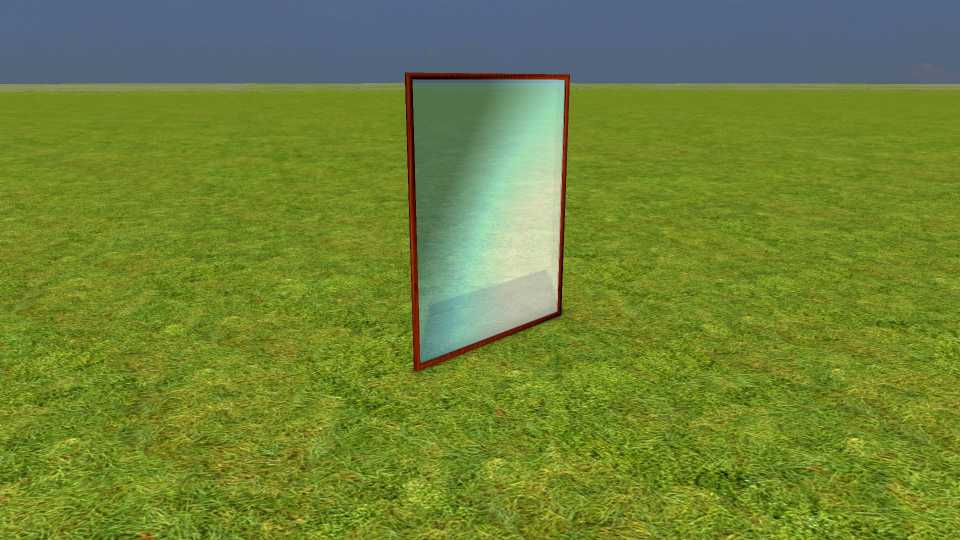

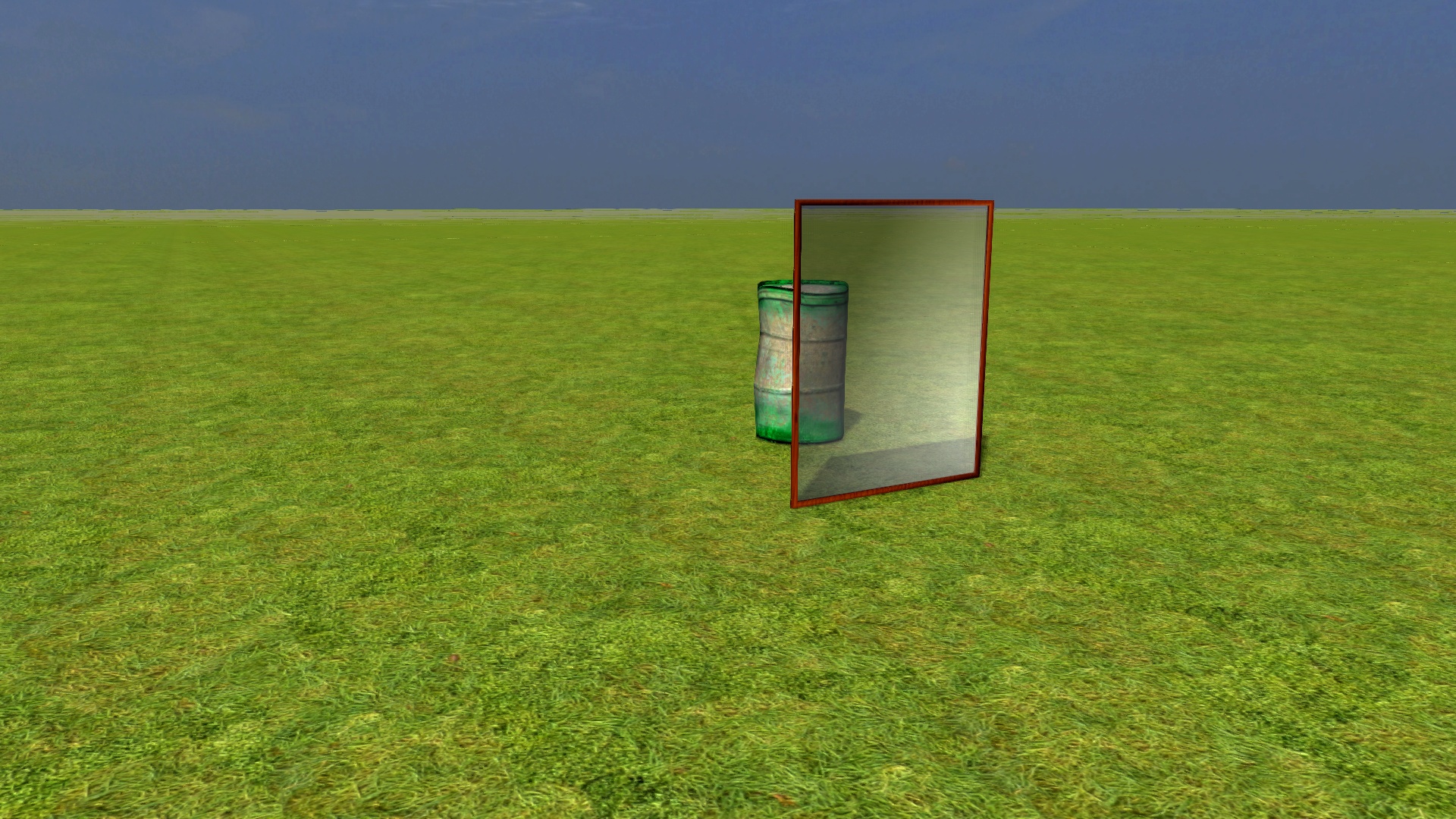

thanks guys I got it to work by increasing the thickness to 2 mm the only problem I have now is if the alpha goes below 150 (from 255) the glass disappears as you can see 150 is a bit foggy for glass, what is the transparent colour in GG is it black? should I use black and decrease the alpha of black?
Welcome to the real world!
Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD

Attachments

Login to view attachments
PM Email Website
Gtox
3D Media Maker
10
Years of Service
User Offline
Joined: 5th Jun 2014
Location: South Africa
Profile
Posted: 13th Sep 2017 18:08
Link
For future reference, the fpe setting for two sided texturing on planes is cullmode = 1 (not the issue here, obviously).
I found that around 130 was the limit for transparency, and below that is clear. It does seem to jump quite abruptly from quite frosty to completely see-through, and I'm not sure there's anything you can do about it.
i5 2500k 3GB GTX1060 8GB RAM Windows 10
PM Email
GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Profile
Posted: 13th Sep 2017 18:10
Link

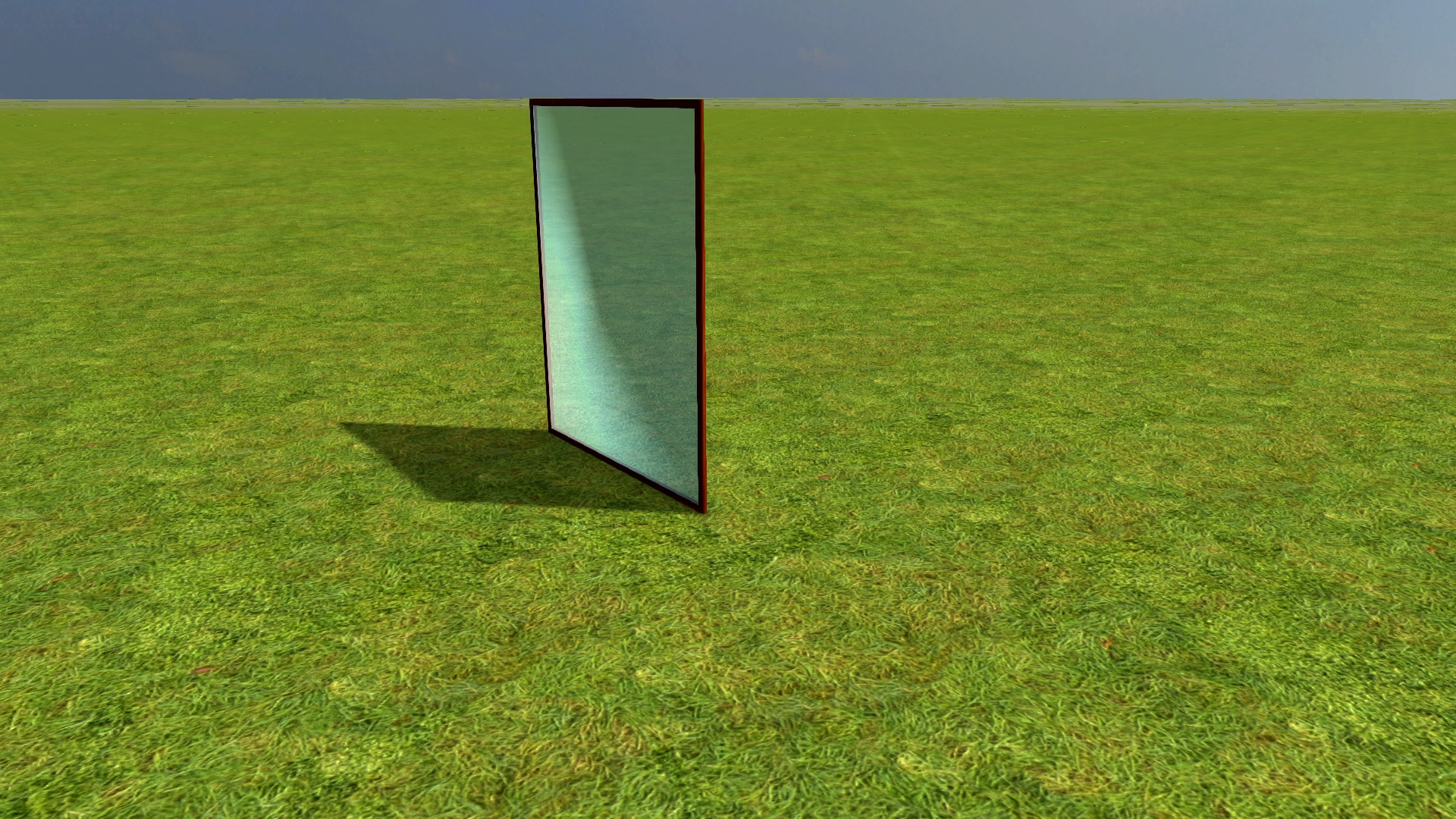

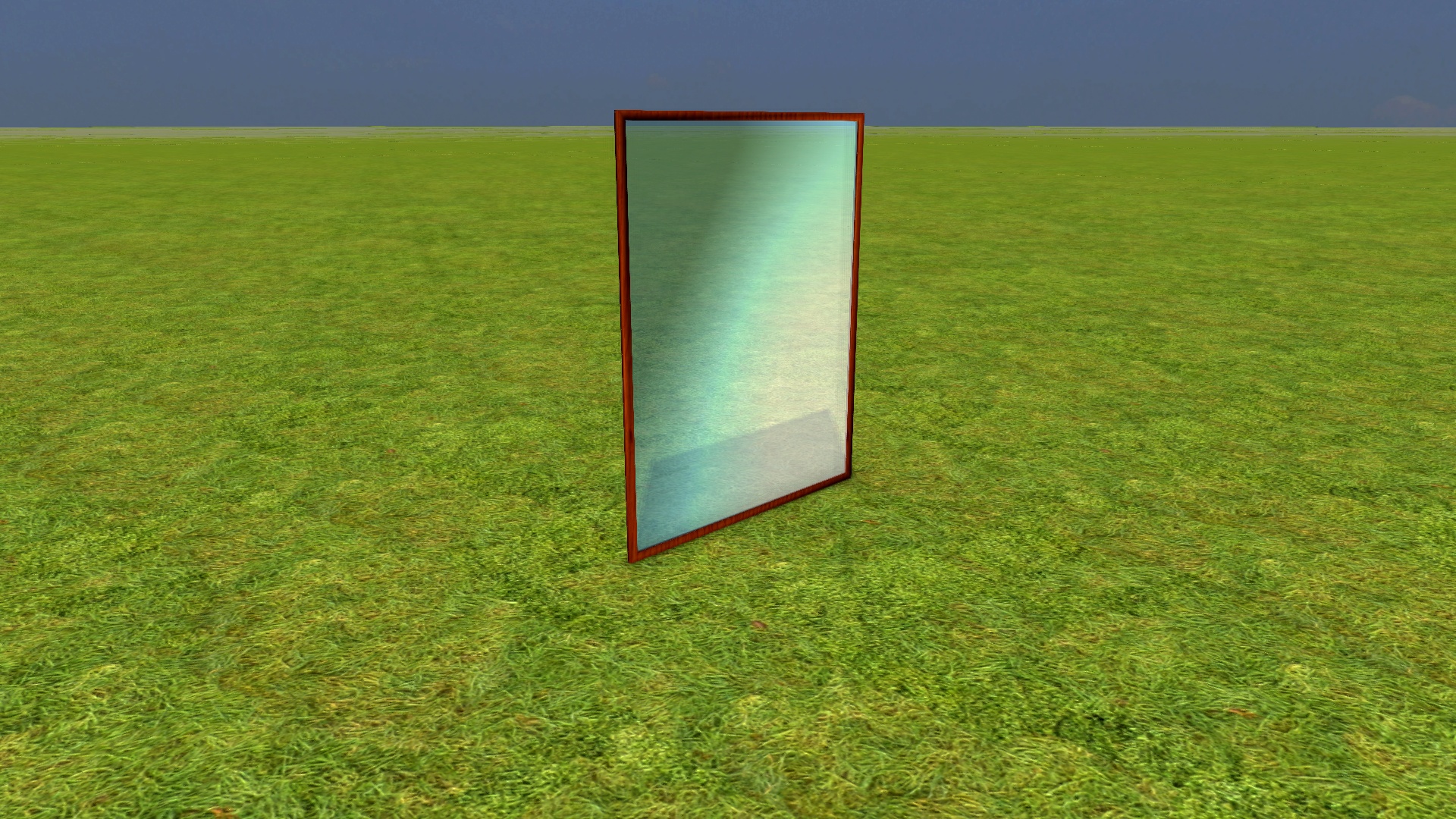

yeah your right I started at 100 and went up in ones 130 was the lowest
Welcome to the real world!
Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD

Attachments

Login to view attachments
PM Email Website
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 13th Sep 2017 20:04
Link
Quote: "For future reference, the fpe setting for two sided texturing on planes is cullmode = 1 (not the issue here, obviously).
I found that around 130 was the limit for transparency, and below that is clear. It does seem to jump quite abruptly from quite frosty to completely see-through, and I'm not sure there's anything you can do about it."


Actually it probably was the issue, 1mm in most modelling software is a single face, by making it thicker it will be adding more geometry to make it thicker, thus giving it a back face, and maybe faces on the edge.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
GraPhiX
Forum Support
19
Years of Service
User Offline
Joined: 15th Feb 2005
Playing:
Profile
Posted: 13th Sep 2017 20:17 Edited at: 13th Sep 2017 20:20
Link
yeah thanks for your help on this guys 2mm indeed give edges 1mm did not, UU3D does have an option for 2 sided faces which I have just found lol,
I will try that with a 1mm face because thinking about it 2 faces back to back will make it less transparent than 1 face (I think LOL)

all this experimenting is so that I can make the Moose a single texture but I think I will do him PBR
Welcome to the real world!
Windows 10 Pro x64 - Core i7-7700K @4.2GHz - 32GB DDR4 RAM - GeForce GTX 1060-6G 6GB - 1TB NVe SSD
PM Email Website
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Profile
Posted: 13th Sep 2017 21:19
Link
Quote: "I will try that with a 1mm face because thinking about it 2 faces back to back will make it less transparent than 1 face (I think LOL)"


Nope, won't make a difference, because you will be looking through the transparency of the first face at the back of the second face, and the back of the second face (if you aren't using the cullmode setting) doesn't render.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.
Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.
Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
PM Email Website
