I have a lot of fun creating my own texture selection for the EBE but I dont seem to understand the N and S texture.

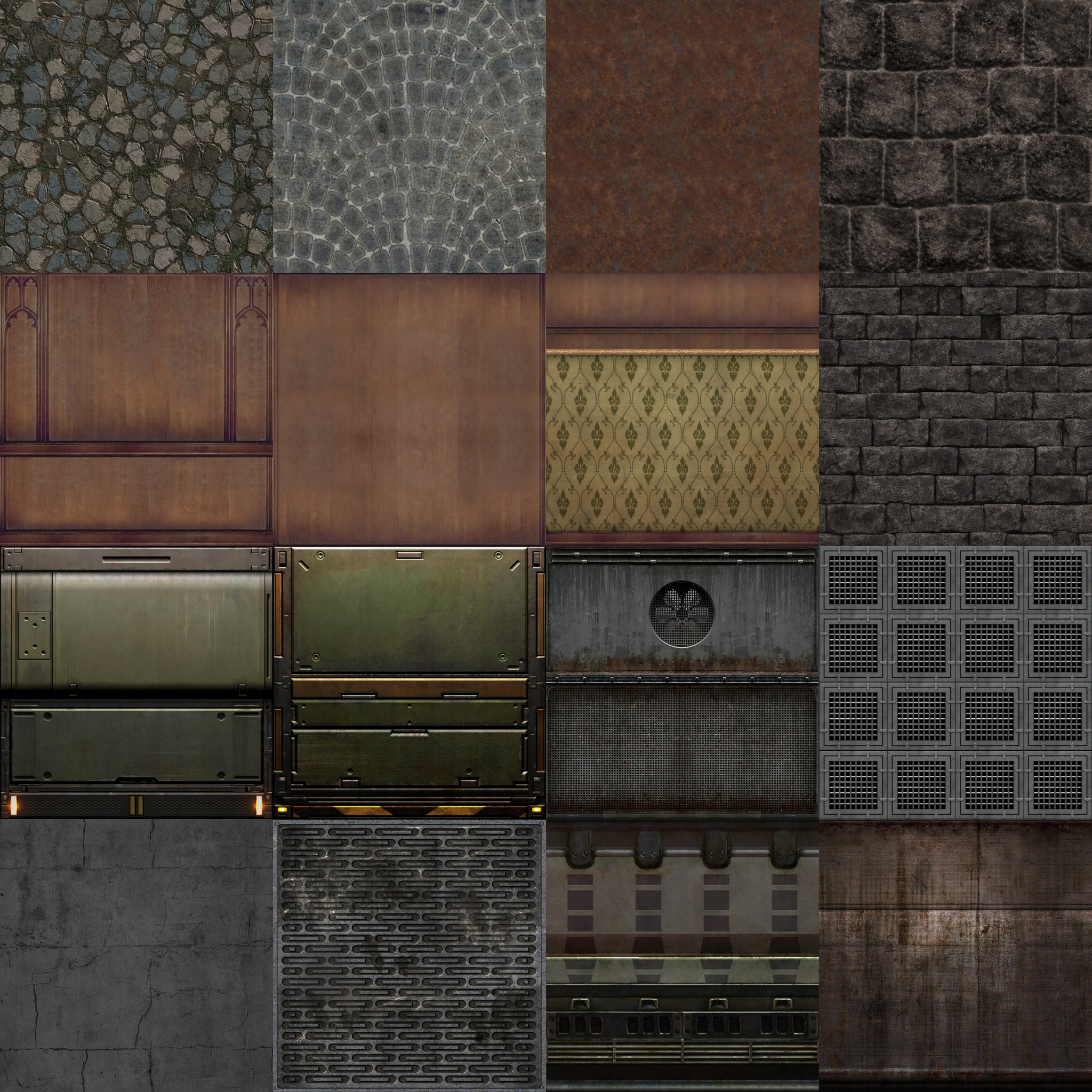

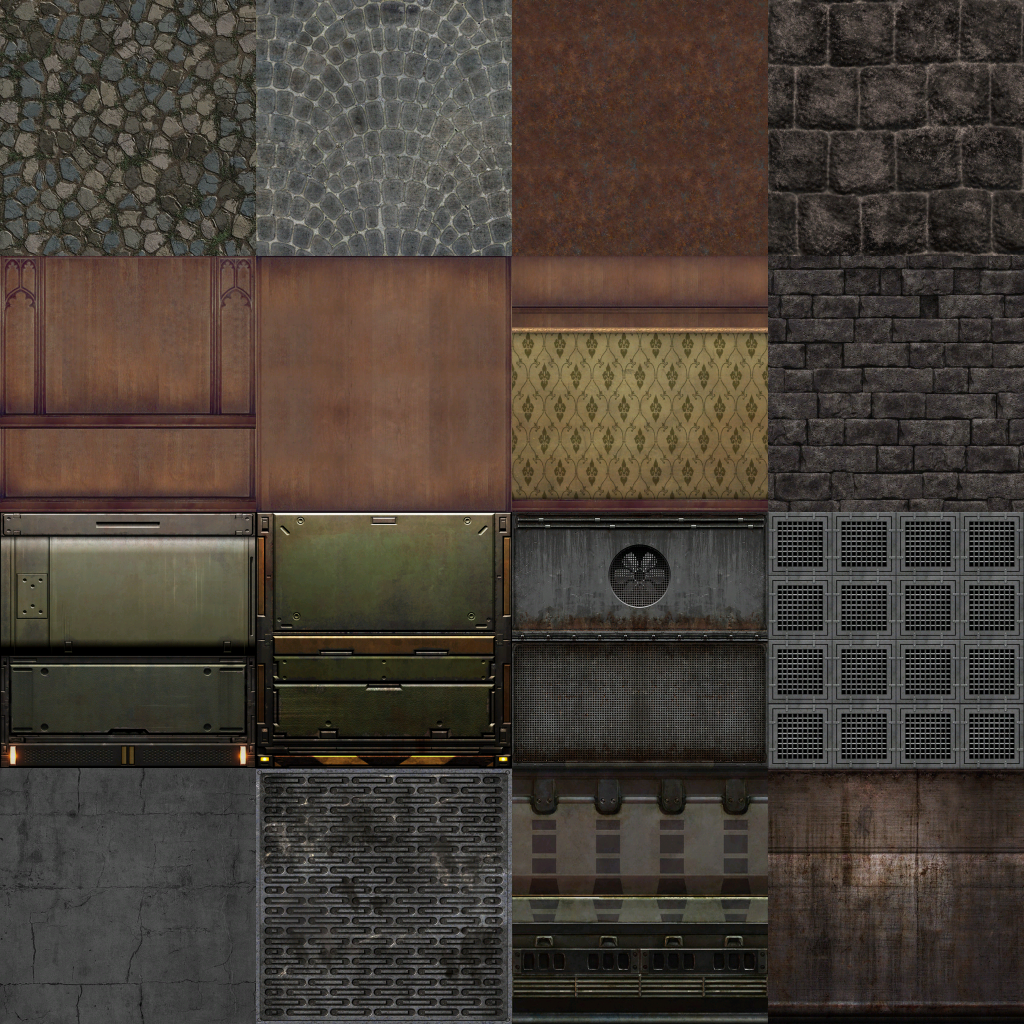

Looking at the textures_D.dds, textures_N.dds and textures_S.dds the N and S seem to be just a large single texture not reflecting the surface of the 16 textures in textures_D.dds.

I am asking because I want to use the FPSC stock textures that have D (or D2), N and S and I don't know if the graphics would actually beefit if I painstakingly load/resize/regroup and additional 32 textures. Als I am a bit curious if the FPSC I.dds texture has any use in GG.

Btw, can I safely assume
- that all stock FPSC models and textures that haven't been included in GG (like about all the segments and most of the doors) can be used, edited and made available to the community for free?
- that all the remaining models and textures from the model packs that make up the free "Classic Pack" (again mostly the segments)can be used, edited and made available to the community for free?
In case you find my grammar and spelling weird ---> native German speaker ^^
Belidos
3D Media Maker
3
Years of Service
User Offline
Joined: 23rd Nov 2015
Location: Hertfordshire
Posted: 24th May 2017 12:21
An _N texture is a normal map texture, this texture is basically a map that tells the game engine where all the lumps and ridges are in your texture, it's used to give the texture a more 3D look. The _S texture is the specular map, this map tells you where on your texture is shiny and where isn't, the whiter a part is the shinier it is, the blacker a part is the less shiny it is.

Primary Desktop:
i7 7700,k NV1070 8GB, 16GB 3200mhz memory, 1x 2TB Hybrid, Win10.

Secondary Desktop:
i5 4760k, NV960 2GB, 16GB 2333mhz memory, 1x 2TB Hybrid, Win10.

Laptop:
i3, Intel 4000 series graphics, 6GB memory, 1x 500gb HDD, Win8.1.
The Storyteller 01
10
Years of Service
User Offline
Joined: 11th May 2009
Playing: around
Posted: 24th May 2017 13:25 Edited at: 24th May 2017 18:26
So then the N and S texture for the standard textures_D.dds in the ebebank/default folder are actually not doing anything as they are both just flat featureless .dds

Do the N and S textures from the TCG stock media translate 1:1 into GG ? The shaders work a bit differntly in both engines afair.

EDIT: In addition I just checked the textures_profile.txp

which brought another question up ^^
- Is the EBE designed to be expanded to more than 4x4 textures 1024x1024 or would i try that at my own ristk?
In case you find my grammar and spelling weird ---> native German speaker ^^
Corno_1
GameGuru Tool Maker
8
Years of Service
User Offline
Joined: 3rd Nov 2010
Location:
Posted: 25th May 2017 12:11
Quote: "So then the N and S texture for the standard textures_D.dds in the ebebank/default folder are actually not doing anything as they are both just flat featureless .dds"

I have this too and it seems to be a bug. I thought they used the normal map, but I am not sure.
Ebe Editor Free - Build your own EBE structures with easy and without editing any text files
Thread and Download
The Storyteller 01
10
Years of Service
User Offline
Joined: 11th May 2009
Playing: around
Posted: 25th May 2017 13:01 Edited at: 25th May 2017 13:02
I dug a little deeper into this and realized that when you replace textures with RMB in the editor AND you pick one with N and S textures, the EBE creates 3 new plates for D, N and S textures, so the default "empty" N and S are probably only a kind of "filler".

Unfortunately those N and S texture plates don't do anything. I renamed on of the D textures and added both the version with N and S textures as well as the new one to the plate. and there is NO difference to be seen, no shader effects of any kind for the texture that comes with N and S.
In case you find my grammar and spelling weird ---> native German speaker ^^
synchromesh
Forum Support
5
Years of Service
Recently Online
Joined: 24th Jan 2014
Location:
Posted: 25th May 2017 13:17 Edited at: 25th May 2017 13:18
I wonder what would happen if you put your actual texture sheet into something like NORMALIZATOR and created your own D N S textures. Then just copied and overwrite them ?
The only person ever to get all his work done by "Friday" was Robinson Crusoe..

Attachments

Login to view attachments
PM
cybernescence
GameGuru Master
6
Years of Service
User Offline
Joined: 28th Jan 2013
Playing: Cogwheel Chronicles
Posted: 25th May 2017 13:30
What happens when you save the EBE entity - I've got a vague memory that it then compiles the normals selected on the texture plate into a D and an N texture atlas for the saved entity and when that is used in game the normals are applied. Perhaps this isn't working and/or I'm misunderstanding.

Cheers.
The Storyteller 01
10
Years of Service
User Offline
Joined: 11th May 2009
Playing: around
Posted: 25th May 2017 14:19 Edited at: 25th May 2017 14:20
Quote: "What happens when you save the EBE entity - I've got a vague memory that it then compiles the normals selected on the texture plate into a D and an N texture atlas for the saved entity and when that is used in game the normals are applied. Perhaps this isn't working and/or I'm misunderstanding. "


I admit, I haven't considered that. So far I have never saved the EBE as an entity as I only used it to experiment with creating underground/indoor levels, therefore I have only saved the whole map.
In case you find my grammar and spelling weird ---> native German speaker ^^
Earthling45
3
Years of Service
User Offline
Joined: 3rd Sep 2016
Location: Zuid Holland Nederland
Posted: 26th May 2017 22:53
It works as it should.

Darkstone download this folder which contains darkstone_D and darkstone2_D, N, S.

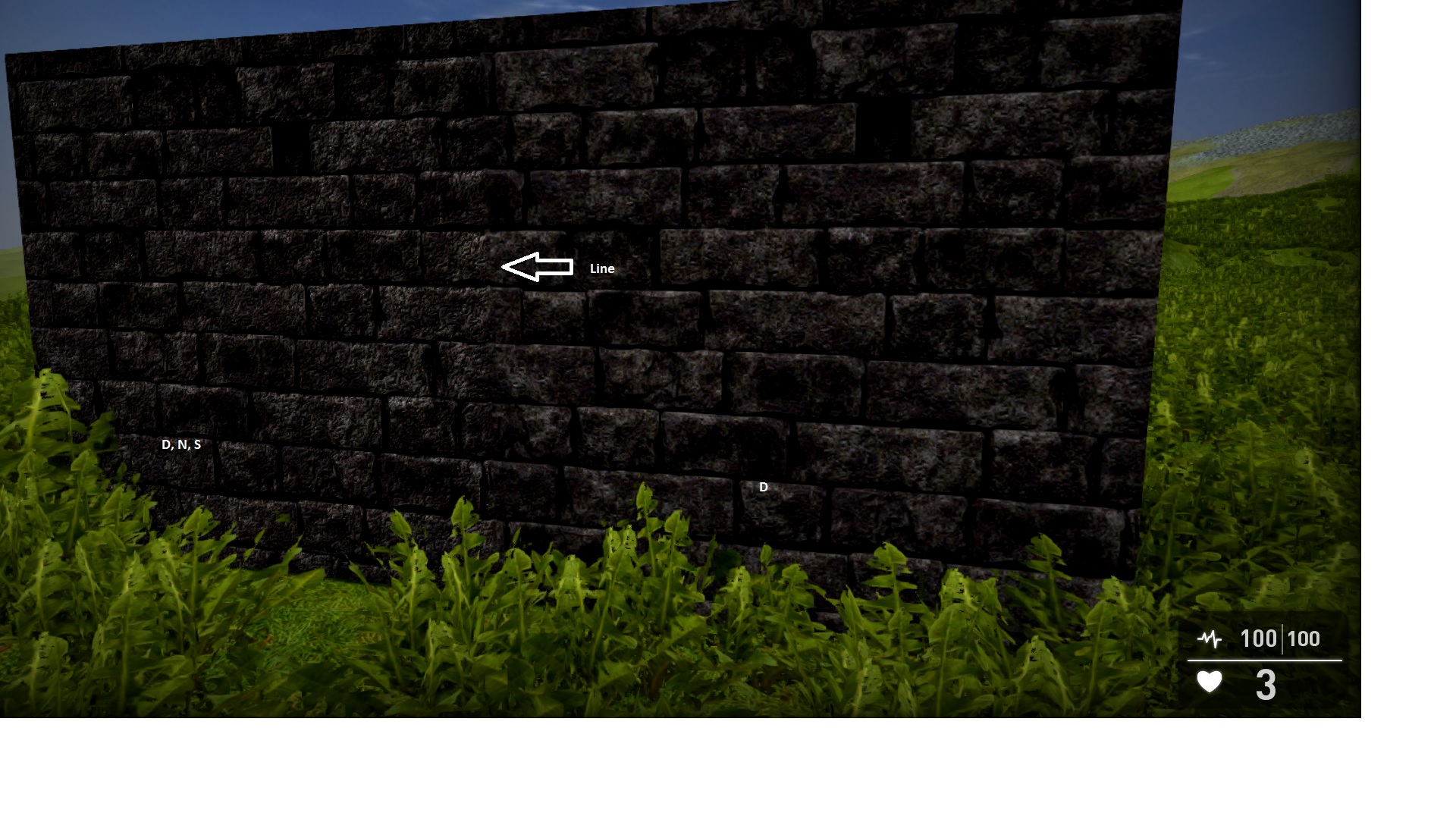

Copy them to ebebank/texturesource and try, you should see the difference between only a diffuse texture and diff-norm-spec like in the attached image.

Attachments

Login to view attachments
The Storyteller 01
10
Years of Service
User Offline
Joined: 11th May 2009
Playing: around
Posted: 30th May 2017 14:49 Edited at: 30th May 2017 14:50
I looked further into it and realized, that the default textures_D.dds plate, has blank textures_N.dds and textures_S.dds plates.

But when you right-click the plate to exchange a texture and you pick one from the textureressource folder with N and S maps , then it adds those to the textures_N.dds and textures_S.dds plates. Even if you pick the same texture, only then do you get the N and S added.

I also learned that when adding a new texture to the plate that has no N or S map, than the old one gets replaced wiht a blank one.
But ONLY if the new texture ends with _D.dds. Otherwise the N and S textures remain on their respective plates. So its a good idea to keep a copy of the blank N and S plates in case you plan to add simple .png textures to the plate.
In case you find my grammar and spelling weird ---> native German speaker ^^
