Hi all just thought i'd show you how I've Learned to do this so you guys using Fuse and those that might get a heads up, firstly if this is in the wrong place mods please feel free to move it.
Second : I'm not used to tutorials so please bare with me
Ok here we go

I used Anim8or for this as its free and easy to use but you can use any other modelling package to do it as long as it supports .obj

1/ open fuse create a character, no clothes just the basics, goto the menu and import it out as an .obj (pic1)

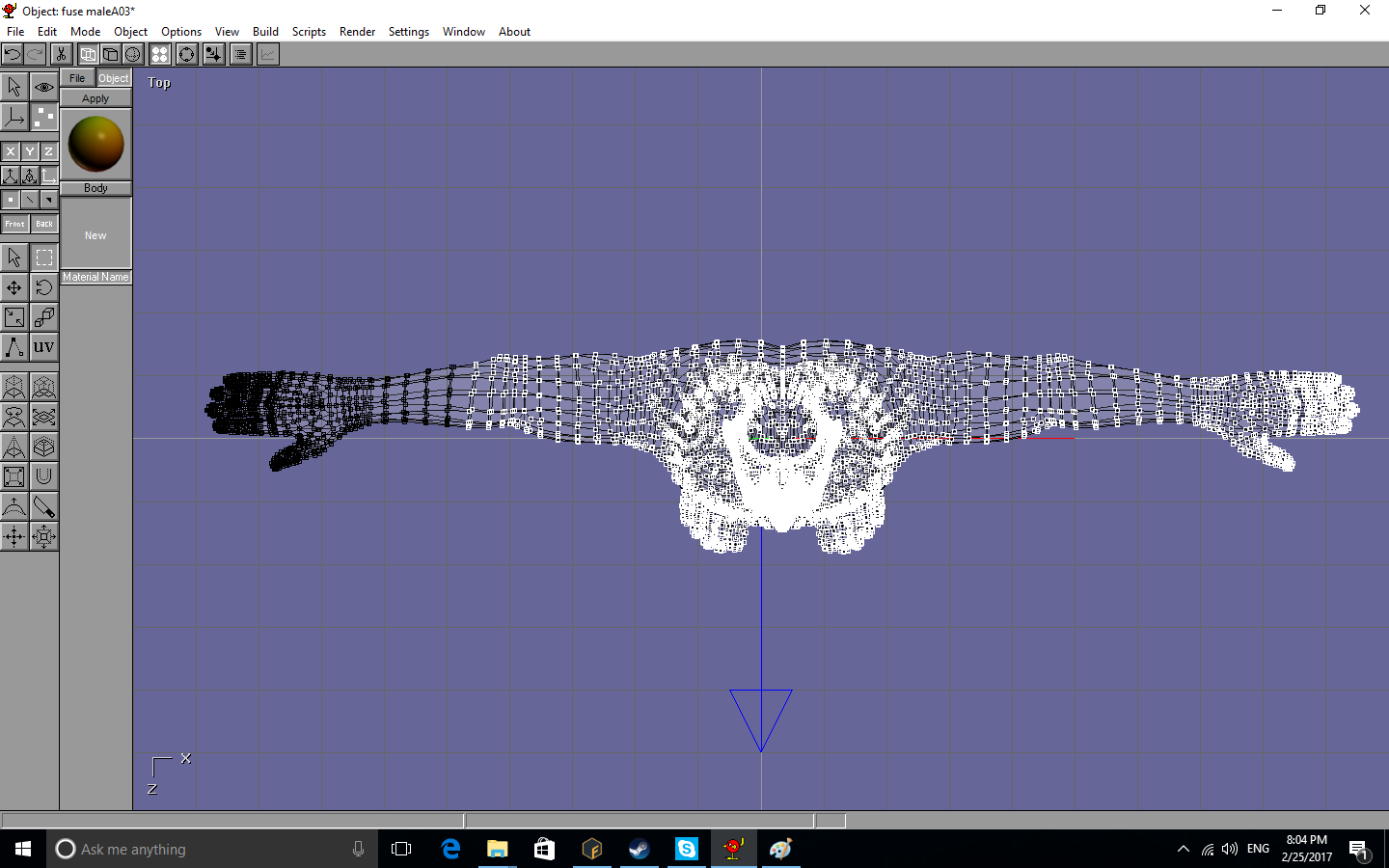

2/ select all the parts you don't want using wireframe and delete them (pic 2)

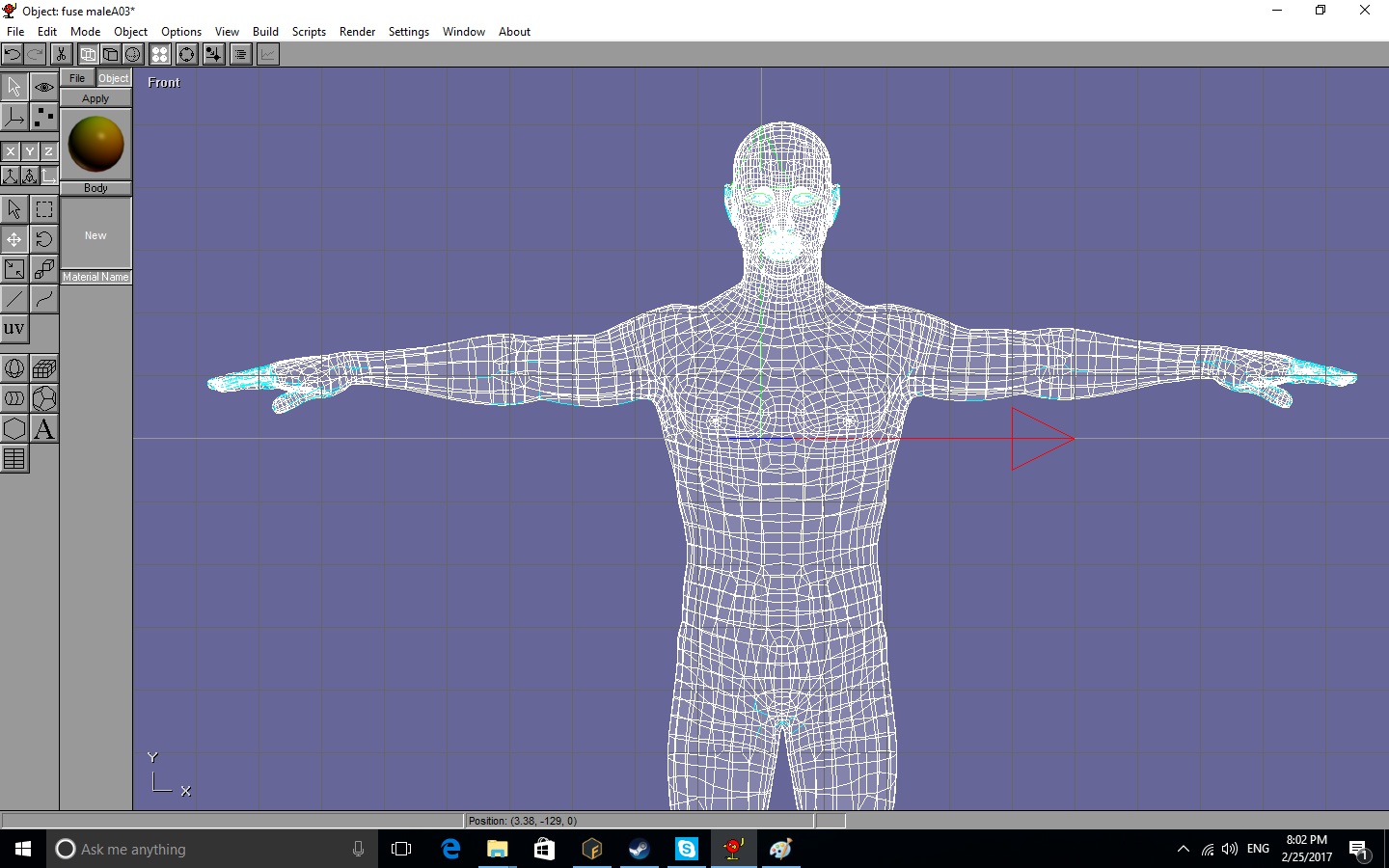

3/ adjust the parts left (in this case the hand and abit of the arm to make a glove) (pic 3)

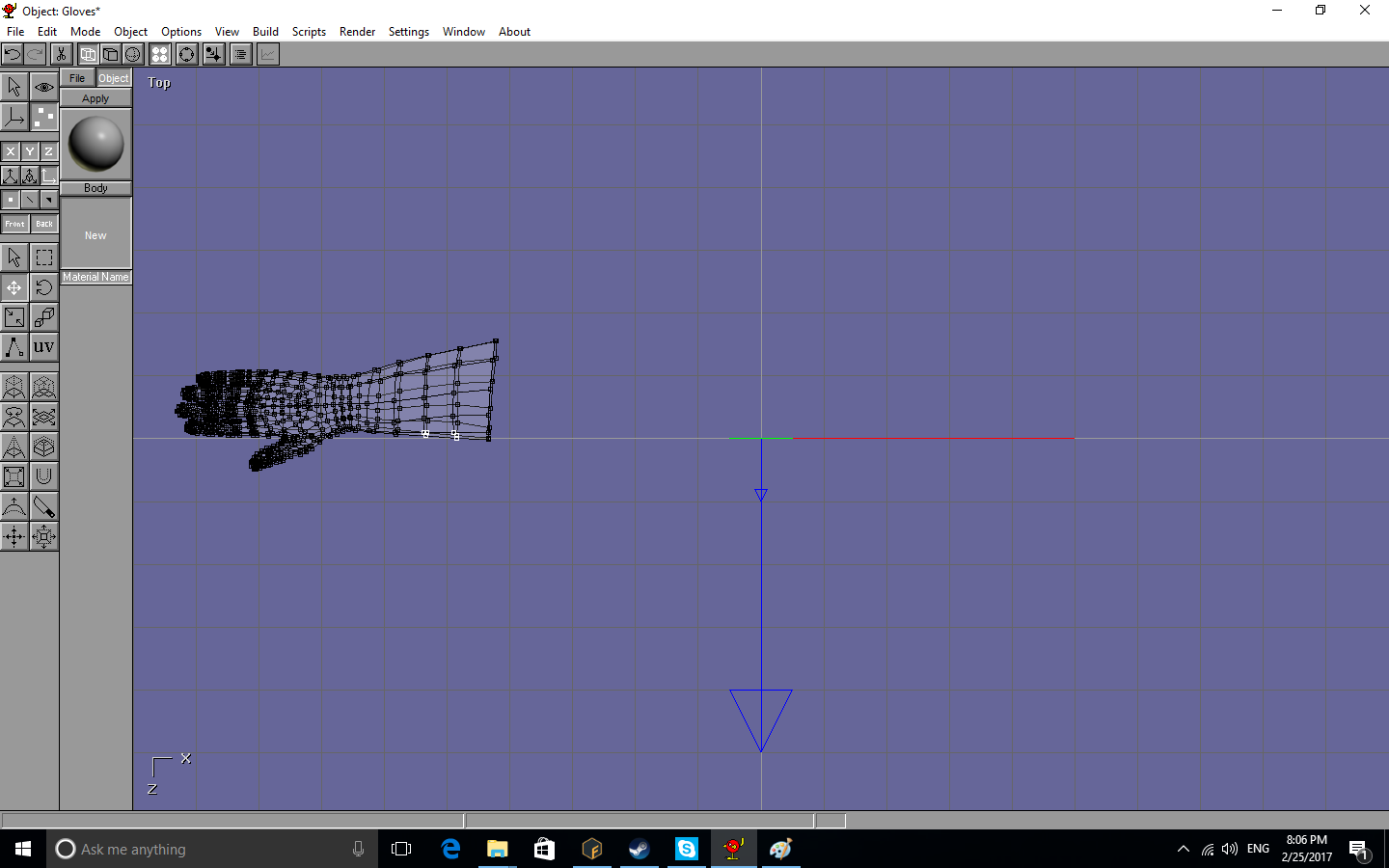

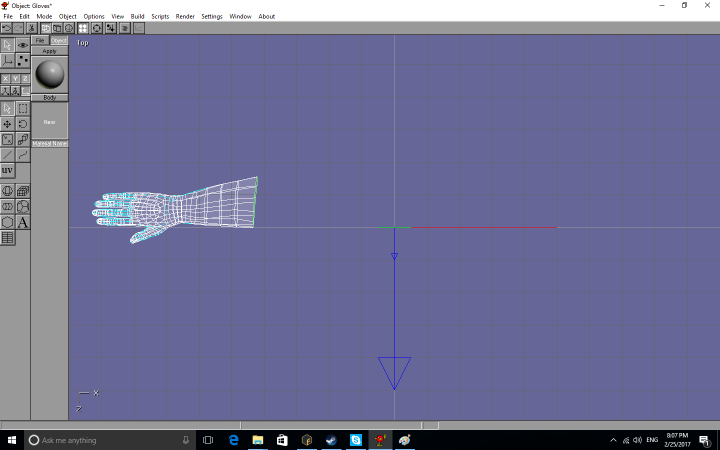

4/ save the gloves you have made as an .obj (pic4)

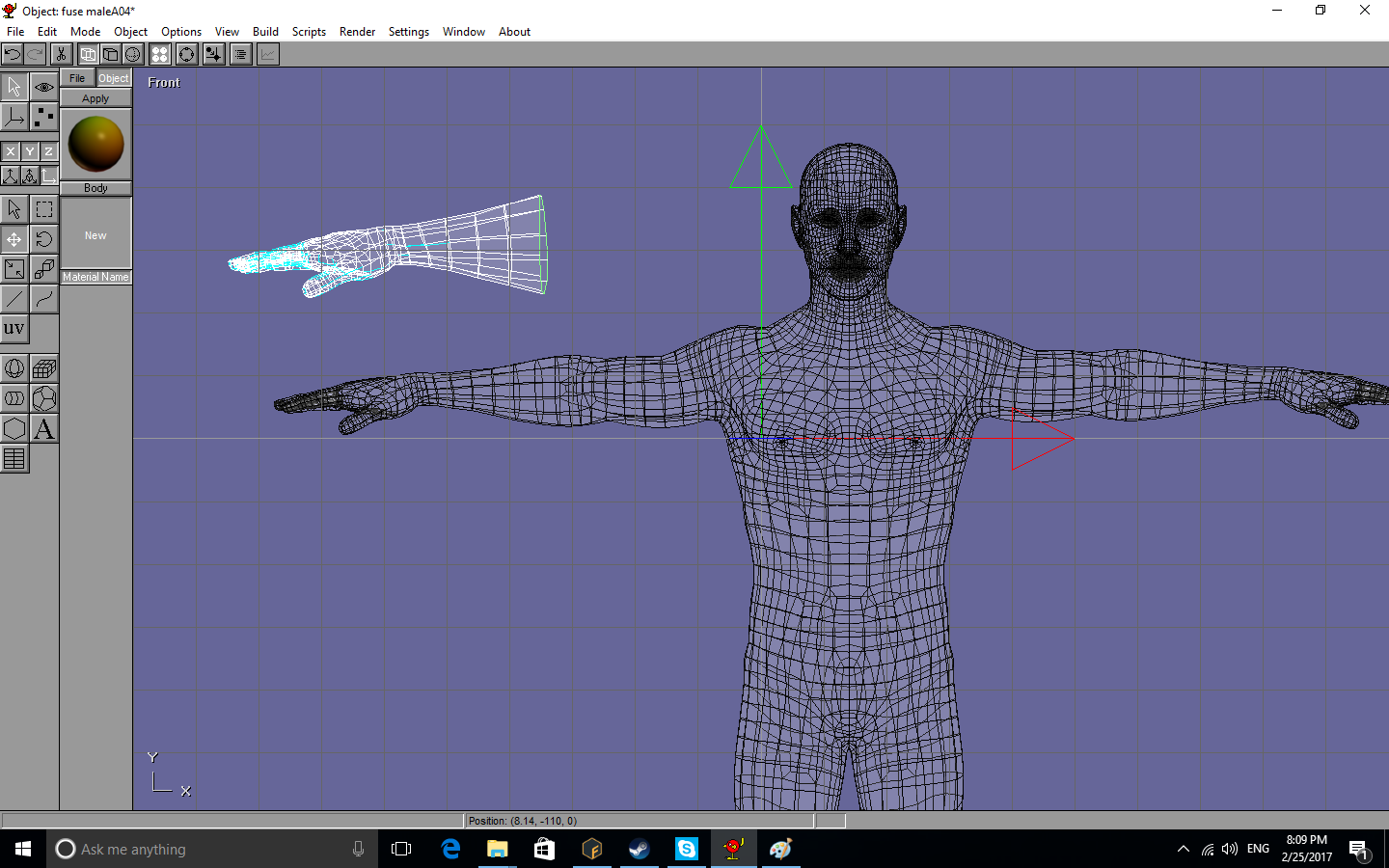

5/Cut the gloves, re import the character and paste bringing the gloves back into play (pic 5)

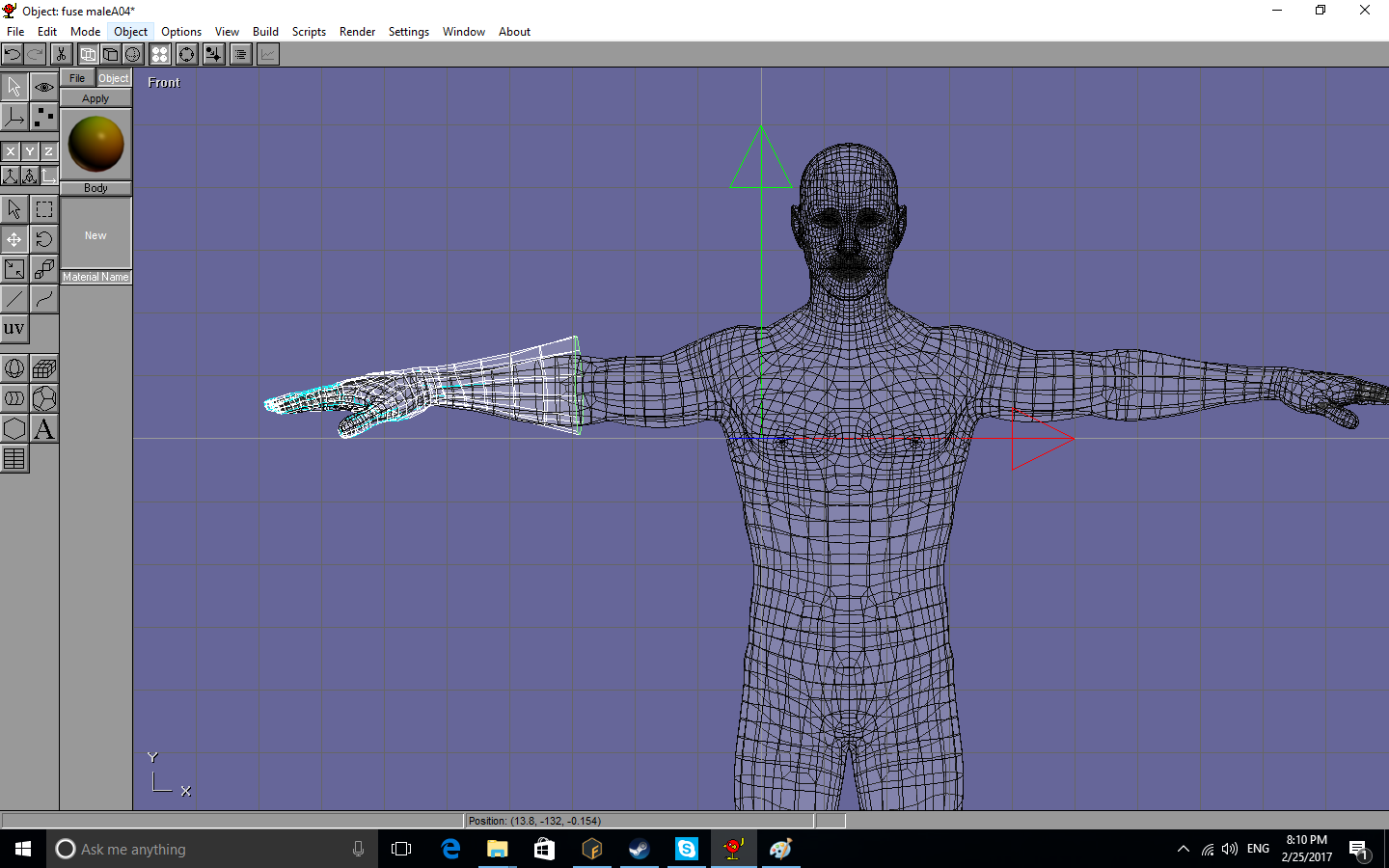

6/line up the gloves and the character , select all and re lay the character in it original position (use the x,y arrows) (pic6)
7/delete the character leaving just the gloves and export out as an .obj

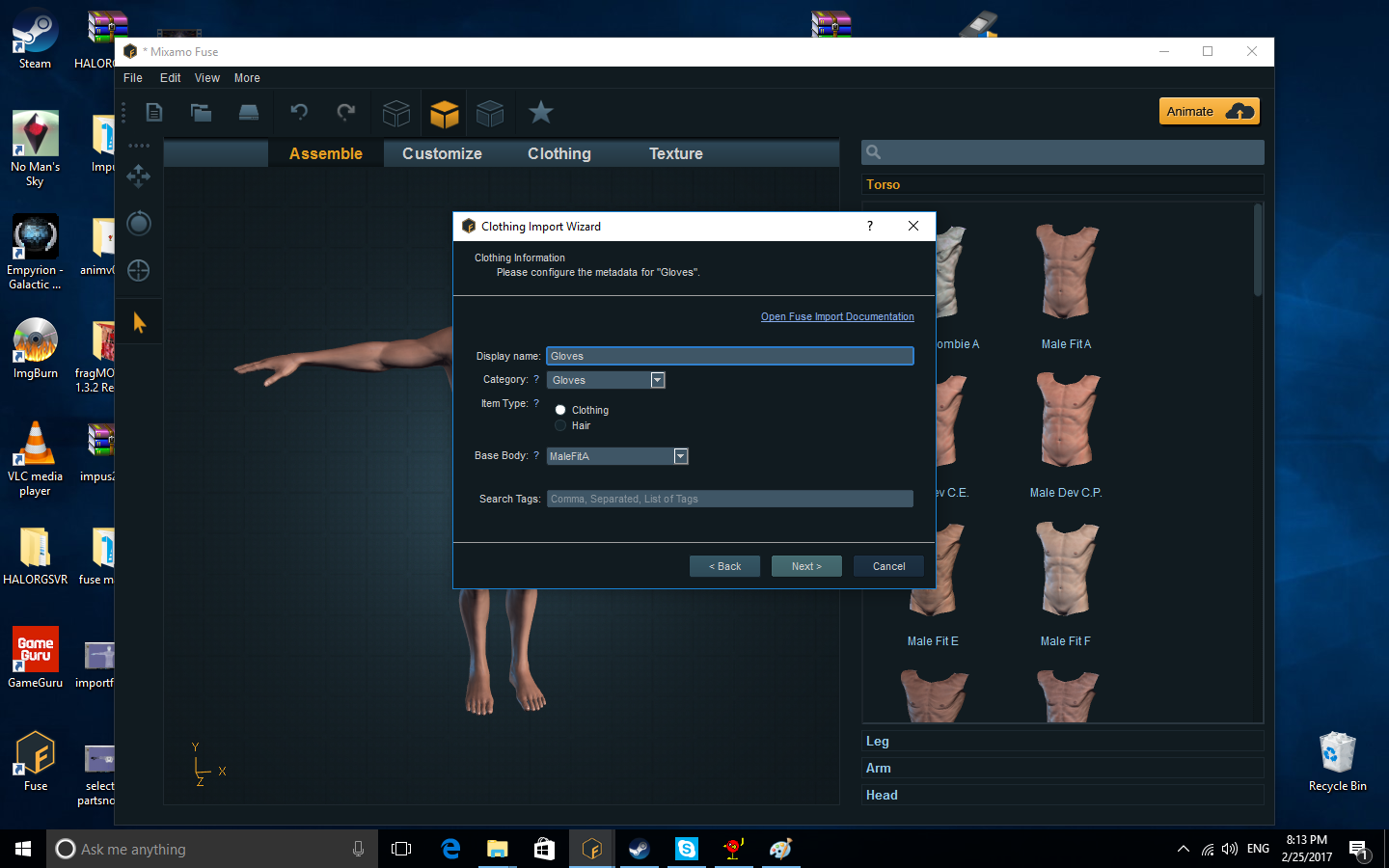

8/ return to fuse and import clothing, choose the correct directory e.g gloves in this case and just next it will import the .obj (pic7)
9 / rebuild your character in fuse and add you newly crated item.(pic8)
then you can add your textures with fuse and import it out with the clothing attached
you can do this with any part of the fuse models body and if you want to make say hats or capes just follow the same instructions add it to the imported model and out again, I'm not very good at Tuts but I hope this helps you guys a little , any questions feel free to ask

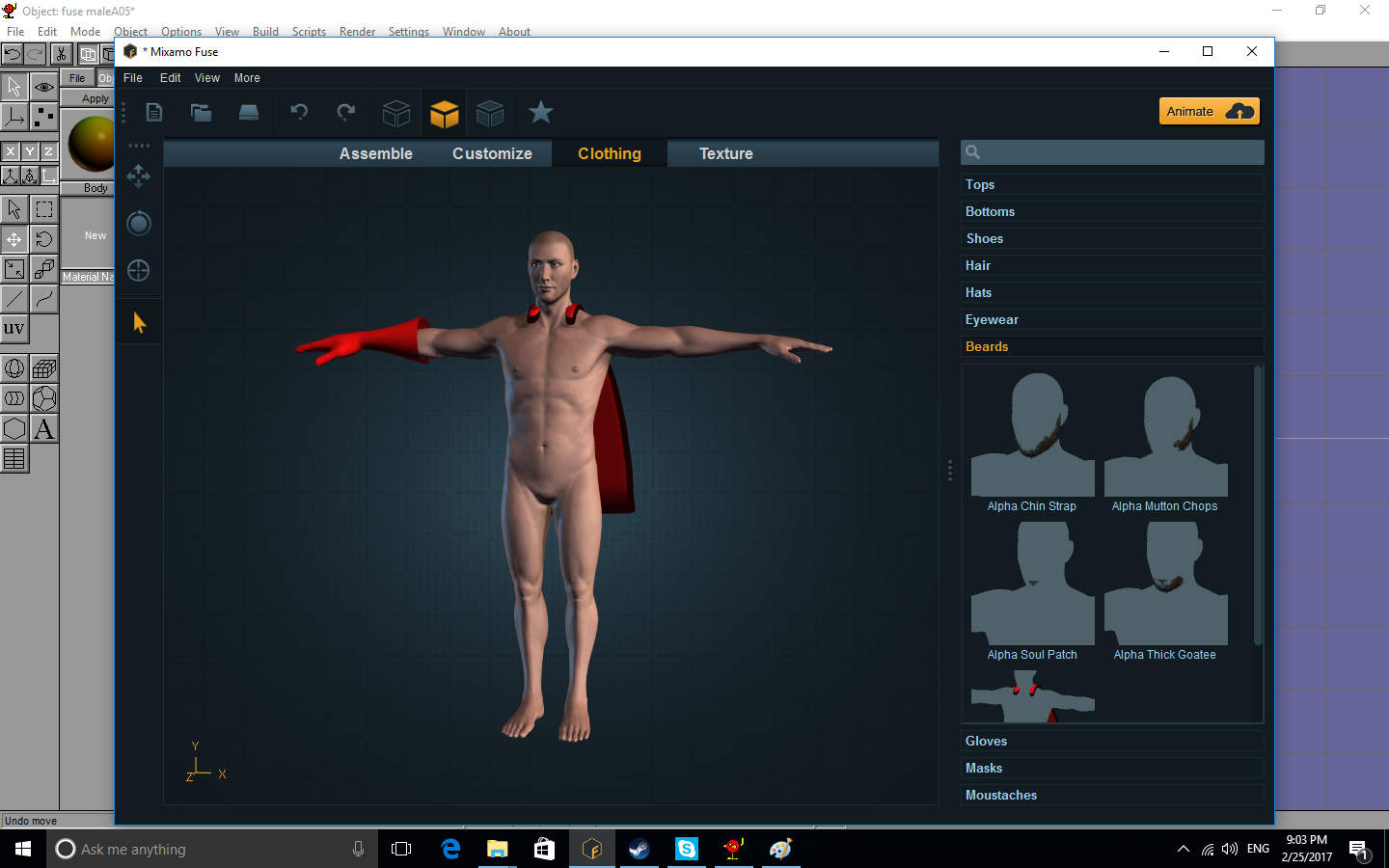

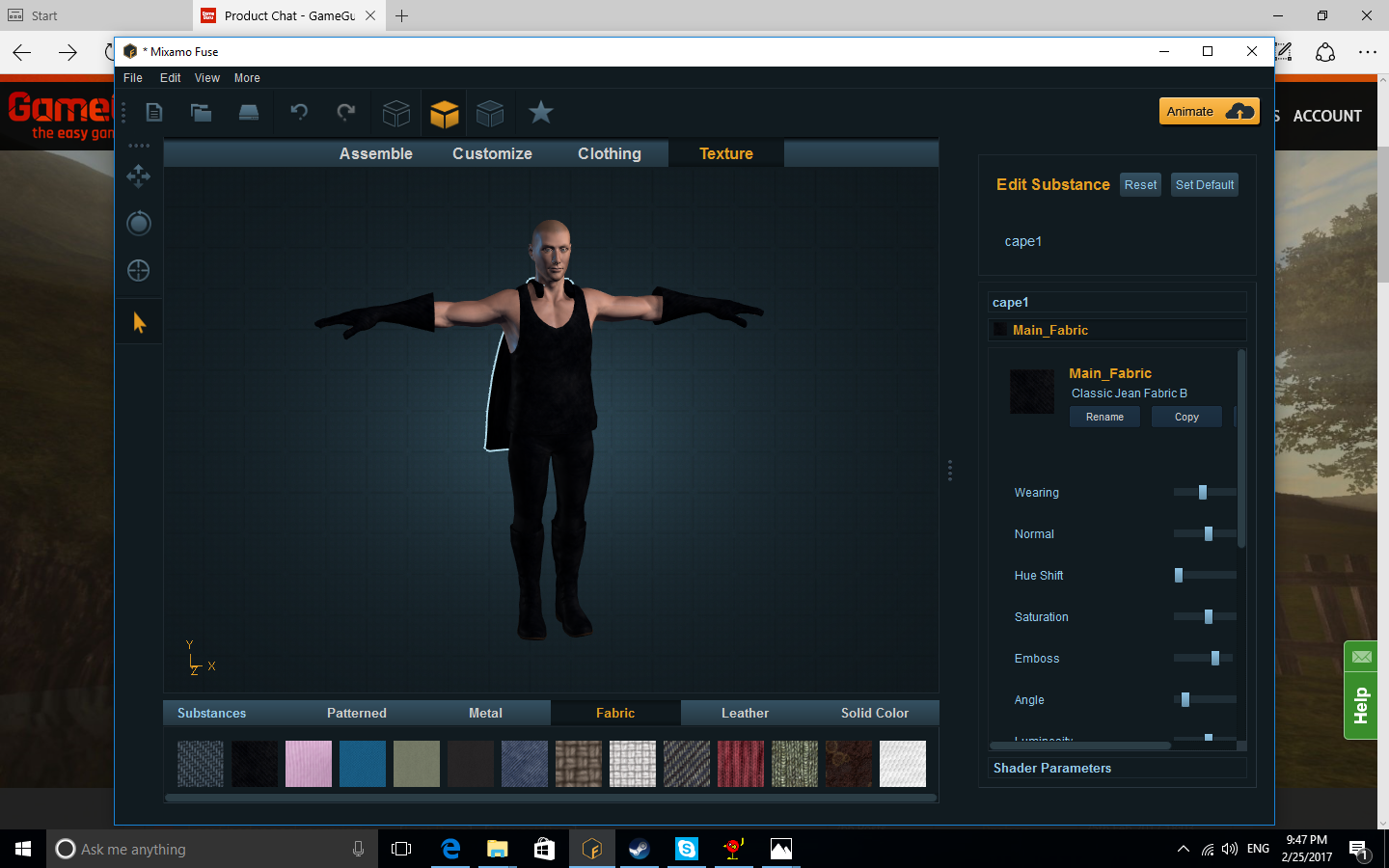

sry forgot with gloves you have to mirror the image to get both (pic9) shows the complete item I don't usually add clothing with these heros as you can just paint the skin to give a heroish spandex look but play around till you get what you want
Intel i5 4950 Quad core 3.3ghz AMD FX 6300 x6 cores 3.5ghz(unclocked)
8gb Ram 8gb Ram
AMD Radeon 7570 1gb AMD Radeon HD 6670 2gb
and a well fed mouse on a wheel

I only smile because i have absolutely no idea whats going on

Attachments

Login to view attachments
Belidos
3D Media Maker
9
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Posted: 25th Feb 2017 21:42 Edited at: 25th Feb 2017 21:46
Not bad mate, thanks for that.

It's a very basic guide though, there's a lot more to it than that, for example you can use material groups to define different areas to different materials and colours, and so on, but it's a great start, well done for posting.

I would suggest practising with Honkeyboys method, and then when you feel more confident, take a look at this guide:

https://community.mixamo.com/hc/en-us/articles/203829146-Creating-Custom-Content-for-Fuse

and downloading the content creators pack, which gives you templates to use:

https://www.mixamo.com/store/#/account/software?selected=fuse_content_creator
(you will need an account on mixamo)

i5, NV960 2GB, 16GB memory, 2x 2TB Hybrid, Win10.
Honkeyboy
3D Media Maker
9
Years of Service
User Offline
Joined: 16th Sep 2015
Location: Doesnt know half the time ;)
Posted: 25th Feb 2017 21:52 Edited at: 25th Feb 2017 22:00
Just use Fuse materials m8 and cheers not very good at tuts lol bit beyond me tbh but if it helps its gotta be a good thing did you get it? check the last pic, once the items are in Fuse you can add whatever material you like, after that e.g say the cape I just open up the texture and add a symbol or whatever I've made Backpacks and Jetpacks etc etc its pretty easy once you get the hang of it. actually tho m8 there isn't more to it that's it I did it as I was doing it if you follow those instructions it'll work the only issue sometimes is lining the item up so keep your modelling editor open to adjust up and down etc. It really is as easy as ive posted
Intel i5 4950 Quad core 3.3ghz AMD FX 6300 x6 cores 3.5ghz(unclocked)
8gb Ram 8gb Ram
AMD Radeon 7570 1gb AMD Radeon HD 6670 2gb
and a well fed mouse on a wheel

I only smile because i have absolutely no idea whats going on
Belidos
3D Media Maker
9
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Posted: 25th Feb 2017 21:58
Quote: "Just use Fuse materials m8 "


This is what I mean about it being very basic.

You can choose the material inside fuse, but you can only have one material per clothing item if you do it with your method.

However Fuse has a nifty feature where you can assign areas of the mesh as separate material groups when you make the model, so when you import it into Fuse you can then assign each group to a material, for example with the glove, you could use a different material and different colour for each finger etc.

i5, NV960 2GB, 16GB memory, 2x 2TB Hybrid, Win10.
Jerry Tremble
GameGuru TGC Backer
12
Years of Service
User Offline
Joined: 5th Nov 2012
Location: Sonoran Desert
Posted: 25th Feb 2017 22:01
Quote: "However Fuse has a nifty feature where you can assign areas of the mesh as separate material groups when you make the model, so when you import it into Fuse you can then assign each group to a material, for example with the glove, you could use a different material and different colour for each finger etc. "


This is what makes Fuse so special. The same clothing mesh could be a medieval cloak or a modern day business suit!
Desktop: i7 4770@3.4Ghz (passmark 9809), 12GB RAM, Win 10/64, GeForce GTX 1080 (passmark 12006), 1TB SSD, 1TB HDD; Laptop: i7 4800MQ@2.7Ghz, 16GB RAM, Win 10/64, GeForce GTX870M , 1TB SSD.
PM
Honkeyboy
3D Media Maker
9
Years of Service
User Offline
Joined: 16th Sep 2015
Location: Doesnt know half the time ;)
Posted: 25th Feb 2017 22:03 Edited at: 25th Feb 2017 22:04
Not tested that m8 but think you can as this is a fuse model part just adjusted to make another item. will have a look at that tho altho this isn't intended to get too technical just to get people able to make new clothing for their fuse models (kinda was just trying to help out)
Intel i5 4950 Quad core 3.3ghz AMD FX 6300 x6 cores 3.5ghz(unclocked)
8gb Ram 8gb Ram
AMD Radeon 7570 1gb AMD Radeon HD 6670 2gb
and a well fed mouse on a wheel

I only smile because i have absolutely no idea whats going on
Honkeyboy
3D Media Maker
9
Years of Service
User Offline
Joined: 16th Sep 2015
Location: Doesnt know half the time ;)
Posted: 25th Feb 2017 22:06
@ jerry these are just adjusted body parts m8 for quick clothing tbh I didn't even go down the lines of tech :/
Intel i5 4950 Quad core 3.3ghz AMD FX 6300 x6 cores 3.5ghz(unclocked)
8gb Ram 8gb Ram
AMD Radeon 7570 1gb AMD Radeon HD 6670 2gb
and a well fed mouse on a wheel

I only smile because i have absolutely no idea whats going on
Jerry Tremble
GameGuru TGC Backer
12
Years of Service
User Offline
Joined: 5th Nov 2012
Location: Sonoran Desert
Posted: 25th Feb 2017 22:10
Quote: "@ jerry these are just adjusted body parts m8 for quick clothing tbh I didn't even go down the lines of tech :/"


I think its great and might inspire some people to get started with Fuse. While there are a lot of possibilities with the default assets, there can never be too many!
Desktop: i7 4770@3.4Ghz (passmark 9809), 12GB RAM, Win 10/64, GeForce GTX 1080 (passmark 12006), 1TB SSD, 1TB HDD; Laptop: i7 4800MQ@2.7Ghz, 16GB RAM, Win 10/64, GeForce GTX870M , 1TB SSD.
PM
Belidos
3D Media Maker
9
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Posted: 25th Feb 2017 22:13
Quote: "Not tested that m8 but think you can as this is a fuse model part just adjusted to make another item. will have a look at that tho altho this isn't intended to get too technical just to get people able to make new clothing for their fuse models (kinda was just trying to help out)"


Which is why I said to use your method to practice with, then if they want to get more advanced t check out my links

i5, NV960 2GB, 16GB memory, 2x 2TB Hybrid, Win10.
Honkeyboy
3D Media Maker
9
Years of Service
User Offline
Joined: 16th Sep 2015
Location: Doesnt know half the time ;)
Posted: 25th Feb 2017 22:15 Edited at: 25th Feb 2017 22:24
Thing is you can actually just import the fuse model after exporting it as a .obj and then design what you want to fit it (this kinda was my point) you then can line it up to fit , delete the fuse character, export it out and it goes straight into fuse. that is what I was trying to get out here yes you can cut the fuse model up but also you can use it to model your own gear p.s Belidos m8 I find the fuse way abit confusing lol I like my way plus they have like 1 shirt wth can I do with that? ( check it out m8 download the content creator its pants!) you cannot design anything more than a t shirt!

Intel i5 4950 Quad core 3.3ghz AMD FX 6300 x6 cores 3.5ghz(unclocked)
8gb Ram 8gb Ram
AMD Radeon 7570 1gb AMD Radeon HD 6670 2gb
and a well fed mouse on a wheel

I only smile because i have absolutely no idea whats going on
granada
Forum Support
22
Years of Service
User Offline
Joined: 27th Aug 2002
Location: United Kingdom
Posted: 25th Feb 2017 22:26
Thanka for posting Honkeyboy,a great start for everyone interested in this sort of work flow.

Dave
Windows 10 Pro
GeForce GTX 1050 Ti
AMD FX (tm)-9590 Eight-core Processor
31.96 GB RAM
1920x1080,60 Hz
PM
Honkeyboy
3D Media Maker
9
Years of Service
User Offline
Joined: 16th Sep 2015
Location: Doesnt know half the time ;)
Posted: 25th Feb 2017 22:29 Edited at: 26th Feb 2017 14:22
Hope its of use to you Dave My intention here was to just help people make some fuse clothing so they can better their games
