3rd Party Models/Media Chat / Colours from Wings 3d model don't show up in GG

Author
Message
Dagger_Valley
8
Years of Service
User Offline
Joined: 1st Dec 2015
Location:
Posted: 12th Apr 2016 19:35

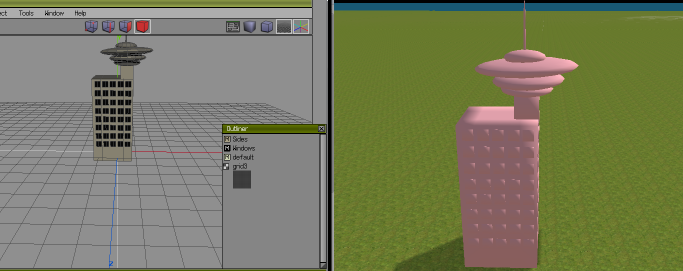

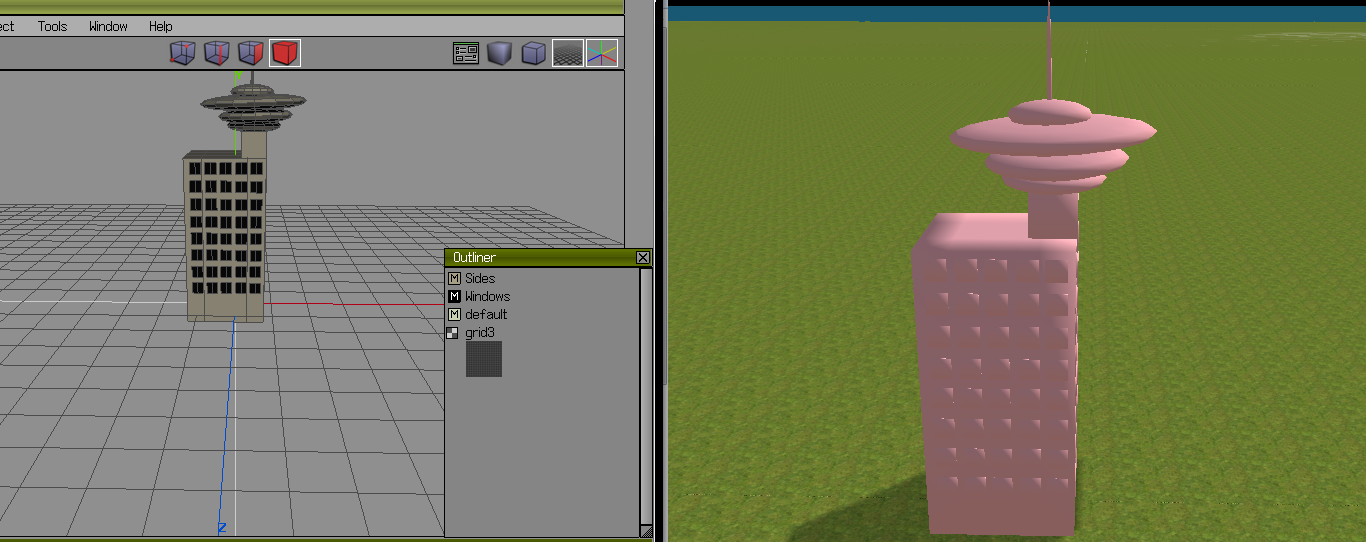

Hi, I just completed my first ever model. The only issue I have is that the colours that I added to it on Wings do not convert to Game Guru. I have a picture below to show.

As you can see, the windows are supposed to be black and the building is supposed to be more grey than it shows upon upload.

Attachments

Login to view attachments
Pirate Myke
Forum Support
14
Years of Service
Recently Online
Joined: 31st May 2010
Location: El Dorado, California
Posted: 12th Apr 2016 20:01
Game Guru requires actual textures to show in editor.
Just applying a color in the model program will not produce the texture sheets.

Is there a bake option in wings 3d?
Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 8gb RAM, Nvidia gtx660, Windows 7 Pro 64bit, Screen resolution 1680 x 1050.

synchromesh
Forum Support
10
Years of Service
User Offline
Joined: 24th Jan 2014
Location:
Posted: 12th Apr 2016 20:44 Edited at: 12th Apr 2016 20:49
Like Sketchup i dont think colours actually export as textures ...
Not actually a bug ...This is for the ( 3rD party models and media section )
The only person ever to get all his work done by "Friday" was Robinson Crusoe..
PM
Dagger_Valley
8
Years of Service
User Offline
Joined: 1st Dec 2015
Location:
Posted: 13th Apr 2016 07:57 Edited at: 13th Apr 2016 08:03
Quote: "Is there a bake option in wings 3d?"


According to a few YT vids there are baking options, but none of the vids or search result tell me how to texture the colours onto my model. Does any one know how to do that with Wings3d? Will I have to upload the models onto another engine like Blender or Linux in order to create my colour textures?

Thanks
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Posted: 13th Apr 2016 08:04 Edited at: 13th Apr 2016 08:09


This should tell you how to unwrap and bake the model textures into a texture file. Then when you import them into gameguru you need to tell it to look for the texture. If using the built in importer then just click the texture box in the creator and add the texture file there. If importing manually you need to edit the models .fpe and change the line textured = to textured = nameoftexture.format so for example if you have a texture called mytexture.png then the line would read textured = mytexture.png

i7, NV960 4GB, 16GB memory, 2x 4TB Hybrid, Win10.
i5 , AMD 6770 1GB, 8GB memory, 512GB Generic SATAIII + 2TB Seagate Baracuda SATAIII, Win7.
i3, Radeon integrated graphics, 4GB memory, 512gB Generic SATAII, Win8.1.
Q6600, Intel integrated graphics, 2GB memory, 180GB Generic SATAII, WinXP.
Dagger_Valley
8
Years of Service
User Offline
Joined: 1st Dec 2015
Location:
Posted: 13th Apr 2016 08:19
Thanks Belidos, will study that vid over.
Dagger_Valley
8
Years of Service
User Offline
Joined: 1st Dec 2015
Location:
Posted: 13th Apr 2016 19:04
Quote: "This should tell you how to unwrap and bake the model textures into a texture file. Then when you import them into gameguru you need to tell it to look for the texture. If using the built in importer then just click the texture box in the creator and add the texture file there. If importing manually you need to edit the models .fpe and change the line textured = to textured = nameoftexture.format so for example if you have a texture called mytexture.png then the line would read textured = mytexture.png"


Thank you for all you help. I added the texture as described in the first few minutes of the video you provided (The rest went into more detail that I don't think applies to me right now since my model is only 2 solid colour as opposed to the many colour in the videos example).

However, when I went to "Import Model" in GG, there is no texture folder to add it to. Do I make my own texture folder?

Also, do other model engines such as Blender provide an easier way to allow the colour of models to be imported to GG?

Sorry for all the questions, I am coming so close to being able to create my own complete game and the only thing stopping me at the moment is not understanding how to import the colour of my model.
Belidos
3D Media Maker
8
Years of Service
User Offline
Joined: 23rd Nov 2015
Playing: The Game
Posted: 13th Apr 2016 22:21 Edited at: 13th Apr 2016 22:21
Once you have created the texture in wings 3d and saved it, go to gameguru and:

1. File -> import
2. Choose your file to import
3. Adjust the settings on the right hand side to your preference

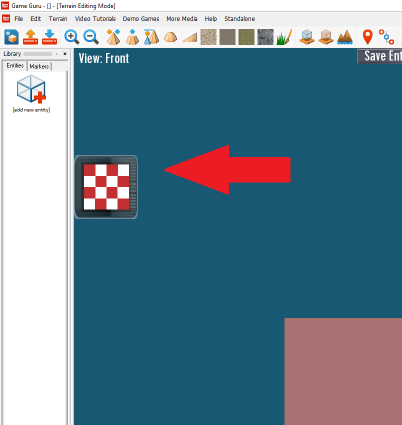

4. Click where the arrow points to in the picture below and select your texture
5. Click Save, choose where you want the model to be saved, choose a name, and click ok



i7, NV960 4GB, 16GB memory, 2x 4TB Hybrid, Win10.
i5 , AMD 6770 1GB, 8GB memory, 512GB Generic SATAIII + 2TB Seagate Baracuda SATAIII, Win7.
i3, Radeon integrated graphics, 4GB memory, 512gB Generic SATAII, Win8.1.
Q6600, Intel integrated graphics, 2GB memory, 180GB Generic SATAII, WinXP.

Attachments

Login to view attachments
Dagger_Valley
8
Years of Service
User Offline
Joined: 1st Dec 2015
Location:
Posted: 14th Apr 2016 08:42 Edited at: 14th Apr 2016 08:48
Thanks, Belidos!

Looks like that part all worked!

EDIT - Nevermind, I had another issue but I figured the other problem out!

Thank you guys so much!!!!!
