3rd Party Models/Media Chat / Normal maps

Author
Message
Gtox
3D Media Maker
10
Years of Service
User Offline
Joined: 5th Jun 2014
Location: South Africa
Profile
Posted: 24th Dec 2014 21:04
Link

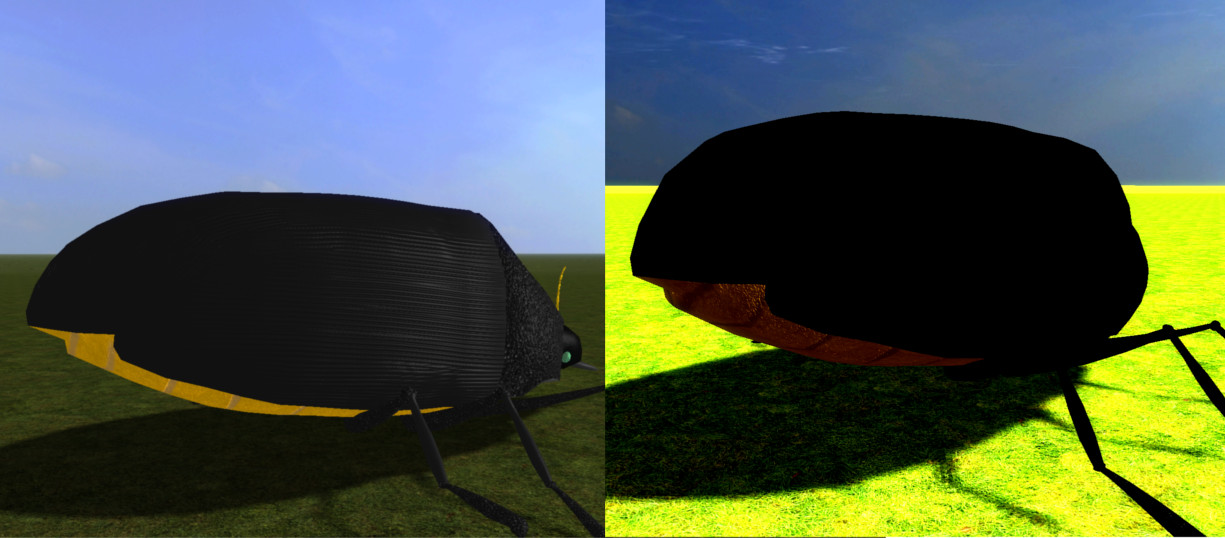

After playing around with ambience and surface levels, as per Lee's suggestion, I got normal maps to display, but when I tried an entity I'm working on, I noticed that the black surface doesn't display the normal map at all. The image on the left is from v1.0085, the right hand image is from v1.009. The underside of the abdomen shows some detail, so I know that something is working - just not on the black surface. If anyone has figured out a combination of sliders that gets the normal maps to display correctly, I love to know what they are.

Attachments

Login to view attachments
PM Email
Errant AI
Forum Support
18
Years of Service
User Offline
Joined: 24th Aug 2006
Location: [REDACTED]
Profile
Posted: 24th Dec 2014 22:50
Link
What does your normal map look like?

Gigabyte P67A-UD4-B3, Intel Core i7 2600K, 16GB Corsair DDR3, EVGA GTX 970 SC, Win7 Pro 64-bit SP1, Primary monitor @ 1920x1080, secondary monitor @ 1024x1280
PM Website
Gtox
3D Media Maker
10
Years of Service
User Offline
Joined: 5th Jun 2014
Location: South Africa
Profile
Posted: 25th Dec 2014 04:53 Edited at: 25th Dec 2014 07:41
Link
Like this. I changed it to jpeg to display in the forum, but it's a DDS file. Ignore the weird banded parts - Substance Painter does that to fill in the gaps between UV elements.

Edit: for what it's worth, the grooves show up clearly in the v1.0085 editor too (when you right click on an entity to bring up it's properties)
