3rd Party Models/Media Chat / How do you get a transparent section on a solid texture?

Author
Message
mguy1122
Game Guru Backer
11
Years of Service
User Offline
Joined: 5th Mar 2013
Playing: witcher 3
Profile
Posted: 22nd Oct 2014 20:30
Link

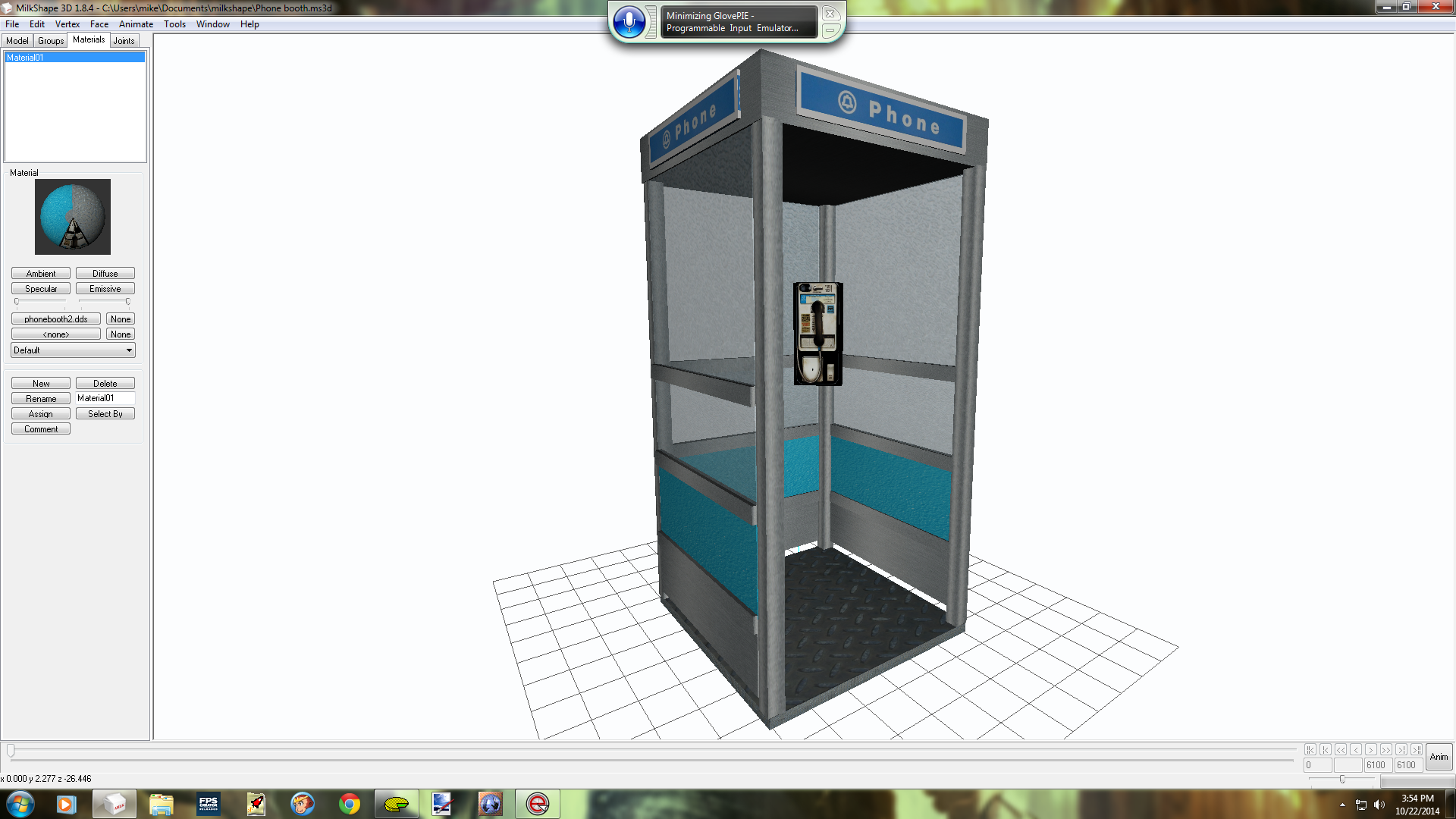

I'm building a phone booth and I want to make the windows clear. I'm trying to do it by just using one texture instead of multiple textures but every time I saved the picture the windows that were transparent go solid. I'm wondering if anyone can tell me how to just make the windows transparent and keep everything else solid. I use paint.net. Thanks

Attachments

Login to view attachments
PM
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 22nd Oct 2014 21:31 Edited at: 22nd Oct 2014 21:33
Link
.dds format with dxt5 compression. you need to mask the window part out with alpha. you will have to play with it to get the right transparency.



You will also need to have the texture size at multiples of 2. 1024 x 1024, 1024 x 512, 2048 x 2048

Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 4gb RAM, Nvidia gtx660, Windows 7 Pro 64bit

PM Email
mguy1122
Game Guru Backer
11
Years of Service
User Offline
Joined: 5th Mar 2013
Playing: witcher 3
Profile
Posted: 22nd Oct 2014 21:56
Link
Thanks pirate myke! I change the resolution and I saved it with dxt5 compression and that seemed to do the trick. I had no idea the resolution would affect something like that. Maybe that's why my skyboxes never worked...

Attachments

Login to view attachments
PM
Pirate Myke
Forum Support
14
Years of Service
User Offline
Joined: 31st May 2010
Location: El Dorado, California
Profile
Posted: 22nd Oct 2014 23:48
Link
you are welcome, Yes direct x textures need to be that way. You can check the skybox sizes and see fi the are a multiple of 2. I believe that if it is not then the exporter ignores the compression. Anyway glad it is working for you.

Intel(R) Core(TM)2 Quad CPU Q6600 @ 2.40GHz, 2400 Mhz, 4 Core(s), 4 Logical Processor(s), 4gb RAM, Nvidia gtx660, Windows 7 Pro 64bit

PM Email
